SDO HMI 2014-11-30 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 331.78 | 1582.51 | 191.39 | 913.68 | -19.72 | 83.47 | -22.93 | 134.44 | 0.5109 | 391.2 | 73.7 | |
|
previous
or next observation for the same group /

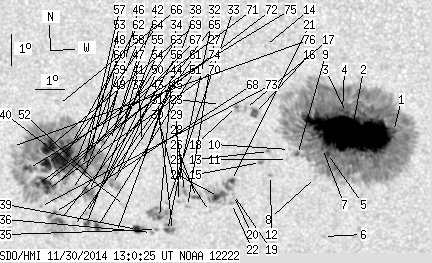

back to the solar disc SDO HMI 2014-11-30 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 941.51 | 0.38 | 525.74 | -19.07 | 88.77 | -17.62 | 140.08 | 0.4477 | 1257.5 | 376.0 | |
| 195.21 | -1.00 | 108.95 | -1.00 | -19.14 | 87.38 | -19.01 | 138.10 | 0.4628 | 1381.4 | 999999 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -18.48 | 87.30 | -19.10 | 136.94 | 0.4565 | 1202.3 | 999999 | |
| 1.11 | -1.00 | 0.62 | -1.00 | -18.42 | 87.17 | -19.22 | 136.66 | 0.4571 | 1221.6 | 999999 | |
| 2.31 | -1.00 | 1.30 | -1.00 | -19.78 | 86.50 | -19.89 | 137.81 | 0.4788 | 564.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -22.43 | 85.99 | -20.41 | 140.87 | 0.5128 | 662.0 | 505.7 | |
| 1.45 | -1.00 | 0.82 | -1.00 | -19.62 | 86.36 | -20.04 | 137.38 | 0.4786 | 612.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.54 | 86.00 | -20.40 | 138.25 | 0.4922 | -193.0 | -91.9 | |
| 1.11 | -1.00 | 0.63 | -1.00 | -19.82 | 85.49 | -20.90 | 136.50 | 0.4897 | 644.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -19.66 | 85.24 | -21.15 | 135.95 | 0.4907 | 498.0 | 360.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -19.98 | 85.13 | -21.26 | 136.28 | 0.4952 | 474.0 | 318.6 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -20.49 | 84.48 | -21.92 | 136.20 | 0.5072 | -497.0 | -403.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -19.73 | 84.52 | -21.87 | 135.13 | 0.4991 | 761.0 | 567.7 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -16.41 | 84.86 | -21.53 | 130.20 | 0.4629 | -3.0 | -40.8 | |
| 0.34 | 2.05 | 0.20 | 1.18 | -20.08 | 84.20 | -22.19 | 135.25 | 0.5060 | 771.5 | 658.6 | |
| 3.68 | 5.98 | 2.09 | 3.40 | -18.53 | 84.22 | -22.17 | 132.91 | 0.4906 | 905.9 | 633.5 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -18.38 | 83.94 | -22.46 | 132.32 | 0.4922 | 747.0 | 508.8 | |
| 0.51 | 3.50 | 0.29 | 2.00 | -18.32 | 83.64 | -22.75 | 131.86 | 0.4950 | 775.0 | 507.4 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -21.10 | 83.11 | -23.28 | 135.44 | 0.5277 | 669.0 | 502.0 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -21.13 | 83.11 | -23.29 | 135.48 | 0.5280 | 592.0 | 352.4 | |
| 2.05 | 37.52 | 1.19 | 21.90 | -20.66 | 83.12 | -23.28 | 134.80 | 0.5232 | 997.9 | 570.6 | |
| 0.00 | 2.14 | 0.00 | 1.25 | -21.39 | 82.99 | -23.40 | 135.71 | 0.5317 | 394.0 | 234.0 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -18.26 | 83.11 | -23.28 | 131.14 | 0.5005 | 551.0 | 514.7 | |
| 6.32 | -21.00 | 3.70 | -21.00 | -21.17 | 82.58 | -23.81 | 134.92 | 0.5339 | 929.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -21.65 | 82.18 | -24.21 | 135.15 | 0.5427 | -566.0 | -483.1 | |
| 1.45 | 4.87 | 0.86 | 2.87 | -21.21 | 81.81 | -24.59 | 134.11 | 0.5423 | 803.1 | 657.7 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -21.50 | 81.44 | -24.95 | 134.12 | 0.5489 | 573.0 | 388.7 | |
| 0.00 | 3.68 | 0.00 | 2.17 | -21.02 | 81.42 | -24.97 | 133.42 | 0.5447 | 816.0 | 604.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -21.34 | 81.16 | -25.24 | 133.58 | 0.5505 | 620.0 | 457.7 | |
| 0.00 | 2.82 | 0.00 | 1.66 | -20.80 | 81.15 | -25.25 | 132.80 | 0.5456 | 103.0 | 99.7 | |
| 0.68 | 39.06 | 0.41 | 23.35 | -22.27 | 80.76 | -25.63 | 134.47 | 0.5632 | -842.2 | -422.6 | |
| 1.62 | -31.00 | 0.97 | -31.00 | -22.27 | 80.59 | -25.81 | 134.29 | 0.5650 | -769.3 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.32 | -21.40 | 80.76 | -25.64 | 133.26 | 0.5553 | 518.0 | 406.8 | |
| 1.45 | -31.00 | 0.87 | -31.00 | -21.86 | 80.38 | -26.01 | 133.50 | 0.5633 | -956.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -22.24 | 80.20 | -26.20 | 133.85 | 0.5688 | -791.0 | -707.3 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -22.34 | 80.00 | -26.39 | 133.78 | 0.5717 | -675.0 | -512.9 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -19.50 | 80.23 | -26.17 | 129.94 | 0.5444 | 526.0 | 458.6 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -20.26 | 80.02 | -26.38 | 130.86 | 0.5532 | 447.0 | 333.2 | |
| 4.79 | 8.63 | 2.89 | 5.22 | -22.25 | 79.52 | -26.88 | 133.17 | 0.5759 | -801.4 | -645.1 | |
| 0.00 | 2.82 | 0.00 | 1.70 | -21.48 | 79.21 | -27.18 | 131.80 | 0.5725 | 29.0 | 113.6 | |
| 0.00 | 1.88 | 0.00 | 1.11 | -19.03 | 79.61 | -26.79 | 128.62 | 0.5474 | -932.0 | -820.4 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -18.75 | 79.52 | -26.88 | 128.10 | 0.5462 | -782.0 | -709.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -20.52 | 79.12 | -27.28 | 130.35 | 0.5653 | -859.0 | -686.8 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -22.35 | 78.74 | -27.65 | 132.55 | 0.5849 | -708.0 | -602.5 | |
| 0.51 | 9.23 | 0.31 | 5.55 | -20.81 | 78.88 | -27.51 | 130.54 | 0.5703 | -919.8 | -617.5 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -18.50 | 79.32 | -27.08 | 127.52 | 0.5465 | -828.0 | -698.2 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -19.42 | 79.12 | -27.28 | 128.72 | 0.5562 | -838.0 | -691.7 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -18.88 | 79.04 | -27.36 | 127.84 | 0.5527 | -677.0 | -512.9 | |
| 0.60 | 2.31 | 0.36 | 1.38 | -19.45 | 78.86 | -27.53 | 128.53 | 0.5593 | -949.7 | -824.0 | |
| 0.00 | 2.65 | 0.00 | 1.60 | -20.78 | 78.60 | -27.79 | 130.23 | 0.5732 | -761.0 | -616.9 | |
| 3.08 | 7.35 | 1.88 | 4.50 | -22.16 | 78.10 | -28.30 | 131.68 | 0.5901 | -797.7 | -723.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -20.75 | 78.36 | -28.04 | 129.95 | 0.5756 | -865.0 | -702.0 | |
| 4.02 | 407.17 | 2.41 | 248.09 | -19.80 | 78.33 | -28.06 | 128.55 | 0.5682 | -1135.0 | -444.8 | |
| 4.62 | 14.61 | 2.81 | 8.89 | -21.04 | 78.01 | -28.38 | 130.04 | 0.5818 | -942.6 | -665.9 | |
| 2.31 | 5.30 | 1.42 | 3.26 | -22.07 | 77.72 | -28.68 | 131.20 | 0.5934 | -807.4 | -508.0 | |
| 0.00 | 2.14 | 0.00 | 1.31 | -21.75 | 77.79 | -28.61 | 130.82 | 0.5900 | -834.0 | -748.8 | |
| 1.45 | -53.00 | 0.88 | -53.00 | -19.96 | 78.12 | -28.27 | 128.59 | 0.5718 | -1064.8 | 999999 | |
| 2.14 | -53.00 | 1.29 | -53.00 | -20.41 | 78.00 | -28.40 | 129.12 | 0.5768 | -939.6 | 999999 | |
| 1.11 | -53.00 | 0.67 | -53.00 | -20.25 | 77.92 | -28.47 | 128.83 | 0.5763 | -1006.7 | 999999 | |
| 6.84 | -53.00 | 4.14 | -53.00 | -20.09 | 77.74 | -28.66 | 128.43 | 0.5771 | -1104.1 | 999999 | |
| 0.00 | 3.25 | 0.00 | 2.01 | -22.17 | 77.22 | -29.18 | 130.89 | 0.5995 | -668.0 | -470.0 | |
| 1.11 | -53.00 | 0.67 | -53.00 | -19.52 | 77.71 | -28.69 | 127.57 | 0.5730 | -1353.6 | 999999 | |
| 0.00 | 9.23 | 0.00 | 5.64 | -20.98 | 77.41 | -28.99 | 129.41 | 0.5879 | -274.0 | -322.6 | |
| 35.30 | -53.00 | 21.44 | -53.00 | -19.97 | 77.30 | -29.10 | 127.86 | 0.5811 | -1064.2 | 999999 | |
| 3.42 | 28.03 | 2.12 | 17.41 | -21.98 | 76.75 | -29.65 | 130.21 | 0.6030 | -821.5 | -231.1 | |
| 0.00 | 0.34 | 0.00 | 0.21 | -18.30 | 77.48 | -28.92 | 125.54 | 0.5664 | 245.0 | 213.0 | |
| 1.11 | -53.00 | 0.68 | -53.00 | -20.89 | 76.81 | -29.58 | 128.76 | 0.5937 | -760.8 | 999999 | |
| 1.03 | -65.00 | 0.64 | -65.00 | -21.72 | 76.62 | -29.77 | 129.75 | 0.6023 | -846.1 | 999999 | |
| 13.67 | -53.00 | 8.32 | -53.00 | -19.65 | 76.86 | -29.54 | 127.02 | 0.5837 | -1009.3 | 999999 | |
| 3.59 | -53.00 | 2.21 | -53.00 | -20.99 | 76.53 | -29.86 | 128.65 | 0.5975 | -721.7 | 999999 | |
| 7.69 | -53.00 | 4.71 | -53.00 | -20.16 | 76.68 | -29.72 | 127.60 | 0.5896 | -823.2 | 999999 | |
| 7.09 | -53.00 | 4.37 | -53.00 | -20.77 | 76.51 | -29.88 | 128.32 | 0.5961 | -876.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -21.54 | 76.15 | -30.24 | 129.09 | 0.6059 | -498.0 | -329.3 | |
| 2.05 | -53.00 | 1.27 | -53.00 | -20.83 | 76.20 | -30.19 | 128.15 | 0.6000 | -530.1 | 999999 | |
| 4.02 | -53.00 | 2.48 | -53.00 | -20.33 | 75.99 | -30.41 | 127.25 | 0.5986 | -694.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -19.63 | 75.55 | -30.84 | 125.90 | 0.5984 | -15.0 | -59.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
