SDO HMI 2014-11-30 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.99 | 439.96 | 34.62 | 227.44 | 16.62 | 110.32 | 5.57 | 340.98 | 0.2872 | -1132.3 | -389.1 | |
|
previous
or next observation for the same group /

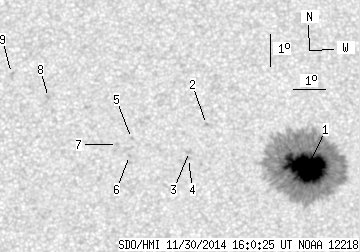

back to the solar disc SDO HMI 2014-11-30 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.99 | 427.98 | 34.62 | 221.24 | 16.59 | 110.46 | 5.71 | 340.50 | 0.2871 | -1584.9 | -424.0 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 17.92 | 107.35 | 2.61 | 351.55 | 0.2962 | 836.0 | 657.2 | |
| 0.00 | 2.65 | 0.00 | 1.37 | 17.09 | 106.81 | 2.07 | 352.91 | 0.2811 | 897.0 | 703.3 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 16.87 | 106.78 | 2.04 | 352.93 | 0.2775 | 917.0 | 716.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.49 | 105.02 | 0.28 | 359.07 | 0.2858 | 702.0 | 571.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.96 | 104.96 | 0.21 | 359.26 | 0.2770 | 974.0 | 748.5 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 17.30 | 104.59 | -0.16 | 0.53 | 0.2827 | 793.0 | 682.6 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 18.76 | 102.44 | -2.31 | 7.12 | 0.3094 | 798.0 | 600.8 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 19.51 | 101.26 | -3.48 | 10.20 | 0.3247 | 694.0 | 578.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
