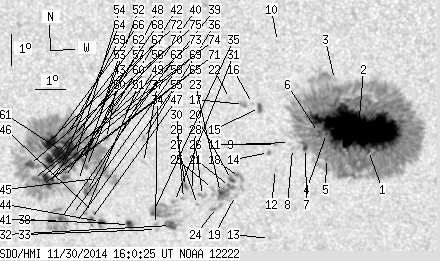

SDO HMI 2014-11-30 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 332.65 | 1564.89 | 189.45 | 893.59 | -19.73 | 83.29 | -21.45 | 136.35 | 0.4954 | 472.8 | 62.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 918.84 | 0.14 | 508.15 | -19.83 | 87.63 | -17.11 | 142.00 | 0.4515 | 764.0 | 384.8 | |
| 205.83 | -1.00 | 113.79 | -1.00 | -19.14 | 87.38 | -17.36 | 140.57 | 0.4459 | 1495.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -17.61 | 86.76 | -17.98 | 137.18 | 0.4349 | 284.0 | 294.2 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -19.30 | 86.31 | -18.44 | 139.18 | 0.4585 | 866.3 | 999999 | |
| 0.68 | -1.00 | 0.38 | -1.00 | -20.09 | 86.21 | -18.53 | 140.21 | 0.4684 | 443.2 | 999999 | |
| 0.68 | -1.00 | 0.38 | -1.00 | -19.27 | 86.05 | -18.70 | 138.75 | 0.4608 | 693.0 | 999999 | |
| 1.79 | -1.00 | 1.01 | -1.00 | -19.78 | 85.55 | -19.19 | 138.79 | 0.4715 | 620.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -19.78 | 85.12 | -19.62 | 138.18 | 0.4760 | -174.0 | -141.2 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -19.59 | 85.04 | -19.70 | 137.79 | 0.4747 | 79.0 | 182.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -16.43 | 85.02 | -19.72 | 132.63 | 0.4419 | -590.0 | -445.6 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -19.66 | 84.57 | -20.18 | 137.23 | 0.4804 | 761.0 | 623.4 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -20.45 | 84.46 | -20.28 | 138.26 | 0.4899 | -388.0 | -414.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -22.66 | 83.92 | -20.82 | 140.63 | 0.5192 | 702.0 | 557.1 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -19.91 | 84.30 | -20.45 | 137.25 | 0.4859 | 821.0 | 695.2 | |
| 2.14 | 4.27 | 1.20 | 2.40 | -18.50 | 84.19 | -20.56 | 134.92 | 0.4723 | 969.4 | 733.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -18.37 | 83.97 | -20.78 | 134.43 | 0.4734 | 750.0 | 532.2 | |
| 0.00 | 4.78 | 0.00 | 2.69 | -18.40 | 83.66 | -21.08 | 134.08 | 0.4771 | 664.0 | 558.3 | |
| 0.00 | 5.30 | 0.00 | 3.04 | -20.71 | 83.20 | -21.54 | 136.99 | 0.5056 | 889.0 | 849.2 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -21.29 | 82.98 | -21.77 | 137.53 | 0.5138 | 523.0 | 428.6 | |
| 1.54 | 28.28 | 0.88 | 16.31 | -20.78 | 82.92 | -21.82 | 136.73 | 0.5092 | 982.9 | 548.2 | |
| 1.71 | -20.00 | 0.98 | -20.00 | -21.00 | 82.82 | -21.93 | 136.92 | 0.5125 | 882.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -18.22 | 83.22 | -21.53 | 133.21 | 0.4802 | 704.0 | 549.0 | |
| 2.56 | -20.00 | 1.48 | -20.00 | -21.19 | 82.48 | -22.26 | 136.78 | 0.5180 | 990.2 | 999999 | |
| 0.00 | 4.70 | 0.00 | 2.73 | -21.68 | 82.26 | -22.48 | 137.20 | 0.5251 | -387.0 | -381.9 | |
| 0.00 | 2.48 | 0.00 | 1.43 | -21.07 | 82.23 | -22.52 | 136.29 | 0.5193 | 96.0 | 153.7 | |
| 0.00 | 3.33 | 0.00 | 1.94 | -21.29 | 81.84 | -22.90 | 136.16 | 0.5255 | 816.0 | 674.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -21.58 | 81.62 | -23.12 | 136.30 | 0.5307 | 593.0 | 434.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -21.23 | 81.48 | -23.27 | 135.63 | 0.5287 | 625.0 | 505.0 | |
| 0.85 | 2.39 | 0.50 | 1.39 | -21.01 | 81.31 | -23.44 | 135.12 | 0.5283 | 834.4 | 648.0 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -21.39 | 81.17 | -23.57 | 135.51 | 0.5335 | 643.0 | 519.9 | |
| 0.00 | 2.14 | 0.00 | 1.25 | -21.49 | 80.84 | -23.90 | 135.27 | 0.5379 | 541.0 | 399.1 | |
| 5.55 | 12.90 | 3.28 | 7.62 | -22.26 | 80.56 | -24.18 | 136.03 | 0.5482 | -868.0 | -530.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -22.40 | 80.04 | -24.70 | 135.64 | 0.5547 | -631.0 | -538.5 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -22.24 | 80.04 | -24.70 | 135.41 | 0.5533 | -894.0 | -760.4 | |
| 1.20 | 28.02 | 0.71 | 16.53 | -21.88 | 80.00 | -24.74 | 134.88 | 0.5503 | -832.9 | -414.3 | |
| 0.00 | 2.48 | 0.00 | 1.44 | -19.49 | 80.11 | -24.64 | 131.53 | 0.5271 | 592.0 | 526.0 | |
| 0.00 | 2.05 | 0.00 | 1.20 | -20.26 | 79.98 | -24.76 | 132.53 | 0.5354 | 643.0 | 354.6 | |
| 3.76 | 6.15 | 2.25 | 3.68 | -22.24 | 79.12 | -25.62 | 134.43 | 0.5628 | -896.9 | -665.1 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -18.99 | 79.53 | -25.21 | 130.15 | 0.5291 | -800.0 | -777.0 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -18.81 | 79.50 | -25.25 | 129.82 | 0.5279 | -903.0 | -713.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -22.21 | 78.74 | -26.01 | 133.99 | 0.5665 | -407.0 | -396.3 | |
| 0.00 | 3.50 | 0.00 | 2.04 | -18.62 | 79.18 | -25.57 | 129.20 | 0.5299 | -707.0 | -706.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -19.50 | 78.82 | -25.92 | 130.18 | 0.5415 | -1061.0 | -964.5 | |
| 1.37 | 6.24 | 0.82 | 3.76 | -22.15 | 78.11 | -26.64 | 133.27 | 0.5725 | -942.9 | -711.9 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -20.78 | 78.24 | -26.51 | 131.46 | 0.5590 | -877.0 | -770.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -21.86 | 77.91 | -26.83 | 132.68 | 0.5720 | -878.0 | -800.9 | |
| 1.88 | 5.47 | 1.14 | 3.31 | -22.09 | 77.76 | -26.98 | 132.84 | 0.5756 | -925.7 | -628.3 | |
| 5.47 | 443.53 | 3.24 | 266.05 | -19.86 | 78.13 | -26.62 | 130.01 | 0.5523 | -1189.3 | -448.9 | |
| 2.48 | 14.61 | 1.49 | 8.76 | -21.19 | 77.80 | -26.94 | 131.62 | 0.5674 | -900.6 | -748.9 | |
| 1.20 | -48.00 | 0.71 | -48.00 | -20.40 | 77.96 | -26.79 | 130.63 | 0.5588 | -995.9 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.19 | -21.87 | 77.63 | -27.12 | 132.40 | 0.5750 | -797.0 | -689.3 | |
| 0.85 | -48.00 | 0.51 | -48.00 | -20.21 | 77.89 | -26.86 | 130.29 | 0.5580 | -1070.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -20.84 | 77.59 | -27.16 | 130.92 | 0.5667 | -674.0 | -561.3 | |
| 5.30 | -48.00 | 3.16 | -48.00 | -20.05 | 77.63 | -27.11 | 129.81 | 0.5595 | -1161.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -22.22 | 77.19 | -27.55 | 132.47 | 0.5827 | -588.0 | -455.6 | |
| 1.11 | -48.00 | 0.67 | -48.00 | -20.37 | 77.47 | -27.28 | 130.11 | 0.5640 | -811.2 | 999999 | |
| 0.26 | -48.00 | 0.15 | -48.00 | -19.51 | 77.63 | -27.12 | 129.01 | 0.5551 | -1382.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -21.93 | 77.15 | -27.60 | 132.03 | 0.5807 | -776.0 | -648.2 | |
| 1.11 | -48.00 | 0.66 | -48.00 | -19.36 | 77.51 | -27.23 | 128.67 | 0.5551 | -1040.9 | 999999 | |
| 2.82 | -48.00 | 1.70 | -48.00 | -20.75 | 77.10 | -27.64 | 130.32 | 0.5712 | -711.4 | 999999 | |
| 33.49 | -48.00 | 20.04 | -48.00 | -19.96 | 77.22 | -27.52 | 129.28 | 0.5633 | -1119.5 | 999999 | |
| 2.99 | -48.00 | 1.78 | -48.00 | -19.45 | 77.32 | -27.42 | 128.62 | 0.5581 | -1074.0 | 999999 | |
| 1.54 | 31.36 | 0.94 | 19.19 | -22.07 | 76.69 | -28.06 | 131.77 | 0.5867 | -864.3 | -279.1 | |
| 0.60 | -48.00 | 0.36 | -48.00 | -20.40 | 77.03 | -27.71 | 129.75 | 0.5691 | -681.3 | 999999 | |
| 1.54 | -48.00 | 0.93 | -48.00 | -20.82 | 76.63 | -28.12 | 129.97 | 0.5770 | -982.9 | 999999 | |
| 11.71 | -48.00 | 7.02 | -48.00 | -19.64 | 76.82 | -27.92 | 128.44 | 0.5653 | -1056.5 | 999999 | |
| 7.60 | -48.00 | 4.58 | -48.00 | -20.22 | 76.71 | -28.03 | 129.18 | 0.5711 | -877.6 | 999999 | |
| 3.25 | -48.00 | 1.97 | -48.00 | -20.98 | 76.48 | -28.26 | 130.06 | 0.5799 | -778.9 | 999999 | |
| 4.96 | -48.00 | 3.00 | -48.00 | -20.79 | 76.45 | -28.29 | 129.76 | 0.5787 | -919.7 | 999999 | |
| 1.71 | -48.00 | 1.03 | -48.00 | -20.41 | 76.53 | -28.21 | 129.29 | 0.5747 | -674.8 | 999999 | |
| 1.11 | -48.00 | 0.68 | -48.00 | -21.01 | 76.22 | -28.52 | 129.87 | 0.5830 | -399.0 | 999999 | |
| 2.39 | -48.00 | 1.44 | -48.00 | -19.81 | 76.47 | -28.27 | 128.36 | 0.5705 | -619.8 | 999999 | |
| 2.14 | -48.00 | 1.30 | -48.00 | -20.86 | 76.15 | -28.59 | 129.58 | 0.5825 | -564.5 | 999999 | |
| 0.26 | -48.00 | 0.16 | -48.00 | -20.79 | 75.98 | -28.76 | 129.34 | 0.5839 | -300.3 | 999999 | |
| 4.70 | -48.00 | 2.85 | -48.00 | -20.35 | 75.93 | -28.81 | 128.66 | 0.5809 | -720.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
