SDO HMI 2014-11-30 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.90 | 21.53 | 6.54 | 26.44 | -15.03 | 39.81 | -64.93 | 107.01 | 0.9151 | 390.9 | 170.1 | |
|
previous
or next observation for the same group /

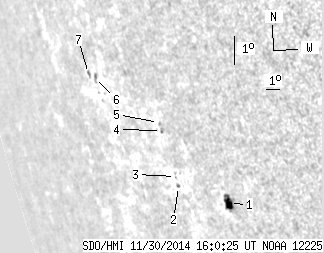

back to the solar disc SDO HMI 2014-11-30 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.90 | 12.05 | 6.54 | 13.36 | -16.42 | 42.86 | -61.89 | 108.94 | 0.8963 | 542.7 | 364.5 | |
| 0.00 | 1.28 | 0.00 | 1.59 | -15.95 | 39.58 | -65.16 | 107.88 | 0.9186 | 383.0 | 316.6 | |
| 0.00 | 0.85 | 0.00 | 1.06 | -15.64 | 39.55 | -65.19 | 107.54 | 0.9185 | 391.0 | 335.5 | |
| 0.00 | 1.71 | 0.00 | 2.12 | -14.23 | 39.34 | -65.40 | 105.99 | 0.9185 | 517.0 | 406.0 | |
| 0.00 | 0.60 | 0.00 | 0.74 | -13.99 | 39.26 | -65.49 | 105.71 | 0.9189 | 390.0 | 386.0 | |
| 0.00 | 3.16 | 0.00 | 4.70 | -12.68 | 34.92 | -69.82 | 103.81 | 0.9445 | -312.0 | -238.2 | |
| 0.00 | 1.88 | 0.00 | 2.87 | -12.57 | 34.36 | -70.38 | 103.64 | 0.9475 | -16.0 | 5.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
