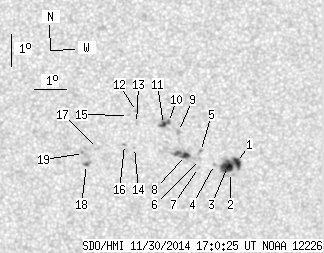

SDO HMI 2014-11-30 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.86 | 56.30 | 11.04 | 29.76 | -18.97 | 108.28 | 4.09 | 191.12 | 0.3496 | 272.7 | 61.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.30 | 19.99 | 2.81 | 10.61 | -19.28 | 109.88 | 5.69 | 195.14 | 0.3599 | 966.6 | 627.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.60 | 109.71 | 5.51 | 194.46 | 0.3641 | 528.0 | 581.0 | |
| 9.91 | -1.00 | 5.26 | -1.00 | -19.41 | 109.60 | 5.41 | 194.34 | 0.3607 | 1050.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.34 | 109.19 | 5.00 | 193.34 | 0.3581 | 688.0 | 535.8 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -18.93 | 108.74 | 4.55 | 192.44 | 0.3499 | -860.0 | -506.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -19.18 | 108.75 | 4.56 | 192.29 | 0.3539 | 705.0 | 451.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.44 | 108.69 | 4.50 | 191.99 | 0.3578 | 616.0 | 517.5 | |
| 2.82 | 10.08 | 1.49 | 5.33 | -19.06 | 108.28 | 4.08 | 191.13 | 0.3503 | 1019.0 | 809.7 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -18.30 | 108.04 | 3.85 | 190.93 | 0.3374 | -699.0 | -376.6 | |
| 0.26 | 7.09 | 0.13 | 3.72 | -18.02 | 107.72 | 3.53 | 190.21 | 0.3319 | -1079.3 | -791.7 | |
| 1.97 | -10.00 | 1.03 | -10.00 | -18.08 | 107.57 | 3.38 | 189.74 | 0.3324 | -1006.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.67 | 106.72 | 2.53 | 187.50 | 0.3237 | 878.0 | 637.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -18.05 | 106.73 | 2.53 | 187.36 | 0.3298 | 833.0 | 548.5 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -18.80 | 106.67 | 2.48 | 186.92 | 0.3420 | -489.0 | -447.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -17.80 | 106.48 | 2.28 | 186.73 | 0.3252 | 745.0 | 609.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.71 | 106.36 | 2.17 | 186.08 | 0.3399 | -651.0 | -561.6 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -18.83 | 105.52 | 1.33 | 183.70 | 0.3408 | -546.0 | -415.8 | |
| 0.60 | 3.33 | 0.32 | 1.76 | -19.33 | 105.18 | 0.99 | 182.68 | 0.3487 | -966.9 | -798.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.99 | 105.08 | 0.89 | 182.47 | 0.3430 | -874.0 | -819.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
