SDO HMI 2014-11-30 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.23 | 440.06 | 40.05 | 228.22 | 16.62 | 110.18 | 7.09 | 336.42 | 0.2971 | -1033.8 | -339.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

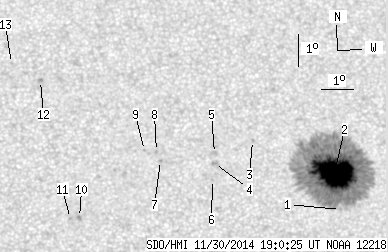

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.57 | 15.47 | 110.55 | 7.46 | 333.48 | 0.2816 | -199.0 | -204.8 | |
| 77.23 | 421.00 | 40.05 | 218.38 | 16.60 | 110.41 | 7.32 | 335.66 | 0.2976 | -1574.5 | -395.9 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 17.60 | 107.89 | 4.80 | 344.43 | 0.2988 | 793.0 | 650.3 | |
| 0.00 | 2.90 | 0.00 | 1.50 | 16.89 | 106.69 | 3.61 | 347.64 | 0.2825 | 977.0 | 800.6 | |
| 0.00 | 3.08 | 0.00 | 1.59 | 17.20 | 106.70 | 3.61 | 347.86 | 0.2875 | 794.0 | 684.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.40 | 106.62 | 3.54 | 347.48 | 0.2741 | 767.0 | 577.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 16.99 | 105.03 | 1.94 | 353.32 | 0.2794 | 1075.0 | 903.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 17.26 | 104.90 | 1.82 | 353.84 | 0.2838 | 833.0 | 722.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 17.29 | 104.53 | 1.45 | 355.10 | 0.2837 | 765.0 | 706.1 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 15.24 | 102.53 | -0.56 | 2.19 | 0.2482 | 969.0 | 868.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 15.21 | 102.25 | -0.84 | 3.27 | 0.2479 | 880.0 | 719.3 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 19.47 | 101.29 | -1.79 | 5.30 | 0.3204 | 853.0 | 727.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 20.00 | 100.38 | -2.71 | 7.75 | 0.3309 | 744.0 | 561.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
