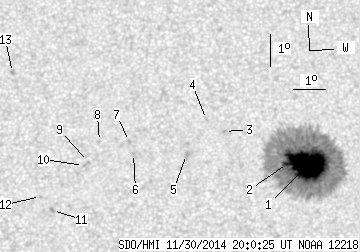

SDO HMI 2014-11-30 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.36 | 431.50 | 33.93 | 224.06 | 16.62 | 110.18 | 7.65 | 334.80 | 0.3008 | -1024.5 | -383.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.10 | 415.54 | 33.80 | 215.81 | 16.60 | 110.41 | 7.88 | 334.05 | 0.3015 | -1632.4 | -432.9 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 16.63 | 109.79 | 7.26 | 335.89 | 0.2976 | -1245.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.62 | 107.87 | 5.33 | 342.85 | 0.3017 | 844.0 | 645.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.99 | 107.32 | 4.78 | 344.86 | 0.3051 | 747.0 | 549.9 | |
| 0.00 | 3.25 | 0.00 | 1.68 | 16.91 | 106.67 | 4.13 | 345.93 | 0.2849 | 893.0 | 785.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.95 | 105.03 | 2.49 | 351.41 | 0.2801 | 1083.0 | 903.5 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 17.32 | 104.91 | 2.38 | 352.01 | 0.2859 | 755.0 | 649.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 17.32 | 103.98 | 1.45 | 355.11 | 0.2842 | 802.0 | 548.5 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 16.70 | 103.63 | 1.10 | 356.12 | 0.2734 | 774.0 | 644.6 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 16.58 | 103.48 | 0.95 | 356.64 | 0.2712 | 813.0 | 612.8 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 15.21 | 102.52 | -0.01 | 0.04 | 0.2475 | 1124.0 | 892.4 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 15.63 | 102.15 | -0.38 | 1.44 | 0.2548 | 744.0 | 579.6 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 19.46 | 101.27 | -1.26 | 3.73 | 0.3196 | 947.0 | 748.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
