SDO HMI 2014-11-30 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.37 | 308.15 | 67.42 | 303.45 | 3.46 | 162.29 | 59.76 | 273.49 | 0.8652 | -246.7 | -155.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

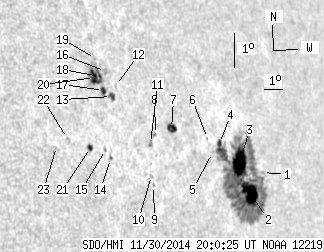

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 1.36 | 3.13 | 164.64 | 62.10 | 273.04 | 0.8857 | 333.0 | 280.3 | |
| 19.73 | 246.30 | 20.33 | 250.72 | 2.52 | 163.82 | 61.29 | 272.35 | 0.8789 | -664.3 | -241.5 | |
| 28.45 | -2.00 | 28.80 | -2.00 | 3.44 | 163.23 | 60.70 | 273.42 | 0.8741 | -676.0 | 999999 | |
| 1.88 | -2.00 | 1.84 | -2.00 | 4.02 | 162.10 | 59.57 | 274.11 | 0.8644 | -613.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.74 | 3.76 | 161.66 | 59.13 | 273.82 | 0.8604 | -544.0 | -431.0 | |
| 0.00 | 0.85 | 0.00 | 0.82 | 4.18 | 161.42 | 58.89 | 274.31 | 0.8584 | -617.0 | -543.6 | |
| 5.47 | 7.86 | 4.97 | 7.14 | 4.51 | 159.44 | 56.90 | 274.76 | 0.8402 | 504.0 | 178.3 | |
| 0.00 | 1.11 | 0.00 | 0.98 | 4.34 | 158.55 | 56.02 | 274.60 | 0.8317 | 310.0 | 309.3 | |
| 0.00 | 0.94 | 0.00 | 0.83 | 2.83 | 158.30 | 55.77 | 272.78 | 0.8289 | 394.0 | 345.5 | |
| 0.00 | 1.28 | 0.00 | 1.13 | 3.13 | 158.22 | 55.69 | 273.14 | 0.8282 | 449.0 | 315.8 | |
| 0.00 | 2.65 | 0.00 | 2.33 | 4.08 | 158.26 | 55.72 | 274.29 | 0.8287 | 482.0 | 373.8 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 5.82 | 156.66 | 54.12 | 276.50 | 0.8136 | 159.0 | 82.1 | |
| 1.88 | 4.02 | 1.58 | 3.38 | 5.50 | 156.41 | 53.87 | 276.12 | 0.8109 | 487.6 | 361.9 | |
| 0.00 | 1.28 | 0.00 | 1.07 | 3.66 | 156.15 | 53.62 | 273.85 | 0.8075 | 498.0 | 417.9 | |
| 0.00 | 1.20 | 0.00 | 0.99 | 3.93 | 155.93 | 53.39 | 274.20 | 0.8053 | 590.0 | 464.6 | |
| 0.00 | 2.90 | 0.00 | 2.44 | 6.25 | 156.21 | 53.68 | 277.05 | 0.8093 | -168.0 | -175.2 | |
| 2.31 | 29.64 | 1.92 | 24.57 | 5.68 | 156.03 | 53.50 | 276.37 | 0.8071 | 663.4 | 447.2 | |
| 0.68 | -17.00 | 0.57 | -17.00 | 6.10 | 155.89 | 53.35 | 276.90 | 0.8059 | 414.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.57 | 6.64 | 155.77 | 53.24 | 277.57 | 0.8050 | 512.0 | 427.2 | |
| 7.18 | -17.00 | 5.94 | -17.00 | 6.08 | 155.63 | 53.10 | 276.88 | 0.8032 | 832.0 | 999999 | |
| 1.79 | 3.08 | 1.47 | 2.51 | 4.00 | 155.19 | 52.66 | 274.31 | 0.7976 | 678.1 | 540.7 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 4.28 | 154.10 | 51.57 | 274.72 | 0.7861 | 466.0 | 374.2 | |
| 0.00 | 0.60 | 0.00 | 0.47 | 4.05 | 153.55 | 51.02 | 274.45 | 0.7801 | 429.0 | 335.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
