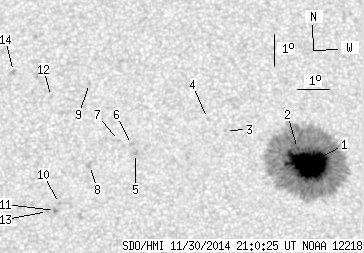

SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.02 | 444.78 | 37.45 | 231.25 | 16.65 | 110.12 | 8.14 | 333.49 | 0.3052 | -990.4 | -355.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.08 | 427.17 | 36.96 | 222.17 | 16.62 | 110.39 | 8.41 | 332.62 | 0.3059 | -1584.4 | -406.0 | |
| 0.94 | -1.00 | 0.49 | -1.00 | 17.08 | 110.06 | 8.08 | 334.21 | 0.3103 | -834.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.64 | 107.84 | 5.86 | 341.30 | 0.3049 | 772.0 | 632.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 18.02 | 107.29 | 5.31 | 343.32 | 0.3080 | 629.0 | 430.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 16.94 | 105.03 | 3.05 | 349.55 | 0.2816 | 1065.0 | 868.5 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 17.22 | 104.91 | 2.93 | 350.12 | 0.2858 | 719.0 | 643.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 17.34 | 104.51 | 2.53 | 351.52 | 0.2868 | 784.0 | 620.8 | |
| 0.00 | 3.42 | 0.00 | 1.76 | 16.58 | 103.60 | 1.62 | 354.25 | 0.2721 | 772.0 | 668.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 19.11 | 103.63 | 1.65 | 355.02 | 0.3144 | 674.0 | 513.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.41 | 102.67 | 0.69 | 357.33 | 0.2514 | 828.0 | 625.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 15.20 | 102.55 | 0.57 | 357.78 | 0.2477 | 1135.0 | 899.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.71 | 102.44 | 0.46 | 358.58 | 0.3066 | 730.0 | 602.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 15.17 | 102.30 | 0.32 | 358.73 | 0.2470 | 849.0 | 713.2 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 19.49 | 101.25 | -0.73 | 2.16 | 0.3197 | 880.0 | 748.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
