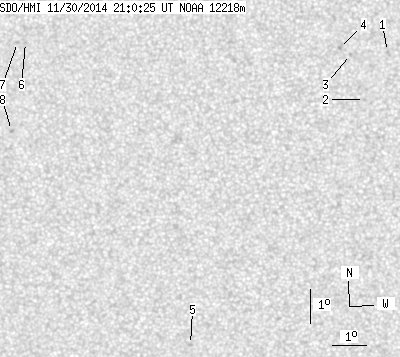

SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.98 | 0.00 | 4.52 | -5.15 | 94.85 | -7.13 | 136.50 | 0.1749 | 223.9 | 122.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.51 | -3.18 | 100.76 | -1.22 | 163.52 | 0.0752 | 887.0 | 718.7 | |
| 0.00 | 0.77 | 0.00 | 0.38 | -4.60 | 100.07 | -1.90 | 161.06 | 0.1026 | 933.0 | 763.1 | |
| 0.00 | 0.77 | 0.00 | 0.38 | -3.27 | 99.67 | -2.31 | 151.19 | 0.0841 | 804.0 | 609.4 | |
| 0.00 | 1.20 | 0.00 | 0.59 | -3.06 | 99.34 | -2.64 | 146.59 | 0.0839 | 894.0 | 783.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -11.94 | 94.76 | -7.22 | 151.09 | 0.2557 | 854.0 | 584.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -2.92 | 89.96 | -12.02 | 107.85 | 0.2194 | -913.0 | -742.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -2.92 | 89.72 | -12.26 | 107.52 | 0.2234 | -802.0 | -585.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -5.53 | 89.49 | -12.49 | 117.56 | 0.2439 | -866.0 | -825.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
