SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.64 | 0.00 | 6.91 | -22.30 | 92.90 | -9.08 | 159.66 | 0.4226 | -556.2 | -425.7 | |
|
previous
or next observation for the same group /

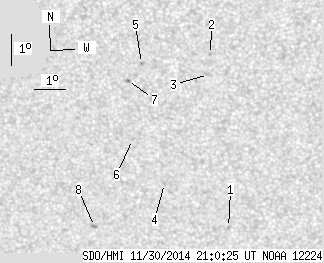

back to the solar disc SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.90 | -25.41 | 94.73 | -7.25 | 165.58 | 0.4600 | 768.0 | 545.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.82 | 94.45 | -7.53 | 160.83 | 0.3768 | -730.0 | -547.5 | |
| 0.00 | 3.16 | 0.00 | 1.70 | -20.46 | 94.36 | -7.62 | 161.18 | 0.3870 | -216.0 | -339.1 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -23.97 | 92.72 | -9.26 | 160.74 | 0.4478 | -786.0 | -588.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -20.11 | 92.24 | -9.74 | 156.14 | 0.3943 | -963.0 | -764.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -22.54 | 91.78 | -10.20 | 157.68 | 0.4323 | -796.0 | -599.2 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -20.65 | 91.76 | -10.22 | 155.70 | 0.4052 | -754.0 | -635.5 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -25.38 | 90.28 | -11.70 | 157.54 | 0.4815 | -973.0 | -764.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
