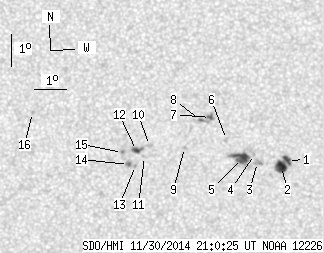

SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.61 | 66.13 | 15.21 | 35.07 | -19.04 | 108.11 | 6.13 | 196.32 | 0.3589 | 181.5 | -65.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.93 | 17.51 | 2.10 | 9.34 | -19.28 | 110.15 | 8.17 | 201.23 | 0.3722 | 976.5 | 658.8 | |
| 9.31 | -1.00 | 4.97 | -1.00 | -19.46 | 109.97 | 7.99 | 200.61 | 0.3740 | 1046.4 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.23 | -19.33 | 109.21 | 7.23 | 198.92 | 0.3678 | 434.0 | 461.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.08 | 109.10 | 7.12 | 198.90 | 0.3634 | 851.0 | 618.3 | |
| 10.08 | 17.60 | 5.36 | 9.35 | -19.21 | 108.70 | 6.72 | 197.79 | 0.3632 | 1154.0 | 725.3 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -18.61 | 108.20 | 6.22 | 197.07 | 0.3515 | -226.0 | -127.8 | |
| 1.45 | 8.03 | 0.76 | 4.22 | -17.92 | 107.68 | 5.70 | 196.30 | 0.3382 | -1112.1 | -763.3 | |
| 0.60 | -7.00 | 0.31 | -7.00 | -18.01 | 107.37 | 5.39 | 195.38 | 0.3383 | -866.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -18.86 | 106.89 | 4.91 | 193.46 | 0.3497 | -755.0 | -557.6 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -18.79 | 105.80 | 3.82 | 190.57 | 0.3449 | -633.0 | -414.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -19.14 | 105.65 | 3.67 | 189.98 | 0.3501 | -755.0 | -563.8 | |
| 2.56 | 5.13 | 1.35 | 2.70 | -18.95 | 105.39 | 3.41 | 189.40 | 0.3463 | -1112.9 | -908.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.42 | 105.37 | 3.39 | 189.11 | 0.3539 | -861.0 | -716.4 | |
| 0.68 | 2.31 | 0.36 | 1.22 | -19.39 | 105.15 | 3.17 | 188.54 | 0.3528 | -1017.8 | -828.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -19.01 | 104.96 | 2.98 | 188.19 | 0.3462 | -936.0 | -839.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.75 | 102.14 | 0.16 | 180.48 | 0.3219 | -931.0 | -678.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
