SDO HMI 2014-11-30 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.59 | 235.93 | 47.20 | 272.33 | -13.68 | 165.00 | 63.57 | 254.35 | 0.9051 | 347.0 | 223.6 | |
|
previous
or next observation for the same group /

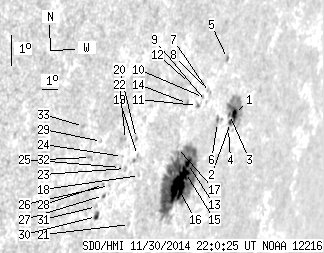

back to the solar disc SDO HMI 2014-11-30 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.93 | 35.80 | 5.01 | 45.57 | -12.18 | 167.78 | 66.35 | 256.35 | 0.9231 | 391.8 | 103.5 | |
| 1.37 | -1.00 | 1.73 | -1.00 | -12.42 | 167.59 | 66.17 | 256.07 | 0.9221 | 523.1 | 999999 | |
| 1.20 | -1.00 | 1.50 | -1.00 | -12.18 | 167.40 | 65.97 | 256.31 | 0.9206 | 628.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.41 | -12.61 | 167.53 | 66.11 | 255.87 | 0.9218 | 416.0 | 372.0 | |
| 0.00 | 1.71 | 0.00 | 2.06 | -10.47 | 166.49 | 65.07 | 258.07 | 0.9132 | -226.0 | -171.7 | |
| 0.00 | 4.36 | 0.00 | 5.31 | -12.41 | 166.62 | 65.19 | 255.97 | 0.9155 | 481.0 | 412.7 | |
| 0.00 | 1.20 | 0.00 | 1.40 | -11.48 | 165.63 | 64.20 | 256.86 | 0.9079 | 300.0 | 158.4 | |
| 0.00 | 1.03 | 0.00 | 1.19 | -11.39 | 165.45 | 64.02 | 256.94 | 0.9065 | 407.0 | 374.5 | |
| 0.00 | 0.85 | 0.00 | 1.00 | -11.75 | 165.54 | 64.11 | 256.55 | 0.9074 | 398.0 | 345.5 | |
| 0.00 | 1.20 | 0.00 | 1.38 | -11.63 | 165.27 | 63.85 | 256.65 | 0.9054 | 553.0 | 494.1 | |
| 0.00 | 2.14 | 0.00 | 2.45 | -11.87 | 164.96 | 63.53 | 256.35 | 0.9034 | 594.0 | 472.5 | |
| 0.00 | 1.20 | 0.00 | 1.33 | -11.19 | 164.15 | 62.72 | 257.00 | 0.8967 | -101.0 | -192.9 | |
| 2.82 | 160.79 | 3.27 | 184.52 | -13.63 | 165.08 | 63.65 | 254.43 | 0.9059 | 307.7 | 313.7 | |
| 0.00 | 1.37 | 0.00 | 1.53 | -11.79 | 164.25 | 62.83 | 256.34 | 0.8981 | 531.0 | 442.2 | |
| 4.96 | -13.00 | 5.75 | -13.00 | -13.91 | 165.08 | 63.65 | 254.13 | 0.9061 | 385.4 | 999999 | |
| 24.18 | -13.00 | 27.82 | -13.00 | -14.33 | 164.74 | 63.31 | 253.61 | 0.9042 | 750.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.24 | -13.13 | 164.16 | 62.74 | 254.85 | 0.8987 | 402.0 | 351.6 | |
| 0.00 | 0.77 | 0.00 | 0.81 | -13.95 | 162.07 | 60.64 | 253.61 | 0.8837 | 614.0 | 515.8 | |
| 0.00 | 1.37 | 0.00 | 1.41 | -13.33 | 161.68 | 60.25 | 254.24 | 0.8798 | -19.0 | 7.5 | |
| 0.00 | 1.03 | 0.00 | 1.05 | -12.81 | 161.41 | 59.98 | 254.78 | 0.8770 | -380.0 | -343.2 | |
| 0.00 | 1.03 | 0.00 | 1.09 | -15.46 | 162.15 | 60.72 | 251.94 | 0.8862 | -136.0 | -182.2 | |
| 0.00 | 1.37 | 0.00 | 1.37 | -12.83 | 160.75 | 59.32 | 254.65 | 0.8716 | -418.0 | -341.7 | |
| 0.00 | 2.14 | 0.00 | 2.17 | -13.72 | 161.11 | 59.68 | 253.70 | 0.8757 | -302.0 | -230.4 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -13.35 | 160.77 | 59.35 | 254.07 | 0.8725 | -602.0 | -604.7 | |
| 0.00 | 1.03 | 0.00 | 1.03 | -13.69 | 160.79 | 59.36 | 253.69 | 0.8731 | -543.0 | -444.4 | |
| 0.00 | 1.03 | 0.00 | 1.02 | -14.23 | 160.36 | 58.93 | 252.99 | 0.8703 | -484.0 | -360.3 | |
| 0.34 | 1.28 | 0.34 | 1.27 | -14.53 | 160.13 | 58.70 | 252.61 | 0.8688 | -550.5 | -482.1 | |
| 0.00 | 0.68 | 0.00 | 0.68 | -14.19 | 159.99 | 58.56 | 252.97 | 0.8671 | -520.0 | -465.0 | |
| 0.00 | 0.68 | 0.00 | 0.66 | -12.87 | 159.36 | 57.93 | 254.37 | 0.8599 | -469.0 | -415.1 | |
| 1.79 | 3.93 | 1.78 | 3.90 | -15.17 | 160.00 | 58.57 | 251.85 | 0.8687 | -574.5 | -497.6 | |
| 0.00 | 1.28 | 0.00 | 1.26 | -14.87 | 159.86 | 58.43 | 252.18 | 0.8671 | -558.0 | -442.1 | |
| 0.00 | 2.73 | 0.00 | 2.61 | -13.35 | 158.90 | 57.48 | 253.73 | 0.8567 | -546.0 | -398.8 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -12.40 | 158.17 | 56.74 | 254.70 | 0.8489 | -128.0 | -111.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
