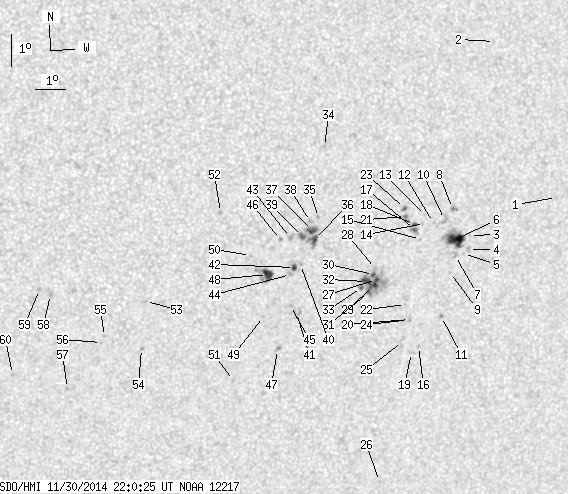

SDO HMI 2014-11-30 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.34 | 192.38 | 29.21 | 109.37 | -16.77 | 125.04 | 23.61 | 231.44 | 0.4920 | 347.9 | 245.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.46 | -14.71 | 131.61 | 30.18 | 241.18 | 0.5572 | 678.0 | 565.7 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -9.95 | 128.89 | 27.47 | 247.63 | 0.4933 | 567.0 | 479.4 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -15.85 | 128.73 | 27.31 | 236.96 | 0.5286 | 285.0 | 258.6 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -16.29 | 128.76 | 27.34 | 236.27 | 0.5321 | 681.0 | 473.8 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -16.41 | 128.61 | 27.18 | 235.93 | 0.5311 | 480.0 | 342.1 | |
| 14.27 | 27.60 | 8.28 | 16.01 | -15.97 | 128.27 | 26.84 | 236.33 | 0.5237 | 959.8 | 402.4 | |
| 0.00 | 2.73 | 0.00 | 1.59 | -16.47 | 128.34 | 26.91 | 235.58 | 0.5283 | 637.0 | 556.2 | |
| 0.34 | 2.22 | 0.20 | 1.28 | -15.02 | 128.03 | 26.60 | 237.73 | 0.5136 | 924.2 | 743.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -17.00 | 128.25 | 26.82 | 234.64 | 0.5312 | 654.0 | 488.2 | |
| 0.00 | 4.87 | 0.00 | 2.81 | -15.35 | 127.80 | 26.38 | 236.95 | 0.5132 | 129.0 | 11.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -18.37 | 128.15 | 26.73 | 232.39 | 0.5410 | 787.0 | 636.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -15.44 | 127.44 | 26.01 | 236.45 | 0.5093 | 226.0 | 148.7 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -15.22 | 127.14 | 25.71 | 236.53 | 0.5038 | -561.0 | -391.5 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -15.47 | 127.14 | 25.71 | 236.11 | 0.5057 | -298.0 | -363.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -15.96 | 127.07 | 25.64 | 235.20 | 0.5087 | -551.0 | -443.0 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -19.30 | 127.51 | 26.08 | 230.31 | 0.5414 | 730.0 | 530.1 | |
| 1.28 | 6.84 | 0.73 | 3.91 | -15.65 | 126.82 | 25.39 | 235.49 | 0.5032 | -868.7 | -624.5 | |
| 1.03 | -17.00 | 0.59 | -17.00 | -15.50 | 126.80 | 25.37 | 235.73 | 0.5017 | -763.5 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.66 | -19.49 | 127.30 | 25.87 | 229.81 | 0.5406 | 660.0 | 537.6 | |
| 0.00 | 1.97 | 0.00 | 1.15 | -18.45 | 127.06 | 25.63 | 231.16 | 0.5289 | -720.0 | -694.3 | |
| 0.51 | 4.70 | 0.29 | 2.68 | -15.25 | 126.46 | 25.03 | 235.82 | 0.4955 | -900.7 | -692.6 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -17.98 | 126.84 | 25.42 | 231.68 | 0.5224 | -866.0 | -642.1 | |
| 0.94 | 2.05 | 0.53 | 1.17 | -15.00 | 126.40 | 24.97 | 236.19 | 0.4928 | -935.5 | -794.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -18.48 | 126.85 | 25.43 | 230.90 | 0.5268 | -737.0 | -609.1 | |
| 0.00 | 3.67 | 0.00 | 2.15 | -19.14 | 126.93 | 25.50 | 229.96 | 0.5333 | 479.0 | 368.3 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -23.62 | 126.95 | 25.52 | 223.64 | 0.5743 | 525.0 | 438.2 | |
| 1.79 | 41.78 | 1.03 | 23.91 | -17.19 | 125.74 | 24.31 | 231.78 | 0.5026 | 861.2 | 477.2 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -16.85 | 125.66 | 24.23 | 232.26 | 0.4987 | 562.0 | 465.6 | |
| 4.44 | -27.00 | 2.54 | -27.00 | -17.38 | 125.66 | 24.23 | 231.39 | 0.5033 | 868.5 | 999999 | |
| 1.11 | -27.00 | 0.63 | -27.00 | -17.03 | 125.61 | 24.19 | 231.90 | 0.4998 | 1015.8 | 999999 | |
| 1.37 | -27.00 | 0.78 | -27.00 | -17.59 | 125.52 | 24.09 | 230.89 | 0.5036 | 696.8 | 999999 | |
| 4.87 | -27.00 | 2.78 | -27.00 | -17.25 | 125.41 | 23.98 | 231.32 | 0.4992 | 1093.4 | 999999 | |
| 0.94 | -27.00 | 0.54 | -27.00 | -17.44 | 125.26 | 23.83 | 230.85 | 0.4991 | 882.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -13.08 | 123.53 | 22.10 | 236.67 | 0.4405 | 632.0 | 486.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -15.25 | 123.55 | 22.12 | 232.62 | 0.4592 | 813.0 | 643.2 | |
| 3.93 | 20.25 | 2.20 | 11.29 | -15.93 | 123.49 | 22.07 | 231.34 | 0.4646 | 886.7 | 748.9 | |
| 3.84 | -36.00 | 2.14 | -36.00 | -15.65 | 123.40 | 21.97 | 231.72 | 0.4609 | 1011.1 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.28 | -15.38 | 123.30 | 21.87 | 232.09 | 0.4572 | 880.0 | 721.0 | |
| 1.79 | -36.00 | 1.00 | -36.00 | -15.84 | 123.09 | 21.66 | 231.01 | 0.4588 | 1017.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -16.70 | 123.12 | 21.69 | 229.55 | 0.4672 | 625.0 | 536.9 | |
| 0.00 | 7.01 | 0.00 | 3.96 | -18.20 | 123.17 | 21.75 | 227.13 | 0.4822 | 627.0 | 510.9 | |
| 2.14 | 3.50 | 1.19 | 1.96 | -16.80 | 122.93 | 21.50 | 229.15 | 0.4659 | 784.5 | 496.4 | |
| 0.00 | 2.39 | 0.00 | 1.33 | -15.86 | 122.69 | 21.27 | 230.47 | 0.4543 | 951.0 | 800.1 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -17.01 | 122.82 | 21.40 | 228.65 | 0.4667 | 937.0 | 719.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -17.98 | 122.94 | 21.52 | 227.20 | 0.4774 | 853.0 | 752.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -15.92 | 122.37 | 20.94 | 229.95 | 0.4509 | 891.0 | 781.3 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -19.36 | 122.69 | 21.26 | 224.70 | 0.4884 | 772.0 | 633.2 | |
| 6.75 | 15.64 | 3.76 | 8.70 | -17.01 | 122.06 | 20.63 | 227.67 | 0.4578 | -865.8 | -405.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -18.32 | 122.09 | 20.66 | 225.54 | 0.4712 | 796.0 | 669.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -16.41 | 121.44 | 20.01 | 227.84 | 0.4447 | 727.0 | 593.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -20.33 | 121.34 | 19.91 | 221.45 | 0.4845 | 606.0 | 490.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -15.08 | 120.33 | 18.90 | 228.68 | 0.4182 | 724.0 | 588.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.82 | 118.15 | 16.73 | 220.50 | 0.4237 | -720.0 | -618.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.29 | 118.17 | 16.74 | 218.24 | 0.4412 | -580.0 | -510.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -18.91 | 116.93 | 15.50 | 216.73 | 0.4246 | -902.0 | -667.8 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -19.10 | 116.85 | 15.42 | 216.31 | 0.4262 | -789.0 | -703.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.55 | 115.88 | 14.45 | 212.58 | 0.4358 | -837.0 | -711.4 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -17.58 | 115.08 | 13.65 | 215.35 | 0.3905 | -855.0 | -708.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -17.43 | 114.72 | 13.29 | 214.89 | 0.3851 | -848.0 | -650.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -20.09 | 114.06 | 12.63 | 209.81 | 0.4149 | -751.0 | -577.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
