SDO HMI 2014-11-30 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.99 | 21.27 | 10.47 | 23.33 | -14.99 | 39.70 | -61.73 | 107.45 | 0.8924 | 339.0 | 142.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

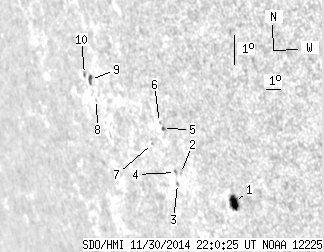

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.03 | 10.68 | 8.03 | 10.68 | -16.38 | 42.86 | -58.57 | 109.52 | 0.8705 | 603.8 | 298.0 | |
| 0.00 | 0.51 | 0.00 | 0.56 | -15.53 | 39.94 | -61.49 | 108.00 | 0.8922 | 399.0 | 313.7 | |
| 0.00 | 1.20 | 0.00 | 1.32 | -15.84 | 39.57 | -61.85 | 108.29 | 0.8953 | 365.0 | 290.1 | |
| 0.00 | 1.62 | 0.00 | 1.78 | -15.50 | 39.62 | -61.80 | 107.92 | 0.8945 | 479.0 | 363.6 | |
| 0.34 | 0.77 | 0.37 | 0.84 | -14.15 | 39.45 | -61.98 | 106.40 | 0.8942 | 537.5 | 523.4 | |
| 0.00 | 0.51 | 0.00 | 0.56 | -13.97 | 39.34 | -62.09 | 106.18 | 0.8948 | 384.0 | 350.3 | |
| 0.00 | 0.68 | 0.00 | 0.78 | -14.63 | 38.55 | -62.88 | 106.78 | 0.9013 | 199.0 | 205.9 | |
| 0.00 | 0.26 | 0.00 | 0.33 | -13.33 | 35.22 | -66.20 | 104.90 | 0.9230 | -282.0 | -327.3 | |
| 1.62 | 3.33 | 2.07 | 4.26 | -12.72 | 35.09 | -66.34 | 104.23 | 0.9234 | -347.2 | -220.6 | |
| 0.00 | 1.71 | 0.00 | 2.22 | -12.58 | 34.71 | -66.72 | 104.03 | 0.9258 | -150.0 | -79.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
