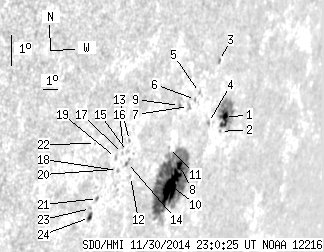

SDO HMI 2014-11-30 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.36 | 218.22 | 49.56 | 257.87 | -13.67 | 165.14 | 64.26 | 254.46 | 0.9099 | 362.1 | 228.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-30 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.60 | 34.95 | 13.77 | 45.58 | -12.20 | 167.70 | 66.82 | 256.40 | 0.9261 | 414.6 | 20.6 | |
| 0.00 | 1.11 | 0.00 | 1.44 | -12.62 | 167.61 | 66.73 | 255.93 | 0.9259 | 404.0 | 351.5 | |
| 0.00 | 2.05 | 0.00 | 2.52 | -10.45 | 166.52 | 65.65 | 258.15 | 0.9171 | -190.0 | -147.3 | |
| 0.00 | 1.62 | 0.00 | 2.02 | -12.33 | 166.55 | 65.67 | 256.12 | 0.9187 | 517.0 | 451.1 | |
| 0.00 | 1.11 | 0.00 | 1.32 | -11.40 | 165.47 | 64.60 | 257.00 | 0.9106 | 434.0 | 364.7 | |
| 0.00 | 1.11 | 0.00 | 1.31 | -11.61 | 165.28 | 64.40 | 256.75 | 0.9094 | 520.0 | 452.9 | |
| 0.00 | 2.82 | 0.00 | 3.28 | -11.82 | 164.88 | 64.00 | 256.47 | 0.9067 | 550.0 | 494.3 | |
| 3.16 | 153.63 | 3.74 | 179.74 | -13.61 | 165.08 | 64.21 | 254.53 | 0.9098 | 324.0 | 314.6 | |
| 0.00 | 2.39 | 0.00 | 2.72 | -11.78 | 164.24 | 63.36 | 256.43 | 0.9020 | 397.0 | 361.2 | |
| 25.46 | -8.00 | 29.90 | -8.00 | -14.25 | 164.85 | 63.97 | 253.80 | 0.9087 | 691.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.78 | -13.05 | 164.12 | 63.24 | 255.01 | 0.9023 | 361.0 | 337.5 | |
| 0.00 | 0.85 | 0.00 | 0.91 | -13.90 | 161.94 | 61.07 | 253.74 | 0.8869 | 585.0 | 522.7 | |
| 0.00 | 0.94 | 0.00 | 0.98 | -12.79 | 161.41 | 60.53 | 254.89 | 0.8814 | -362.0 | -275.3 | |
| 0.00 | 2.65 | 0.00 | 2.78 | -13.47 | 161.56 | 60.69 | 254.16 | 0.8834 | 105.0 | 35.6 | |
| 0.00 | 1.37 | 0.00 | 1.43 | -13.13 | 161.42 | 60.55 | 254.52 | 0.8819 | -295.0 | -240.4 | |
| 0.00 | 0.51 | 0.00 | 0.53 | -13.00 | 161.12 | 60.25 | 254.61 | 0.8793 | -578.0 | -530.0 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -13.19 | 161.13 | 60.26 | 254.41 | 0.8797 | -487.0 | -479.0 | |
| 0.00 | 1.37 | 0.00 | 1.41 | -13.70 | 161.04 | 60.17 | 253.81 | 0.8796 | -300.0 | -266.9 | |
| 0.00 | 1.20 | 0.00 | 1.22 | -13.30 | 160.75 | 59.88 | 254.21 | 0.8767 | -562.0 | -470.8 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -13.67 | 160.78 | 59.91 | 253.81 | 0.8774 | -554.0 | -520.7 | |
| 0.00 | 1.88 | 0.00 | 1.90 | -14.55 | 160.19 | 59.31 | 252.71 | 0.8738 | -634.0 | -498.9 | |
| 0.00 | 0.68 | 0.00 | 0.67 | -12.85 | 159.38 | 58.51 | 254.49 | 0.8648 | -411.0 | -319.8 | |
| 0.00 | 1.11 | 0.00 | 1.11 | -14.85 | 159.90 | 59.02 | 252.31 | 0.8719 | -677.0 | -564.5 | |
| 2.14 | 3.67 | 2.15 | 3.70 | -15.13 | 159.96 | 59.09 | 252.01 | 0.8728 | -577.8 | -467.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
