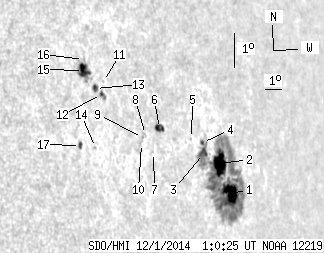

SDO HMI 2014-12-01 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.94 | 261.06 | 64.07 | 283.35 | 3.38 | 162.47 | 62.69 | 273.37 | 0.8898 | -258.9 | -168.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.55 | 222.79 | 17.60 | 248.41 | 2.49 | 163.80 | 64.03 | 272.33 | 0.9008 | -562.7 | -211.9 | |
| 21.62 | -1.00 | 23.92 | -1.00 | 3.39 | 163.16 | 63.38 | 273.34 | 0.8959 | -599.0 | 999999 | |
| 4.96 | -1.00 | 5.29 | -1.00 | 3.70 | 162.15 | 62.37 | 273.70 | 0.8879 | -764.6 | 999999 | |
| 0.94 | -1.00 | 1.00 | -1.00 | 4.03 | 162.13 | 62.35 | 274.07 | 0.8878 | -604.1 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.53 | 4.16 | 161.44 | 61.67 | 274.23 | 0.8823 | -466.0 | -416.0 | |
| 4.53 | 6.49 | 4.46 | 6.39 | 4.48 | 159.53 | 59.75 | 274.66 | 0.8661 | 375.9 | 113.9 | |
| 0.00 | 0.60 | 0.00 | 0.58 | 3.77 | 159.09 | 59.31 | 273.85 | 0.8621 | -480.0 | -417.7 | |
| 0.00 | 0.77 | 0.00 | 0.74 | 4.31 | 158.69 | 58.91 | 274.49 | 0.8587 | 231.0 | 191.8 | |
| 0.00 | 0.94 | 0.00 | 0.90 | 4.23 | 158.50 | 58.73 | 274.39 | 0.8570 | 180.0 | 232.3 | |
| 0.00 | 1.54 | 0.00 | 1.46 | 4.05 | 158.42 | 58.65 | 274.19 | 0.8562 | 405.0 | 262.6 | |
| 0.00 | 0.68 | 0.00 | 0.62 | 5.92 | 156.56 | 56.78 | 276.47 | 0.8397 | 124.0 | 74.6 | |
| 1.03 | 3.67 | 0.93 | 3.32 | 5.53 | 156.39 | 56.61 | 276.03 | 0.8379 | 429.8 | 335.2 | |
| 1.88 | 3.59 | 1.68 | 3.21 | 5.72 | 156.09 | 56.32 | 276.26 | 0.8351 | 549.1 | 340.6 | |
| 0.00 | 0.85 | 0.00 | 0.76 | 3.97 | 155.86 | 56.09 | 274.17 | 0.8323 | 577.0 | 456.8 | |
| 9.23 | 14.87 | 8.15 | 13.14 | 6.26 | 155.53 | 55.76 | 276.95 | 0.8300 | 704.4 | 485.1 | |
| 0.00 | 1.03 | 0.00 | 0.91 | 6.59 | 155.59 | 55.82 | 277.34 | 0.8307 | 363.0 | 368.9 | |
| 1.20 | 2.73 | 1.04 | 2.38 | 4.04 | 155.08 | 55.30 | 274.28 | 0.8246 | 526.5 | 410.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
