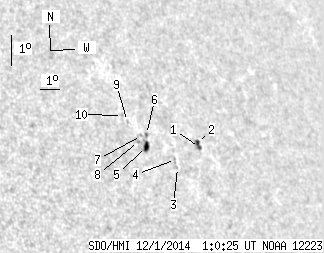

SDO HMI 2014-12-01 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.13 | 17.34 | 4.29 | 14.52 | 15.87 | 152.12 | 52.35 | 289.14 | 0.8082 | -126.5 | -63.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 4.27 | 0.22 | 3.74 | 15.72 | 154.07 | 54.29 | 288.53 | 0.8266 | 646.7 | 482.2 | |
| 1.28 | -1.00 | 1.12 | -1.00 | 15.87 | 154.02 | 54.25 | 288.72 | 0.8264 | 589.1 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.43 | 15.12 | 152.69 | 52.92 | 288.09 | 0.8125 | 401.0 | 315.0 | |
| 0.00 | 1.45 | 0.00 | 1.23 | 15.37 | 152.68 | 52.91 | 288.39 | 0.8128 | 498.0 | 439.8 | |
| 3.59 | 5.90 | 2.95 | 4.85 | 15.78 | 151.37 | 51.60 | 289.19 | 0.8007 | -431.0 | -346.4 | |
| 0.00 | 1.62 | 0.00 | 1.34 | 16.15 | 151.50 | 51.73 | 289.61 | 0.8028 | -333.0 | -238.9 | |
| 0.00 | 0.77 | 0.00 | 0.63 | 16.12 | 151.25 | 51.47 | 289.63 | 0.8002 | -532.0 | -474.9 | |
| 0.00 | 1.20 | 0.00 | 0.98 | 15.94 | 151.03 | 51.26 | 289.46 | 0.7977 | -685.0 | -581.4 | |
| 0.00 | 0.51 | 0.00 | 0.42 | 16.56 | 150.71 | 50.94 | 290.30 | 0.7959 | -468.0 | -414.0 | |
| 0.00 | 1.11 | 0.00 | 0.90 | 16.74 | 150.54 | 50.76 | 290.58 | 0.7945 | -613.0 | -509.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
