SDO HMI 2014-12-01 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.13 | 448.11 | 34.14 | 234.84 | 16.64 | 110.04 | 10.81 | 326.58 | 0.3278 | -1007.8 | -355.7 | |
|
previous
or next observation for the same group /

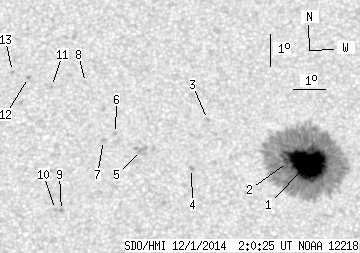

back to the solar disc SDO HMI 2014-12-01 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.87 | 425.53 | 34.01 | 223.13 | 16.60 | 110.36 | 11.13 | 325.67 | 0.3295 | -1599.4 | -420.5 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 16.64 | 109.73 | 10.50 | 327.24 | 0.3242 | -1317.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 17.97 | 107.29 | 8.06 | 335.56 | 0.3240 | 727.0 | 606.4 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 16.46 | 106.72 | 7.50 | 335.00 | 0.2975 | 885.0 | 723.4 | |
| 0.00 | 7.78 | 0.00 | 4.03 | 17.02 | 105.19 | 5.96 | 340.31 | 0.2963 | 916.0 | 749.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.55 | 104.40 | 5.17 | 343.30 | 0.3005 | 731.0 | 551.5 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 17.33 | 104.02 | 4.79 | 344.25 | 0.2953 | 847.0 | 671.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 19.13 | 103.51 | 4.28 | 347.30 | 0.3221 | 689.0 | 552.3 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 15.19 | 102.67 | 3.45 | 346.76 | 0.2547 | 999.0 | 746.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 15.22 | 102.49 | 3.27 | 347.47 | 0.2545 | 961.0 | 722.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.01 | 102.44 | 3.21 | 350.33 | 0.3167 | 911.0 | 648.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 19.29 | 101.72 | 2.50 | 352.57 | 0.3196 | 889.0 | 716.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.48 | 101.22 | 2.00 | 354.11 | 0.3217 | 828.0 | 582.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
