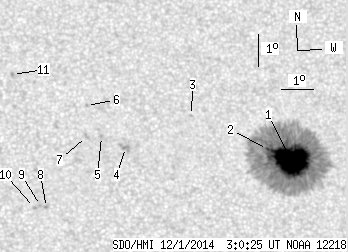

SDO HMI 2014-12-01 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.99 | 438.04 | 34.66 | 230.01 | 16.62 | 110.11 | 11.44 | 325.08 | 0.3333 | -1088.0 | -371.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.73 | 421.28 | 34.53 | 221.32 | 16.59 | 110.37 | 11.70 | 324.35 | 0.3349 | -1597.3 | -422.6 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 16.93 | 109.64 | 10.96 | 326.67 | 0.3325 | -1100.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.99 | 107.31 | 8.63 | 334.12 | 0.3284 | 743.0 | 593.5 | |
| 0.00 | 5.64 | 0.00 | 2.93 | 17.01 | 105.20 | 6.52 | 338.63 | 0.2996 | 1073.0 | 815.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.35 | 104.47 | 5.79 | 341.24 | 0.3007 | 705.0 | 585.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 18.31 | 104.03 | 5.35 | 343.52 | 0.3136 | 849.0 | 728.6 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 17.35 | 104.00 | 5.32 | 342.65 | 0.2983 | 854.0 | 586.1 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 15.18 | 102.71 | 4.03 | 344.63 | 0.2571 | 895.0 | 756.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.24 | 102.53 | 3.85 | 345.35 | 0.2573 | 924.0 | 768.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.18 | 102.34 | 3.66 | 345.97 | 0.2556 | 834.0 | 678.1 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.28 | 101.74 | 3.06 | 350.92 | 0.3209 | 930.0 | 748.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
