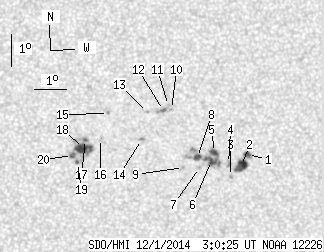

SDO HMI 2014-12-01 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.57 | 95.82 | 19.58 | 51.21 | -19.18 | 107.84 | 9.17 | 203.48 | 0.3773 | 92.0 | 32.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 16.07 | 1.29 | 8.67 | -19.25 | 110.48 | 11.80 | 209.30 | 0.3962 | 978.2 | 702.6 | |
| 8.63 | -1.00 | 4.66 | -1.00 | -19.60 | 110.31 | 11.63 | 208.51 | 0.3997 | 984.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.94 | 109.98 | 11.30 | 207.40 | 0.4021 | 770.0 | 624.5 | |
| 0.00 | 2.56 | 0.00 | 1.38 | -19.53 | 109.89 | 11.21 | 207.72 | 0.3956 | 1001.0 | 906.4 | |
| 3.16 | 30.26 | 1.70 | 16.24 | -19.18 | 109.42 | 10.74 | 207.16 | 0.3872 | 1122.3 | 593.6 | |
| 5.21 | -5.00 | 2.80 | -5.00 | -19.43 | 109.34 | 10.66 | 206.68 | 0.3902 | 1143.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.65 | 108.97 | 10.29 | 205.63 | 0.3907 | 727.0 | 529.4 | |
| 2.74 | -5.00 | 1.47 | -5.00 | -19.34 | 108.89 | 10.21 | 205.82 | 0.3856 | 985.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.65 | 108.46 | 9.78 | 204.52 | 0.3872 | 838.0 | 729.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -17.83 | 107.98 | 9.30 | 205.62 | 0.3573 | -788.0 | -726.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.70 | 107.88 | 9.20 | 205.54 | 0.3548 | -923.0 | -708.3 | |
| 0.77 | 3.16 | 0.41 | 1.67 | -17.86 | 107.73 | 9.05 | 204.99 | 0.3560 | -1066.7 | -843.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -17.92 | 107.23 | 8.55 | 203.70 | 0.3535 | 854.0 | 709.8 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -18.76 | 107.08 | 8.40 | 202.37 | 0.3652 | 852.0 | 628.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.95 | 106.00 | 7.33 | 200.60 | 0.3464 | -758.0 | -621.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -18.73 | 105.79 | 7.11 | 199.25 | 0.3571 | -614.0 | -587.2 | |
| 0.51 | 33.08 | 0.27 | 17.55 | -18.76 | 105.31 | 6.64 | 198.03 | 0.3551 | -1173.5 | -742.3 | |
| 10.77 | -17.00 | 5.71 | -17.00 | -19.04 | 105.26 | 6.59 | 197.65 | 0.3592 | -1139.2 | 999999 | |
| 0.77 | -17.00 | 0.41 | -17.00 | -19.48 | 105.09 | 6.41 | 196.84 | 0.3652 | -788.9 | 999999 | |
| 1.62 | -17.00 | 0.86 | -17.00 | -19.26 | 104.92 | 6.25 | 196.61 | 0.3610 | -878.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
