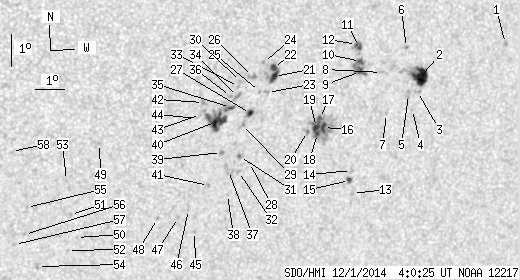

SDO HMI 2014-12-01 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.59 | 233.84 | 38.91 | 136.18 | -16.90 | 124.55 | 26.42 | 234.24 | 0.5266 | 293.4 | 237.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.00 | -14.76 | 131.73 | 33.60 | 243.46 | 0.6004 | 654.0 | 528.3 | |
| 17.86 | 30.69 | 10.74 | 18.43 | -15.75 | 128.81 | 30.68 | 239.94 | 0.5696 | 977.8 | 544.5 | |
| 0.00 | 2.14 | 0.00 | 1.29 | -16.21 | 128.78 | 30.65 | 239.19 | 0.5722 | 446.0 | 483.9 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -16.77 | 128.70 | 30.57 | 238.26 | 0.5748 | 378.0 | 344.8 | |
| 0.00 | 3.76 | 0.00 | 2.26 | -16.30 | 128.48 | 30.35 | 238.82 | 0.5690 | 624.0 | 612.4 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -14.85 | 128.17 | 30.04 | 240.91 | 0.5559 | 814.0 | 658.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -16.89 | 127.79 | 29.66 | 237.36 | 0.5645 | 751.0 | 573.5 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -15.61 | 127.40 | 29.27 | 239.08 | 0.5511 | -615.0 | -512.2 | |
| 4.02 | 16.75 | 2.36 | 9.84 | -15.58 | 126.66 | 28.53 | 238.54 | 0.5416 | -891.4 | -730.0 | |
| 2.22 | -9.00 | 1.30 | -9.00 | -15.27 | 126.62 | 28.49 | 239.01 | 0.5389 | -923.8 | 999999 | |
| 1.79 | 7.78 | 1.05 | 4.55 | -14.80 | 126.51 | 28.38 | 239.69 | 0.5345 | -894.8 | -732.6 | |
| 1.20 | -11.00 | 0.70 | -11.00 | -14.74 | 126.40 | 28.27 | 239.71 | 0.5326 | -1035.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -19.38 | 127.03 | 28.90 | 232.92 | 0.5737 | 711.0 | 604.5 | |
| 0.00 | 2.22 | 0.00 | 1.33 | -18.66 | 126.86 | 28.73 | 233.85 | 0.5662 | -684.0 | -655.0 | |
| 1.62 | 3.50 | 0.98 | 2.11 | -18.97 | 126.85 | 28.72 | 233.37 | 0.5684 | -778.4 | -591.1 | |
| 3.68 | 44.02 | 2.16 | 25.89 | -17.30 | 125.64 | 27.51 | 234.86 | 0.5414 | 829.6 | 440.4 | |
| 1.28 | -16.00 | 0.75 | -16.00 | -17.02 | 125.45 | 27.32 | 235.14 | 0.5371 | 946.0 | 999999 | |
| 1.37 | -16.00 | 0.80 | -16.00 | -17.49 | 125.46 | 27.33 | 234.40 | 0.5407 | 832.8 | 999999 | |
| 3.33 | -16.00 | 1.96 | -16.00 | -17.30 | 125.39 | 27.26 | 234.63 | 0.5385 | 1046.8 | 999999 | |
| 0.43 | 2.82 | 0.25 | 1.65 | -17.42 | 125.10 | 26.97 | 234.17 | 0.5359 | 892.6 | 728.4 | |
| 5.04 | 14.10 | 2.89 | 8.08 | -15.70 | 123.71 | 25.58 | 235.65 | 0.5055 | 788.5 | 700.9 | |
| 2.91 | -21.00 | 1.66 | -21.00 | -15.43 | 123.64 | 25.51 | 236.06 | 0.5025 | 959.8 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.52 | -16.20 | 123.54 | 25.41 | 234.65 | 0.5073 | 844.0 | 633.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -15.27 | 123.28 | 25.15 | 235.98 | 0.4967 | 925.0 | 781.3 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -16.16 | 123.26 | 25.13 | 234.43 | 0.5036 | 610.0 | 536.0 | |
| 0.00 | 3.59 | 0.00 | 2.05 | -15.70 | 122.96 | 24.83 | 234.91 | 0.4961 | 660.0 | 826.9 | |
| 2.48 | 4.62 | 1.42 | 2.65 | -16.84 | 123.05 | 24.92 | 233.07 | 0.5065 | 748.2 | 563.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -18.37 | 123.24 | 25.11 | 230.80 | 0.5218 | 623.0 | 494.7 | |
| 0.00 | 2.99 | 0.00 | 1.72 | -17.18 | 122.82 | 24.69 | 232.27 | 0.5067 | 828.0 | 732.6 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -15.85 | 122.58 | 24.45 | 234.25 | 0.4926 | 835.0 | 675.2 | |
| 0.43 | 1.62 | 0.25 | 0.94 | -18.18 | 122.87 | 24.74 | 230.71 | 0.5158 | 901.4 | 767.3 | |
| 0.00 | 2.05 | 0.00 | 1.19 | -18.65 | 122.90 | 24.77 | 230.01 | 0.5203 | 709.0 | 572.1 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -16.00 | 122.53 | 24.40 | 233.94 | 0.4932 | 862.0 | 742.6 | |
| 0.00 | 3.68 | 0.00 | 2.09 | -16.31 | 122.53 | 24.40 | 233.42 | 0.4959 | 910.0 | 726.4 | |
| 1.37 | 37.95 | 0.78 | 21.59 | -16.65 | 122.34 | 24.21 | 232.64 | 0.4964 | -574.9 | -234.7 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -16.31 | 122.30 | 24.17 | 233.17 | 0.4930 | 850.0 | 743.7 | |
| 0.00 | 7.61 | 0.00 | 4.39 | -18.62 | 122.56 | 24.43 | 229.68 | 0.5160 | 774.0 | 673.8 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -19.37 | 122.64 | 24.51 | 228.61 | 0.5238 | 551.0 | 513.0 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -18.05 | 122.23 | 24.10 | 230.22 | 0.5073 | 869.0 | 776.6 | |
| 15.56 | -35.00 | 8.86 | -35.00 | -17.08 | 121.93 | 23.80 | 231.46 | 0.4951 | -718.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -19.08 | 121.94 | 23.81 | 228.27 | 0.5133 | 844.0 | 707.5 | |
| 0.00 | 3.25 | 0.00 | 1.84 | -16.49 | 121.41 | 23.28 | 231.88 | 0.4837 | 879.0 | 710.0 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -16.86 | 121.36 | 23.23 | 231.19 | 0.4864 | 753.0 | 577.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -16.98 | 121.27 | 23.14 | 230.88 | 0.4865 | 649.0 | 557.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -20.54 | 121.69 | 23.56 | 225.80 | 0.5242 | 670.0 | 593.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -19.84 | 121.37 | 23.24 | 226.47 | 0.5141 | 817.0 | 623.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -20.09 | 121.07 | 22.94 | 225.74 | 0.5132 | 792.0 | 505.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -20.11 | 120.36 | 22.23 | 224.84 | 0.5058 | 716.0 | 553.9 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -17.74 | 118.10 | 19.97 | 225.61 | 0.4571 | -859.0 | -732.7 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -20.70 | 117.70 | 19.57 | 220.49 | 0.4846 | -419.0 | -371.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -19.96 | 117.41 | 19.28 | 221.15 | 0.4735 | -669.0 | -542.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -21.11 | 117.45 | 19.32 | 219.56 | 0.4867 | -500.0 | -455.0 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -18.89 | 117.14 | 19.01 | 222.40 | 0.4590 | -719.0 | -591.0 | |
| 0.00 | 2.56 | 0.00 | 1.45 | -21.61 | 116.51 | 18.38 | 217.52 | 0.4835 | -699.0 | -571.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -19.73 | 115.92 | 17.79 | 219.29 | 0.4560 | -612.0 | -495.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -20.59 | 115.95 | 17.82 | 218.10 | 0.4663 | -902.0 | -723.3 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -20.91 | 115.66 | 17.53 | 217.21 | 0.4672 | -678.0 | -530.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -17.97 | 115.24 | 17.11 | 220.95 | 0.4288 | -312.0 | -382.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
