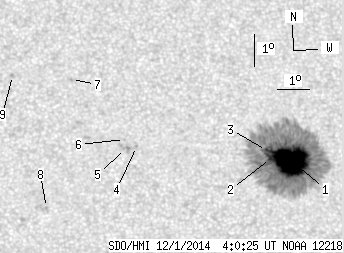

SDO HMI 2014-12-01 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.30 | 440.71 | 35.95 | 231.96 | 16.64 | 110.19 | 12.06 | 323.68 | 0.3395 | -1242.9 | -376.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.50 | 430.28 | 35.01 | 226.53 | 16.61 | 110.37 | 12.24 | 323.19 | 0.3405 | -1598.5 | -408.0 | |
| 1.54 | -1.00 | 0.81 | -1.00 | 16.68 | 109.74 | 11.61 | 324.72 | 0.3353 | -1334.7 | 999999 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 16.92 | 109.63 | 11.50 | 325.41 | 0.3375 | -1080.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.06 | 105.56 | 7.43 | 336.07 | 0.3063 | 738.0 | 638.3 | |
| 0.00 | 4.87 | 0.00 | 2.53 | 17.00 | 105.22 | 7.09 | 336.98 | 0.3031 | 848.0 | 779.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 17.28 | 105.20 | 7.07 | 337.41 | 0.3072 | 665.0 | 463.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.14 | 103.61 | 5.48 | 343.94 | 0.3275 | 767.0 | 601.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.20 | 102.72 | 4.59 | 342.66 | 0.2603 | 924.0 | 740.4 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 19.27 | 101.76 | 3.63 | 349.27 | 0.3225 | 940.0 | 770.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
