SDO HMI 2014-12-01 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.59 | 88.57 | 19.60 | 47.41 | -19.15 | 107.91 | 9.78 | 204.90 | 0.3809 | -24.8 | 117.4 | |
|
previous
or next observation for the same group /

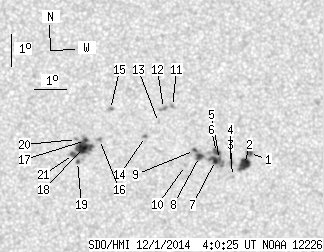

back to the solar disc SDO HMI 2014-12-01 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 14.45 | 1.02 | 7.81 | -19.26 | 110.51 | 12.38 | 210.47 | 0.4009 | 1038.7 | 722.6 | |
| 8.21 | -1.00 | 4.44 | -1.00 | -19.61 | 110.38 | 12.25 | 209.74 | 0.4045 | 1001.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.99 | 110.02 | 11.89 | 208.54 | 0.4069 | 798.0 | 654.7 | |
| 0.00 | 2.56 | 0.00 | 1.38 | -19.57 | 109.92 | 11.79 | 208.88 | 0.4005 | 1046.0 | 857.4 | |
| 0.26 | 29.66 | 0.14 | 15.96 | -19.45 | 109.56 | 11.43 | 208.30 | 0.3960 | 1109.0 | 697.2 | |
| 2.82 | -5.00 | 1.52 | -5.00 | -19.22 | 109.45 | 11.32 | 208.35 | 0.3921 | 1151.8 | 999999 | |
| 3.16 | -5.00 | 1.70 | -5.00 | -19.48 | 109.44 | 11.31 | 208.00 | 0.3955 | 1208.6 | 999999 | |
| 2.91 | -5.00 | 1.56 | -5.00 | -19.35 | 108.92 | 10.79 | 207.07 | 0.3898 | 1019.7 | 999999 | |
| 0.85 | -5.00 | 0.46 | -5.00 | -19.16 | 108.75 | 10.62 | 206.94 | 0.3858 | -460.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.63 | 108.49 | 10.36 | 205.81 | 0.3907 | 861.0 | 678.4 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -17.78 | 107.97 | 9.84 | 206.97 | 0.3603 | -939.0 | -799.3 | |
| 0.00 | 3.08 | 0.00 | 1.63 | -17.84 | 107.69 | 9.56 | 206.23 | 0.3592 | -1050.0 | -886.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.27 | 107.55 | 9.42 | 205.36 | 0.3646 | -714.0 | -478.3 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -18.71 | 107.16 | 9.04 | 203.93 | 0.3683 | 1028.0 | 779.6 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -17.86 | 106.02 | 7.89 | 202.14 | 0.3484 | -989.0 | -824.4 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -18.80 | 105.72 | 7.59 | 200.37 | 0.3608 | -1005.0 | -815.2 | |
| 1.54 | 23.51 | 0.82 | 12.48 | -18.83 | 105.28 | 7.15 | 199.25 | 0.3588 | -1182.7 | -776.6 | |
| 12.31 | -17.00 | 6.54 | -17.00 | -19.05 | 105.22 | 7.09 | 198.91 | 0.3619 | -1157.2 | 999999 | |
| 0.68 | 2.14 | 0.36 | 1.14 | -19.49 | 105.05 | 6.92 | 198.08 | 0.3678 | -707.1 | -627.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.80 | 104.99 | 6.86 | 198.57 | 0.3568 | -948.0 | -708.9 | |
| 1.97 | -17.00 | 1.04 | -17.00 | -19.27 | 104.92 | 6.79 | 197.95 | 0.3637 | -857.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
