SDO HMI 2014-12-01 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.87 | 242.35 | 39.92 | 141.55 | -16.81 | 124.48 | 26.90 | 234.89 | 0.5312 | 304.3 | 243.8 | |
|
previous
or next observation for the same group /

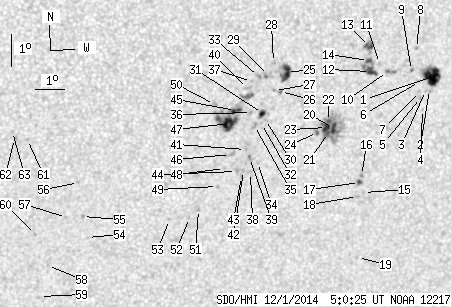

back to the solar disc SDO HMI 2014-12-01 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.15 | 25.90 | 11.59 | 15.67 | -15.73 | 128.87 | 31.29 | 240.43 | 0.5770 | 956.4 | 558.9 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -16.13 | 128.84 | 31.25 | 239.77 | 0.5790 | 212.0 | 447.9 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -16.16 | 128.70 | 31.11 | 239.62 | 0.5775 | 429.0 | 401.1 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -16.75 | 128.69 | 31.11 | 238.71 | 0.5812 | 386.0 | 357.5 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -16.38 | 128.55 | 30.97 | 239.18 | 0.5771 | 646.0 | 541.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -15.88 | 128.43 | 30.85 | 239.87 | 0.5725 | 640.0 | 494.2 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -16.19 | 128.49 | 30.90 | 239.42 | 0.5751 | 839.0 | 646.1 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -14.86 | 128.16 | 30.58 | 241.30 | 0.5627 | 719.0 | 610.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -15.54 | 128.09 | 30.51 | 240.16 | 0.5660 | 479.0 | 437.5 | |
| 0.34 | 4.02 | 0.20 | 2.39 | -15.56 | 127.24 | 29.66 | 239.48 | 0.5555 | -679.5 | -346.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -15.31 | 126.92 | 29.34 | 239.63 | 0.5499 | -653.0 | -547.4 | |
| 5.04 | 14.62 | 2.98 | 8.63 | -15.56 | 126.64 | 29.06 | 239.01 | 0.5480 | -880.2 | -769.1 | |
| 3.42 | 8.38 | 2.01 | 4.92 | -14.79 | 126.49 | 28.91 | 240.16 | 0.5410 | -929.0 | -692.0 | |
| 1.62 | -12.00 | 0.96 | -12.00 | -15.22 | 126.52 | 28.93 | 239.47 | 0.5442 | -910.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -19.33 | 127.05 | 29.47 | 233.50 | 0.5798 | 728.0 | 602.2 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -18.79 | 126.88 | 29.29 | 234.15 | 0.5737 | -859.0 | -714.3 | |
| 1.11 | 1.62 | 0.67 | 0.98 | -19.01 | 126.85 | 29.26 | 233.79 | 0.5750 | -801.7 | -696.8 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -19.45 | 126.86 | 29.28 | 233.15 | 0.5785 | 680.0 | 561.1 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -21.39 | 127.27 | 29.69 | 230.72 | 0.5980 | 693.0 | 577.9 | |
| 4.10 | 51.12 | 2.42 | 30.20 | -17.31 | 125.62 | 28.04 | 235.33 | 0.5478 | 825.0 | 417.5 | |
| 0.77 | -20.00 | 0.45 | -20.00 | -17.44 | 125.47 | 27.88 | 234.99 | 0.5469 | 922.2 | 999999 | |
| 1.97 | -20.00 | 1.16 | -20.00 | -17.09 | 125.41 | 27.83 | 235.48 | 0.5436 | 972.5 | 999999 | |
| 4.10 | -20.00 | 2.42 | -20.00 | -17.28 | 125.37 | 27.79 | 235.15 | 0.5445 | 1009.4 | 999999 | |
| 0.68 | -20.00 | 0.40 | -20.00 | -17.43 | 125.08 | 27.50 | 234.65 | 0.5422 | 858.4 | 999999 | |
| 7.78 | 16.58 | 4.48 | 9.54 | -15.56 | 123.73 | 26.14 | 236.45 | 0.5114 | 893.9 | 736.7 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -16.15 | 123.60 | 26.02 | 235.35 | 0.5143 | 761.0 | 680.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -16.11 | 123.39 | 25.81 | 235.20 | 0.5115 | 799.0 | 657.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -15.25 | 123.24 | 25.66 | 236.52 | 0.5029 | 771.0 | 740.5 | |
| 0.00 | 5.13 | 0.00 | 2.94 | -15.65 | 123.13 | 25.54 | 235.72 | 0.5045 | 622.0 | 630.0 | |
| 0.00 | 2.65 | 0.00 | 1.53 | -17.01 | 123.21 | 25.63 | 233.53 | 0.5164 | 699.0 | 557.4 | |
| 2.74 | 4.96 | 1.58 | 2.86 | -16.82 | 123.08 | 25.50 | 233.71 | 0.5133 | 807.5 | 590.9 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -17.13 | 123.09 | 25.51 | 233.21 | 0.5160 | 706.0 | 510.2 | |
| 0.00 | 2.22 | 0.00 | 1.27 | -15.68 | 122.79 | 25.20 | 235.34 | 0.5005 | 716.0 | 778.8 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -18.35 | 123.14 | 25.56 | 231.31 | 0.5267 | 644.0 | 524.8 | |
| 0.00 | 2.65 | 0.00 | 1.53 | -17.20 | 122.86 | 25.28 | 232.87 | 0.5137 | 733.0 | 717.0 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -16.79 | 122.70 | 25.12 | 233.37 | 0.5084 | -307.0 | -197.1 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -15.83 | 122.57 | 24.99 | 234.86 | 0.4990 | 812.0 | 659.3 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -18.66 | 122.95 | 25.37 | 230.63 | 0.5271 | 664.0 | 573.0 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -18.19 | 122.84 | 25.26 | 231.25 | 0.5219 | 918.0 | 799.3 | |
| 0.00 | 2.65 | 0.00 | 1.51 | -16.04 | 122.46 | 24.88 | 234.38 | 0.4994 | 799.0 | 681.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -17.94 | 122.66 | 25.08 | 231.46 | 0.5176 | 736.0 | 675.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -18.60 | 122.70 | 25.11 | 230.46 | 0.5237 | 797.0 | 670.5 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -18.79 | 122.66 | 25.07 | 230.13 | 0.5249 | 739.0 | 657.2 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -18.63 | 122.46 | 24.88 | 230.16 | 0.5212 | 833.0 | 688.4 | |
| 3.42 | 45.65 | 1.95 | 26.08 | -16.72 | 122.15 | 24.56 | 232.91 | 0.5012 | -693.4 | -69.8 | |
| 0.00 | 4.19 | 0.00 | 2.41 | -18.09 | 122.17 | 24.59 | 230.70 | 0.5132 | 694.0 | 479.7 | |
| 11.63 | -45.00 | 6.65 | -45.00 | -17.13 | 122.00 | 24.42 | 232.08 | 0.5028 | -863.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -18.53 | 122.03 | 24.45 | 229.85 | 0.5155 | 822.0 | 712.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -19.09 | 121.88 | 24.30 | 228.81 | 0.5188 | 835.0 | 752.1 | |
| 0.00 | 2.48 | 0.00 | 1.41 | -16.53 | 121.41 | 23.83 | 232.43 | 0.4906 | 935.0 | 767.6 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -19.82 | 121.34 | 23.76 | 227.10 | 0.5194 | 871.0 | 759.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -20.07 | 121.07 | 23.49 | 226.42 | 0.5189 | 791.0 | 599.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -20.12 | 120.39 | 22.81 | 225.54 | 0.5121 | 816.0 | 578.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -20.68 | 117.69 | 20.11 | 221.27 | 0.4896 | -340.0 | -321.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -20.01 | 117.43 | 19.85 | 221.90 | 0.4798 | -633.0 | -567.6 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -18.93 | 117.17 | 19.58 | 223.16 | 0.4654 | -840.0 | -646.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -20.04 | 116.90 | 19.32 | 221.11 | 0.4747 | -733.0 | -548.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.56 | 116.47 | 18.88 | 218.32 | 0.4875 | -564.0 | -551.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -22.56 | 116.33 | 18.75 | 216.79 | 0.4977 | -185.0 | -139.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -20.57 | 115.94 | 18.35 | 218.94 | 0.4711 | -889.0 | -709.6 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -17.58 | 115.34 | 17.75 | 222.63 | 0.4311 | -862.0 | -666.7 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -17.54 | 114.91 | 17.33 | 222.01 | 0.4262 | -363.0 | -377.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -17.32 | 114.83 | 17.24 | 222.24 | 0.4228 | -731.0 | -533.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
