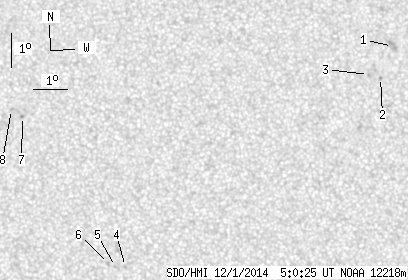

SDO HMI 2014-12-01 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.97 | 0.00 | 7.50 | -5.74 | 96.56 | -1.03 | 183.34 | 0.1407 | 393.1 | 468.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.33 | 0.00 | 3.15 | -3.55 | 100.69 | 3.11 | 215.07 | 0.0947 | 687.0 | 737.7 | |
| 0.00 | 1.03 | 0.00 | 0.51 | -4.47 | 100.34 | 2.76 | 207.24 | 0.1052 | 927.0 | 746.3 | |
| 0.00 | 1.20 | 0.00 | 0.60 | -4.38 | 99.98 | 2.40 | 204.51 | 0.1011 | 828.0 | 656.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -10.10 | 92.71 | -4.88 | 156.27 | 0.2090 | 763.0 | 609.1 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -10.10 | 92.40 | -5.18 | 154.98 | 0.2111 | 783.0 | 683.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -10.01 | 92.19 | -5.39 | 153.91 | 0.2113 | 982.0 | 670.3 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -5.62 | 89.69 | -7.90 | 129.56 | 0.1782 | -965.0 | -727.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -5.41 | 89.36 | -8.22 | 127.52 | 0.1804 | -860.0 | -686.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
