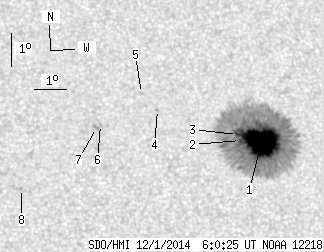

SDO HMI 2014-12-01 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.27 | 430.89 | 37.15 | 227.77 | 16.64 | 110.25 | 13.22 | 321.18 | 0.3510 | -1296.3 | -389.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.19 | 425.17 | 35.53 | 224.79 | 16.63 | 110.35 | 13.32 | 320.94 | 0.3518 | -1600.6 | -407.9 | |
| 1.54 | -1.00 | 0.81 | -1.00 | 16.66 | 109.69 | 12.65 | 322.40 | 0.3454 | -1331.9 | 999999 | |
| 1.54 | -1.00 | 0.81 | -1.00 | 16.84 | 109.61 | 12.57 | 322.91 | 0.3470 | -1083.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.62 | 107.13 | 10.09 | 329.93 | 0.3349 | 789.0 | 666.3 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 18.12 | 106.66 | 9.62 | 331.85 | 0.3381 | 841.0 | 708.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 17.17 | 105.32 | 8.28 | 333.89 | 0.3141 | 730.0 | 645.3 | |
| 0.00 | 2.39 | 0.00 | 1.25 | 17.08 | 105.19 | 8.15 | 334.11 | 0.3118 | 1034.0 | 889.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 15.21 | 102.80 | 5.76 | 338.66 | 0.2673 | 792.0 | 664.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
