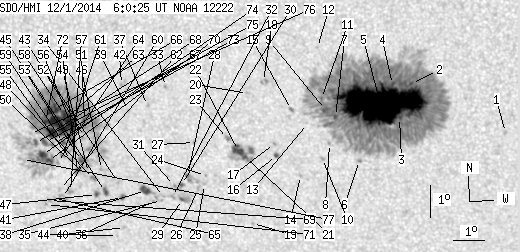

SDO HMI 2014-12-01 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 301.90 | 1513.33 | 164.38 | 824.86 | -19.67 | 83.89 | -13.15 | 149.60 | 0.4161 | 569.2 | 98.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.87 | -20.15 | 91.37 | -5.67 | 165.50 | 0.3721 | 813.0 | 551.6 | |
| 1.20 | 975.49 | 0.64 | 522.02 | -18.61 | 88.47 | -8.57 | 157.04 | 0.3636 | 1245.3 | 402.9 | |
| 0.26 | -2.00 | 0.14 | -2.00 | -19.68 | 88.03 | -9.01 | 157.21 | 0.3823 | 1164.0 | 999999 | |
| 0.68 | -2.00 | 0.36 | -2.00 | -18.64 | 87.87 | -9.17 | 155.66 | 0.3680 | 1472.2 | 999999 | |
| 193.44 | -2.00 | 103.49 | -2.00 | -19.24 | 87.45 | -9.59 | 155.41 | 0.3795 | 1658.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -21.05 | 86.66 | -10.38 | 155.74 | 0.4109 | -586.0 | -530.8 | |
| 1.62 | -2.00 | 0.88 | -2.00 | -19.65 | 85.99 | -11.05 | 152.75 | 0.3958 | 678.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.51 | 85.74 | -11.30 | 153.25 | 0.4097 | 654.0 | 557.1 | |
| 2.82 | -2.00 | 1.52 | -2.00 | -19.43 | 85.69 | -11.35 | 151.84 | 0.3950 | 407.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.99 | 85.47 | -11.57 | 153.29 | 0.4182 | 679.0 | 546.2 | |
| 0.60 | -2.00 | 0.32 | -2.00 | -19.09 | 85.58 | -11.45 | 151.18 | 0.3909 | 679.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.49 | 85.57 | -11.47 | 148.92 | 0.3691 | 726.0 | 577.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -19.88 | 85.08 | -11.96 | 151.16 | 0.4058 | 518.0 | 387.3 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -21.53 | 84.71 | -12.33 | 152.46 | 0.4313 | 654.0 | 497.9 | |
| 0.43 | 2.14 | 0.23 | 1.16 | -19.44 | 84.60 | -12.44 | 149.63 | 0.4036 | 759.4 | 457.6 | |
| 0.94 | 2.05 | 0.51 | 1.12 | -20.90 | 83.99 | -13.05 | 150.34 | 0.4281 | -911.7 | -761.2 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -20.51 | 83.96 | -13.08 | 149.80 | 0.4232 | -794.0 | -662.7 | |
| 0.00 | 2.99 | 0.00 | 1.61 | -18.56 | 83.77 | -13.27 | 146.78 | 0.3989 | 535.0 | 706.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.08 | 82.99 | -14.05 | 151.15 | 0.4649 | 772.0 | 608.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -18.94 | 83.22 | -13.81 | 146.28 | 0.4086 | 722.0 | 559.8 | |
| 2.31 | 27.27 | 1.27 | 15.00 | -20.96 | 82.97 | -14.06 | 148.58 | 0.4371 | 855.0 | 623.8 | |
| 7.95 | -21.00 | 4.37 | -21.00 | -20.74 | 82.77 | -14.27 | 147.92 | 0.4360 | 1022.6 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.60 | -20.36 | 82.45 | -14.59 | 146.85 | 0.4338 | 871.0 | 741.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.54 | 81.60 | -15.44 | 146.96 | 0.4561 | 877.0 | 664.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.83 | 81.54 | -15.50 | 147.22 | 0.4603 | 963.0 | 730.9 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -21.96 | 81.32 | -15.72 | 147.04 | 0.4637 | 558.0 | 447.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -20.49 | 81.35 | -15.69 | 145.15 | 0.4451 | -816.0 | -642.2 | |
| 0.60 | 7.86 | 0.33 | 4.39 | -21.54 | 81.01 | -16.03 | 145.99 | 0.4612 | 837.9 | 749.4 | |
| 0.94 | 7.01 | 0.53 | 3.93 | -22.31 | 80.75 | -16.29 | 146.57 | 0.4730 | -635.2 | -358.4 | |
| 0.94 | 4.10 | 0.53 | 2.30 | -21.83 | 80.77 | -16.27 | 145.99 | 0.4668 | 755.2 | 217.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.87 | 80.54 | -16.50 | 145.66 | 0.4693 | 657.0 | 567.9 | |
| 0.00 | 2.65 | 0.00 | 1.49 | -22.22 | 80.43 | -16.61 | 145.95 | 0.4746 | -853.0 | -694.5 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -18.72 | 80.59 | -16.45 | 141.30 | 0.4308 | -879.0 | -727.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -22.22 | 80.13 | -16.91 | 145.48 | 0.4772 | -740.0 | -571.0 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -22.35 | 80.04 | -17.00 | 145.52 | 0.4795 | -814.0 | -631.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -22.38 | 79.77 | -17.27 | 145.15 | 0.4823 | -757.0 | -590.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -19.32 | 79.94 | -17.10 | 141.16 | 0.4443 | 628.0 | 574.2 | |
| 4.96 | 11.03 | 2.80 | 6.22 | -22.03 | 79.55 | -17.49 | 144.35 | 0.4800 | -1014.9 | -696.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.48 | 79.30 | -17.74 | 140.39 | 0.4525 | -811.0 | -667.9 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -23.23 | 78.68 | -18.36 | 144.62 | 0.5019 | -592.0 | -416.3 | |
| 1.45 | 2.82 | 0.82 | 1.60 | -22.26 | 78.75 | -18.29 | 143.47 | 0.4900 | -901.0 | -715.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.67 | 79.16 | -17.88 | 138.92 | 0.4446 | -952.0 | -864.7 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -21.78 | 78.68 | -18.36 | 142.72 | 0.4850 | -771.0 | -578.3 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -23.49 | 78.40 | -18.64 | 144.55 | 0.5074 | -555.0 | -653.7 | |
| 2.14 | 3.93 | 1.21 | 2.24 | -22.07 | 78.20 | -18.84 | 142.43 | 0.4928 | -860.6 | -730.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -21.36 | 78.16 | -18.88 | 141.41 | 0.4851 | -762.0 | -681.4 | |
| 1.28 | 2.56 | 0.73 | 1.46 | -22.17 | 77.88 | -19.16 | 142.11 | 0.4969 | -804.8 | -653.5 | |
| 0.00 | 2.99 | 0.00 | 1.70 | -21.65 | 77.85 | -19.18 | 141.37 | 0.4913 | -927.0 | -818.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.46 | 77.71 | -19.33 | 140.91 | 0.4905 | -213.0 | -222.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.56 | 77.60 | -19.44 | 140.88 | 0.4927 | -254.0 | -347.6 | |
| 1.54 | 332.51 | 0.86 | 187.24 | -19.81 | 77.80 | -19.24 | 138.65 | 0.4712 | -1205.4 | -586.2 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -20.31 | 77.73 | -19.30 | 139.31 | 0.4775 | -650.0 | -707.7 | |
| 1.62 | -51.00 | 0.92 | -51.00 | -21.08 | 77.53 | -19.51 | 140.12 | 0.4880 | -1056.7 | 999999 | |
| 1.54 | -51.00 | 0.87 | -51.00 | -21.40 | 77.35 | -19.69 | 140.32 | 0.4933 | -976.2 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.36 | -21.08 | 77.19 | -19.85 | 139.66 | 0.4913 | -845.0 | -660.5 | |
| 13.42 | -51.00 | 7.55 | -51.00 | -19.87 | 77.32 | -19.71 | 138.08 | 0.4768 | -1285.9 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.62 | -22.07 | 77.01 | -20.02 | 140.79 | 0.5040 | -717.0 | -714.6 | |
| 5.64 | -51.00 | 3.17 | -51.00 | -19.62 | 77.16 | -19.88 | 137.47 | 0.4758 | -1301.5 | 999999 | |
| 1.62 | -51.00 | 0.92 | -51.00 | -20.51 | 77.00 | -20.03 | 138.57 | 0.4870 | -775.1 | 999999 | |
| 0.00 | 5.30 | 0.00 | 3.05 | -22.27 | 76.71 | -20.33 | 140.65 | 0.5091 | -587.0 | -579.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -20.95 | 76.91 | -20.13 | 139.09 | 0.4928 | -794.0 | -708.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.01 | 76.65 | -20.39 | 140.22 | 0.5068 | -894.0 | -729.6 | |
| 20.94 | -51.00 | 11.82 | -51.00 | -19.94 | 76.91 | -20.12 | 137.61 | 0.4818 | -1121.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -21.15 | 76.71 | -20.33 | 139.09 | 0.4968 | -560.0 | -475.4 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -22.30 | 76.43 | -20.60 | 140.33 | 0.5121 | -720.0 | -500.9 | |
| 8.38 | -51.00 | 4.72 | -51.00 | -19.46 | 76.81 | -20.23 | 136.75 | 0.4778 | -1217.1 | 999999 | |
| 0.60 | -51.00 | 0.34 | -51.00 | -20.57 | 76.62 | -20.41 | 138.16 | 0.4915 | -776.9 | 999999 | |
| 8.63 | -51.00 | 4.89 | -51.00 | -20.19 | 76.64 | -20.39 | 137.62 | 0.4873 | -941.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -22.37 | 76.25 | -20.79 | 140.18 | 0.5145 | -694.0 | -571.8 | |
| 2.48 | 42.23 | 1.41 | 24.16 | -21.08 | 76.41 | -20.62 | 138.61 | 0.4991 | -872.4 | -350.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -22.50 | 76.13 | -20.91 | 140.19 | 0.5171 | -538.0 | -461.0 | |
| 2.56 | -51.00 | 1.45 | -51.00 | -19.84 | 76.49 | -20.55 | 136.90 | 0.4852 | -933.2 | 999999 | |
| 2.56 | -51.00 | 1.46 | -51.00 | -20.51 | 76.36 | -20.68 | 137.72 | 0.4935 | -769.1 | 999999 | |
| 4.19 | -70.00 | 2.39 | -70.00 | -20.89 | 76.24 | -20.80 | 138.11 | 0.4989 | -966.4 | 999999 | |
| 1.62 | 21.46 | 0.93 | 12.26 | -20.51 | 76.06 | -20.98 | 137.32 | 0.4967 | -770.1 | -272.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.23 | 75.93 | -21.11 | 136.73 | 0.4950 | -478.0 | -313.0 | |
| 0.00 | 2.74 | 0.00 | 1.57 | -21.06 | 75.54 | -21.50 | 137.43 | 0.5077 | -83.0 | -67.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
