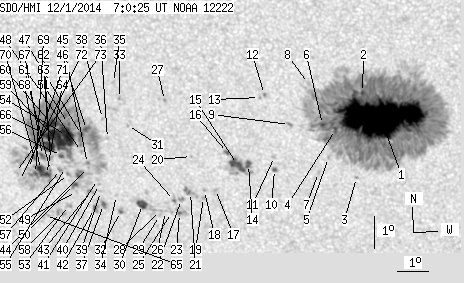

SDO HMI 2014-12-01 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 307.71 | 1449.90 | 167.36 | 788.53 | -19.66 | 83.92 | -12.58 | 150.70 | 0.4114 | 471.1 | 107.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 193.44 | 938.13 | 103.32 | 501.34 | -19.25 | 87.48 | -9.02 | 156.71 | 0.3758 | 1629.7 | 410.7 | |
| 1.45 | -1.00 | 0.77 | -1.00 | -18.46 | 86.95 | -9.54 | 154.57 | 0.3678 | 1206.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.15 | 86.59 | -9.90 | 156.82 | 0.4092 | -537.0 | -474.4 | |
| 2.56 | -1.00 | 1.38 | -1.00 | -19.63 | 86.02 | -10.47 | 153.92 | 0.3911 | 607.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -20.51 | 85.74 | -10.76 | 154.36 | 0.4058 | 708.0 | 502.9 | |
| 1.71 | -1.00 | 0.92 | -1.00 | -19.47 | 85.62 | -10.88 | 152.87 | 0.3918 | 451.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.99 | 85.38 | -11.11 | 154.18 | 0.4150 | 663.0 | 572.3 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -18.18 | 85.26 | -11.23 | 150.42 | 0.3765 | 199.0 | 165.1 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -19.47 | 84.56 | -11.93 | 150.69 | 0.3999 | 810.0 | 563.3 | |
| 0.85 | 2.48 | 0.47 | 1.35 | -20.90 | 83.96 | -12.53 | 151.31 | 0.4241 | -904.7 | -695.4 | |
| 0.00 | 2.22 | 0.00 | 1.21 | -20.49 | 84.00 | -12.50 | 150.87 | 0.4182 | -372.0 | -411.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.53 | 83.83 | -12.66 | 147.94 | 0.3931 | 910.0 | 854.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.62 | 83.67 | -12.83 | 147.74 | 0.3958 | 682.0 | 574.9 | |
| 2.48 | 29.15 | 1.36 | 15.99 | -20.74 | 83.13 | -13.36 | 149.57 | 0.4284 | 1035.2 | 526.6 | |
| 8.72 | -14.00 | 4.78 | -14.00 | -20.74 | 82.77 | -13.72 | 148.91 | 0.4314 | 1007.1 | 999999 | |
| 0.94 | 2.14 | 0.52 | 1.17 | -20.36 | 82.49 | -14.01 | 147.89 | 0.4288 | 867.4 | 636.3 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -21.54 | 81.98 | -14.52 | 148.52 | 0.4483 | 319.0 | 310.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.58 | 81.61 | -14.88 | 147.93 | 0.4518 | 684.0 | 521.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -21.80 | 81.55 | -14.94 | 148.12 | 0.4551 | 890.0 | 755.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -20.49 | 81.30 | -15.20 | 145.98 | 0.4407 | -671.0 | -585.6 | |
| 0.00 | 6.75 | 0.00 | 3.76 | -21.64 | 81.14 | -15.35 | 147.23 | 0.4565 | 945.0 | 776.7 | |
| 0.00 | 2.39 | 0.00 | 1.34 | -21.87 | 80.82 | -15.67 | 146.99 | 0.4621 | 861.0 | 616.5 | |
| 0.60 | 4.53 | 0.34 | 2.54 | -22.32 | 80.70 | -15.79 | 147.36 | 0.4688 | -761.3 | -443.6 | |
| 0.34 | 2.39 | 0.19 | 1.34 | -21.90 | 80.58 | -15.91 | 146.65 | 0.4645 | 689.5 | 463.1 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -22.29 | 80.44 | -16.05 | 146.90 | 0.4706 | -778.0 | -676.9 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -22.26 | 80.24 | -16.25 | 146.55 | 0.4719 | -797.0 | -510.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.73 | 80.60 | -15.90 | 142.23 | 0.4253 | -933.0 | -790.2 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -22.22 | 80.08 | -16.41 | 146.26 | 0.4728 | -515.0 | -337.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -22.38 | 80.03 | -16.47 | 146.38 | 0.4753 | -764.0 | -550.0 | |
| 5.56 | 11.97 | 3.12 | 6.73 | -22.03 | 79.50 | -16.99 | 145.11 | 0.4755 | -974.6 | -718.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.52 | 79.31 | -17.19 | 141.30 | 0.4473 | -879.0 | -675.9 | |
| 0.68 | 2.74 | 0.39 | 1.55 | -22.26 | 78.74 | -17.76 | 144.25 | 0.4851 | -897.6 | -801.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -18.67 | 79.14 | -17.36 | 139.74 | 0.4392 | -945.0 | -830.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.75 | 78.67 | -17.82 | 143.47 | 0.4796 | -741.0 | -608.5 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -18.17 | 78.99 | -17.50 | 138.72 | 0.4349 | -713.0 | -621.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -19.93 | 78.60 | -17.89 | 140.81 | 0.4591 | -15.0 | -105.8 | |
| 1.37 | 3.93 | 0.77 | 2.23 | -22.04 | 78.20 | -18.30 | 143.16 | 0.4873 | -960.7 | -738.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.30 | 78.51 | -17.99 | 139.73 | 0.4528 | -829.0 | -706.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -21.62 | 78.15 | -18.34 | 142.54 | 0.4829 | -722.0 | -571.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.40 | 78.15 | -18.34 | 142.22 | 0.4804 | -846.0 | -662.2 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -21.24 | 78.10 | -18.39 | 141.94 | 0.4789 | -267.0 | -228.0 | |
| 1.37 | 4.19 | 0.78 | 2.38 | -22.17 | 77.88 | -18.62 | 142.87 | 0.4918 | -764.7 | -635.8 | |
| 0.00 | 3.08 | 0.00 | 1.74 | -21.62 | 77.82 | -18.68 | 142.05 | 0.4861 | -941.0 | -802.1 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -20.86 | 77.85 | -18.64 | 141.03 | 0.4770 | -884.0 | -760.3 | |
| 0.00 | 2.65 | 0.00 | 1.49 | -20.73 | 77.84 | -18.66 | 140.83 | 0.4757 | -1063.0 | -884.9 | |
| 2.56 | 295.33 | 1.43 | 165.62 | -19.65 | 77.94 | -18.56 | 139.40 | 0.4625 | -1195.2 | -555.3 | |
| 2.05 | -46.00 | 1.15 | -46.00 | -19.81 | 77.75 | -18.74 | 139.37 | 0.4661 | -1204.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.35 | 77.68 | -18.81 | 140.06 | 0.4729 | -967.0 | -833.6 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -21.63 | 77.35 | -19.15 | 141.38 | 0.4906 | -565.0 | -452.9 | |
| 1.62 | 15.04 | 0.92 | 8.51 | -21.40 | 77.31 | -19.18 | 141.02 | 0.4884 | -924.9 | -765.4 | |
| 0.77 | -46.00 | 0.43 | -46.00 | -19.46 | 77.36 | -19.13 | 138.28 | 0.4663 | -1327.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -21.08 | 77.15 | -19.34 | 140.35 | 0.4863 | -817.0 | -693.0 | |
| 0.00 | 2.74 | 0.00 | 1.56 | -22.08 | 77.01 | -19.48 | 141.53 | 0.4988 | -761.0 | -634.8 | |
| 18.81 | -46.00 | 10.55 | -46.00 | -19.84 | 77.25 | -19.24 | 138.69 | 0.4716 | -1289.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -20.86 | 77.08 | -19.41 | 139.94 | 0.4845 | -765.0 | -685.9 | |
| 1.54 | -46.00 | 0.87 | -46.00 | -20.48 | 77.00 | -19.49 | 139.27 | 0.4811 | -800.9 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.36 | -20.92 | 76.90 | -19.59 | 139.78 | 0.4870 | -679.0 | -653.0 | |
| 0.00 | 5.81 | 0.00 | 3.33 | -22.30 | 76.71 | -19.79 | 141.42 | 0.5042 | -635.0 | -566.7 | |
| 22.48 | -46.00 | 12.65 | -46.00 | -19.94 | 76.90 | -19.59 | 138.35 | 0.4762 | -1103.9 | 999999 | |
| 9.40 | -46.00 | 5.28 | -46.00 | -19.47 | 76.80 | -19.70 | 137.48 | 0.4722 | -1211.6 | 999999 | |
| 0.26 | 35.30 | 0.15 | 20.12 | -20.96 | 76.56 | -19.93 | 139.36 | 0.4908 | -1021.0 | -366.6 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -20.58 | 76.62 | -19.88 | 138.88 | 0.4860 | -848.0 | -730.3 | |
| 9.57 | -46.00 | 5.41 | -46.00 | -20.19 | 76.63 | -19.86 | 138.35 | 0.4817 | -898.7 | 999999 | |
| 3.16 | -61.00 | 1.80 | -61.00 | -21.09 | 76.41 | -20.08 | 139.33 | 0.4937 | -880.1 | 999999 | |
| 0.00 | 3.76 | 0.00 | 2.16 | -22.40 | 76.18 | -20.31 | 140.84 | 0.5103 | -626.0 | -509.5 | |
| 3.33 | -46.00 | 1.88 | -46.00 | -19.78 | 76.49 | -20.00 | 137.54 | 0.4788 | -959.7 | 999999 | |
| 1.97 | 4.10 | 1.11 | 2.33 | -20.48 | 76.36 | -20.13 | 138.40 | 0.4876 | -786.3 | -620.5 | |
| 5.64 | -61.00 | 3.21 | -61.00 | -20.93 | 76.23 | -20.26 | 138.86 | 0.4938 | -931.7 | 999999 | |
| 1.45 | -61.00 | 0.83 | -61.00 | -21.06 | 76.04 | -20.45 | 138.80 | 0.4970 | -678.2 | 999999 | |
| 1.03 | 24.19 | 0.58 | 13.77 | -20.55 | 76.08 | -20.41 | 138.11 | 0.4911 | -811.3 | -290.3 | |
| 0.00 | 2.14 | 0.00 | 1.22 | -20.90 | 75.83 | -20.66 | 138.28 | 0.4975 | -106.0 | -62.5 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -21.28 | 75.47 | -21.03 | 138.36 | 0.5052 | 13.0 | 2.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.03 | 75.37 | -21.12 | 137.87 | 0.5035 | -31.0 | -108.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
