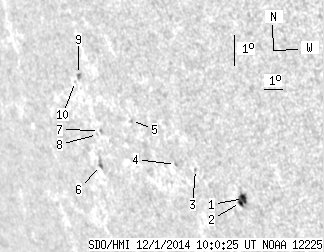

SDO HMI 2014-12-01 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.26 | 22.13 | 6.33 | 20.24 | -15.45 | 39.40 | -55.46 | 109.16 | 0.8413 | 218.6 | -10.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.85 | 11.28 | 3.24 | 9.53 | -16.35 | 42.90 | -51.96 | 111.01 | 0.8118 | 783.0 | 487.0 | |
| 2.22 | -1.00 | 1.88 | -1.00 | -16.47 | 42.70 | -52.16 | 111.10 | 0.8140 | 573.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.75 | -15.48 | 40.77 | -54.09 | 109.42 | 0.8299 | 500.0 | 477.4 | |
| 0.00 | 1.11 | 0.00 | 1.00 | -15.34 | 39.75 | -55.10 | 109.02 | 0.8388 | 619.0 | 438.3 | |
| 0.00 | 0.68 | 0.00 | 0.65 | -14.01 | 37.85 | -57.01 | 107.07 | 0.8534 | 277.0 | 328.0 | |
| 0.85 | 4.70 | 0.87 | 4.78 | -15.42 | 35.43 | -59.43 | 108.22 | 0.8758 | -563.6 | -504.7 | |
| 0.00 | 0.51 | 0.00 | 0.51 | -14.34 | 35.86 | -59.00 | 107.07 | 0.8708 | -497.0 | -506.5 | |
| 0.00 | 0.60 | 0.00 | 0.60 | -14.47 | 35.69 | -59.17 | 107.18 | 0.8724 | -255.0 | -235.6 | |
| 0.34 | 2.14 | 0.34 | 2.16 | -12.64 | 35.30 | -59.56 | 105.04 | 0.8731 | -514.8 | -488.0 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -12.86 | 35.03 | -59.83 | 105.25 | 0.8756 | -165.0 | -186.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
