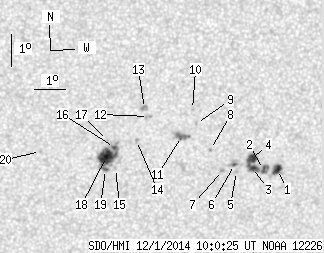

SDO HMI 2014-12-01 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.16 | 97.76 | 21.20 | 52.89 | -19.17 | 107.52 | 12.66 | 210.97 | 0.4024 | -42.7 | 70.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.47 | 10.08 | 3.01 | 5.54 | -19.66 | 110.67 | 15.81 | 216.26 | 0.4357 | 959.6 | 510.3 | |
| 1.97 | 21.45 | 1.08 | 11.74 | -19.66 | 110.22 | 15.36 | 215.49 | 0.4315 | 1026.6 | 819.9 | |
| 5.13 | -2.00 | 2.81 | -2.00 | -19.59 | 109.85 | 14.99 | 214.95 | 0.4273 | 1077.6 | 999999 | |
| 5.90 | -2.00 | 3.22 | -2.00 | -19.31 | 109.79 | 14.93 | 215.25 | 0.4232 | 1121.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.72 | 109.34 | 14.49 | 213.87 | 0.4243 | 648.0 | 533.0 | |
| 0.94 | 5.38 | 0.51 | 2.94 | -19.50 | 109.26 | 14.40 | 214.03 | 0.4207 | 682.9 | 269.5 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -19.68 | 108.89 | 14.03 | 213.09 | 0.4199 | 973.0 | 814.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.02 | 108.44 | 13.58 | 213.19 | 0.4074 | 940.0 | 760.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.20 | 107.93 | 13.07 | 213.39 | 0.3921 | -981.0 | -781.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -17.76 | 107.77 | 12.91 | 213.72 | 0.3850 | -668.0 | -508.2 | |
| 0.00 | 9.49 | 0.00 | 5.11 | -18.61 | 107.48 | 12.62 | 211.90 | 0.3936 | 1126.0 | 862.8 | |
| 0.00 | 2.48 | 0.00 | 1.32 | -17.97 | 106.38 | 11.53 | 210.53 | 0.3759 | -883.0 | -601.4 | |
| 0.00 | 3.50 | 0.00 | 1.87 | -17.72 | 106.24 | 11.38 | 210.58 | 0.3712 | -984.0 | -803.5 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -18.72 | 106.05 | 11.20 | 208.78 | 0.3836 | -779.0 | -523.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -19.60 | 105.44 | 10.58 | 206.36 | 0.3914 | -257.0 | -204.1 | |
| 1.54 | 33.84 | 0.82 | 18.14 | -18.94 | 105.37 | 10.51 | 207.02 | 0.3814 | -1007.9 | -748.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.72 | 105.13 | 10.27 | 206.78 | 0.3766 | -830.0 | -678.7 | |
| 16.84 | -16.00 | 9.02 | -16.00 | -19.22 | 105.13 | 10.27 | 206.15 | 0.3838 | -1115.8 | 999999 | |
| 1.37 | -16.00 | 0.73 | -16.00 | -19.63 | 105.12 | 10.27 | 205.64 | 0.3896 | -736.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.06 | 103.03 | 8.17 | 201.54 | 0.3675 | 721.0 | 487.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
