SDO HMI 2014-12-01 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.96 | 89.55 | 21.15 | 48.57 | -19.21 | 107.67 | 13.35 | 212.27 | 0.4087 | -63.3 | 211.6 | |
|
previous
or next observation for the same group /

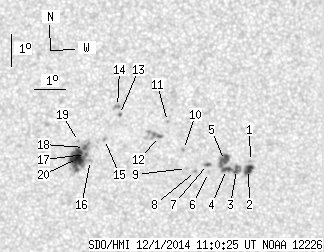

back to the solar disc SDO HMI 2014-12-01 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.71 | -19.41 | 110.73 | 16.41 | 217.63 | 0.4383 | 992.0 | 729.8 | |
| 4.79 | 8.20 | 2.64 | 4.52 | -19.66 | 110.69 | 16.37 | 217.20 | 0.4410 | 968.6 | 683.3 | |
| 2.22 | 21.19 | 1.22 | 11.63 | -19.66 | 110.29 | 15.98 | 216.55 | 0.4373 | 1045.4 | 866.6 | |
| 2.91 | -3.00 | 1.60 | -3.00 | -19.66 | 109.97 | 15.66 | 216.00 | 0.4342 | 1054.1 | 999999 | |
| 6.32 | -3.00 | 3.47 | -3.00 | -19.38 | 109.87 | 15.56 | 216.25 | 0.4298 | 1126.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.75 | 109.39 | 15.08 | 214.87 | 0.4300 | 789.0 | 541.5 | |
| 0.77 | 3.08 | 0.42 | 1.68 | -19.50 | 109.33 | 15.02 | 215.13 | 0.4263 | 775.7 | 593.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -19.72 | 108.96 | 14.65 | 214.17 | 0.4258 | 978.0 | 774.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.62 | 108.66 | 14.35 | 213.76 | 0.4219 | 750.0 | 567.2 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.02 | 108.51 | 14.20 | 214.35 | 0.4129 | 947.0 | 760.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -18.14 | 107.93 | 13.61 | 214.54 | 0.3962 | -863.0 | -692.6 | |
| 0.94 | 10.51 | 0.51 | 5.67 | -18.61 | 107.71 | 13.40 | 213.42 | 0.4003 | 870.2 | 790.2 | |
| 0.34 | 1.37 | 0.18 | 0.73 | -17.92 | 106.38 | 12.07 | 211.76 | 0.3796 | -817.0 | -680.3 | |
| 0.00 | 2.99 | 0.00 | 1.60 | -17.67 | 106.30 | 11.99 | 211.96 | 0.3755 | -987.0 | -784.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.70 | 105.96 | 11.64 | 209.77 | 0.3867 | -718.0 | -548.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.35 | 105.55 | 11.24 | 208.06 | 0.3927 | -568.0 | -462.2 | |
| 0.68 | 31.28 | 0.37 | 16.80 | -19.16 | 105.38 | 11.07 | 207.94 | 0.3887 | -801.5 | -760.5 | |
| 1.45 | -17.00 | 0.78 | -17.00 | -18.94 | 105.33 | 11.02 | 208.13 | 0.3853 | -1099.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.75 | 105.13 | 10.82 | 207.94 | 0.3811 | -798.0 | -615.6 | |
| 18.54 | -17.00 | 9.96 | -17.00 | -19.29 | 105.13 | 10.82 | 207.26 | 0.3886 | -1078.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
