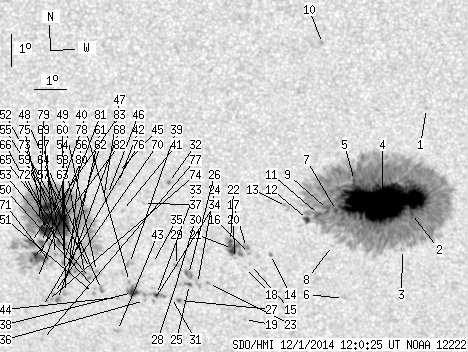

SDO HMI 2014-12-01 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 297.73 | 1449.70 | 160.22 | 780.60 | -19.65 | 84.00 | -9.76 | 156.55 | 0.3912 | 392.0 | 118.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | -16.33 | 88.94 | -4.82 | 164.71 | 0.3073 | -641.0 | -444.9 | |
| 0.26 | 959.66 | 0.14 | 509.49 | -19.61 | 88.37 | -5.39 | 165.78 | 0.3619 | 822.3 | 405.3 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -20.75 | 88.05 | -5.72 | 165.79 | 0.3812 | 410.0 | 182.3 | |
| 189.78 | -2.00 | 100.70 | -2.00 | -19.23 | 87.47 | -6.29 | 163.22 | 0.3599 | 1432.4 | 999999 | |
| 0.26 | -2.00 | 0.14 | -2.00 | -18.57 | 86.62 | -7.14 | 160.47 | 0.3541 | 1053.3 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -22.32 | 86.08 | -7.68 | 162.54 | 0.4139 | 546.0 | 474.5 | |
| 1.37 | -2.00 | 0.73 | -2.00 | -19.51 | 86.01 | -7.75 | 159.91 | 0.3719 | 824.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.62 | 85.83 | -7.94 | 160.54 | 0.3897 | 411.0 | 388.3 | |
| 4.36 | -2.00 | 2.32 | -2.00 | -19.48 | 85.73 | -8.04 | 159.21 | 0.3730 | 599.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -14.33 | 85.80 | -7.97 | 152.82 | 0.2953 | 938.0 | 667.5 | |
| 2.65 | -2.00 | 1.42 | -2.00 | -19.64 | 85.43 | -8.33 | 158.69 | 0.3771 | 674.8 | 999999 | |
| 2.65 | -2.00 | 1.42 | -2.00 | -19.80 | 85.07 | -8.69 | 158.03 | 0.3816 | 733.4 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.65 | -19.39 | 84.43 | -9.33 | 156.13 | 0.3796 | 799.0 | 547.3 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.91 | 83.82 | -9.94 | 156.47 | 0.4057 | -710.0 | -631.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -21.23 | 83.16 | -10.61 | 155.44 | 0.4147 | 728.0 | 561.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -20.88 | 83.15 | -10.61 | 155.05 | 0.4097 | 721.0 | 612.2 | |
| 0.00 | 3.67 | 0.00 | 1.99 | -20.69 | 83.07 | -10.70 | 154.67 | 0.4076 | 983.0 | 916.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -21.33 | 82.99 | -10.78 | 155.21 | 0.4172 | 582.0 | 489.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.00 | 82.82 | -10.94 | 156.61 | 0.4420 | 611.0 | 514.8 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -21.04 | 82.65 | -11.11 | 154.23 | 0.4154 | 583.0 | 521.5 | |
| 6.75 | 17.17 | 3.66 | 9.32 | -20.72 | 82.61 | -11.15 | 153.78 | 0.4112 | 981.2 | 803.1 | |
| 1.37 | -21.00 | 0.74 | -21.00 | -20.50 | 82.57 | -11.20 | 153.43 | 0.4084 | 966.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -21.84 | 81.75 | -12.02 | 153.36 | 0.4330 | 879.0 | 680.7 | |
| 0.00 | 4.02 | 0.00 | 2.21 | -21.84 | 81.39 | -12.38 | 152.69 | 0.4355 | 616.0 | 671.4 | |
| 0.77 | 3.16 | 0.42 | 1.74 | -21.88 | 81.12 | -12.64 | 152.24 | 0.4379 | 775.2 | 595.4 | |
| 0.00 | 5.30 | 0.00 | 2.91 | -21.56 | 81.12 | -12.64 | 151.86 | 0.4336 | 867.0 | 832.0 | |
| 0.77 | 2.05 | 0.43 | 1.13 | -22.39 | 80.75 | -13.02 | 152.15 | 0.4477 | -824.6 | -650.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -21.56 | 80.83 | -12.94 | 151.32 | 0.4358 | 439.0 | 389.2 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -21.27 | 80.75 | -13.01 | 150.84 | 0.4324 | 586.0 | 412.8 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.91 | 80.66 | -13.10 | 151.44 | 0.4418 | 553.0 | 464.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -22.29 | 80.49 | -13.27 | 151.59 | 0.4482 | -614.0 | -495.1 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -18.64 | 80.72 | -13.04 | 147.31 | 0.3976 | -818.0 | -593.4 | |
| 1.37 | 21.53 | 0.76 | 11.95 | -22.20 | 80.01 | -13.75 | 150.62 | 0.4506 | -828.5 | -589.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -22.39 | 79.89 | -13.87 | 150.64 | 0.4541 | -597.0 | -547.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.21 | 79.98 | -13.79 | 149.36 | 0.4377 | 391.0 | 299.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -22.39 | 79.60 | -14.17 | 150.13 | 0.4564 | -583.0 | -516.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.30 | 79.86 | -13.90 | 146.61 | 0.4138 | 669.0 | 432.1 | |
| 5.21 | -33.00 | 2.90 | -33.00 | -22.14 | 79.23 | -14.54 | 149.20 | 0.4559 | -970.5 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.65 | -21.21 | 79.23 | -14.54 | 148.03 | 0.4439 | -851.0 | -786.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -21.78 | 79.17 | -14.60 | 148.66 | 0.4519 | -771.0 | -710.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.53 | 79.16 | -14.60 | 145.65 | 0.4229 | -944.0 | -784.2 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -18.65 | 79.11 | -14.65 | 144.27 | 0.4122 | -893.0 | -754.3 | |
| 0.00 | 2.14 | 0.00 | 1.20 | -23.37 | 78.59 | -15.17 | 149.60 | 0.4768 | -735.0 | -643.6 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -22.30 | 78.71 | -15.05 | 148.53 | 0.4622 | -959.0 | -801.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -18.33 | 79.11 | -14.65 | 143.79 | 0.4083 | -879.0 | -668.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.02 | 78.72 | -15.04 | 144.14 | 0.4206 | -816.0 | -741.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -19.15 | 78.58 | -15.18 | 144.07 | 0.4234 | -857.0 | -656.8 | |
| 0.00 | 2.91 | 0.00 | 1.62 | -22.04 | 78.21 | -15.55 | 147.39 | 0.4630 | -934.0 | -789.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.47 | 78.11 | -15.65 | 146.49 | 0.4566 | -835.0 | -579.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -22.01 | 78.02 | -15.75 | 147.03 | 0.4643 | -768.0 | -632.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -22.17 | 77.93 | -15.83 | 147.10 | 0.4670 | -791.0 | -619.4 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -21.37 | 77.93 | -15.84 | 146.05 | 0.4571 | -932.0 | -806.9 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -21.66 | 77.86 | -15.90 | 146.32 | 0.4612 | -877.0 | -760.3 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -21.53 | 77.71 | -16.06 | 145.91 | 0.4609 | -916.0 | -773.0 | |
| 0.00 | 3.76 | 0.00 | 2.09 | -20.83 | 77.72 | -16.04 | 144.99 | 0.4521 | -817.0 | -824.1 | |
| 0.94 | 5.64 | 0.53 | 3.15 | -21.50 | 77.18 | -16.58 | 145.03 | 0.4652 | -927.8 | -798.7 | |
| 1.11 | 284.97 | 0.61 | 157.46 | -19.50 | 77.34 | -16.42 | 142.48 | 0.4395 | -1258.6 | -540.9 | |
| 6.07 | -57.00 | 3.35 | -57.00 | -20.01 | 77.25 | -16.51 | 143.08 | 0.4464 | -1141.7 | 999999 | |
| 0.60 | -57.00 | 0.33 | -57.00 | -20.61 | 77.19 | -16.58 | 143.82 | 0.4543 | -949.1 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.68 | -22.14 | 77.00 | -16.76 | 145.59 | 0.4746 | -781.0 | -649.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.82 | 77.04 | -16.72 | 145.24 | 0.4703 | -534.0 | -443.8 | |
| 0.00 | 2.14 | 0.00 | 1.19 | -21.18 | 77.05 | -16.71 | 144.40 | 0.4625 | -867.0 | -767.3 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -20.93 | 77.08 | -16.68 | 144.10 | 0.4591 | -859.0 | -695.8 | |
| 11.19 | -57.00 | 6.18 | -57.00 | -19.72 | 77.15 | -16.61 | 142.50 | 0.4439 | -1357.7 | 999999 | |
| 3.85 | -57.00 | 2.13 | -57.00 | -20.20 | 77.07 | -16.70 | 143.05 | 0.4504 | -885.4 | 999999 | |
| 1.62 | -57.00 | 0.90 | -57.00 | -20.55 | 76.96 | -16.80 | 143.38 | 0.4556 | -893.2 | 999999 | |
| 6.07 | -57.00 | 3.36 | -57.00 | -20.04 | 76.99 | -16.78 | 142.69 | 0.4493 | -1043.3 | 999999 | |
| 0.77 | 3.33 | 0.43 | 1.88 | -22.37 | 76.71 | -17.06 | 145.43 | 0.4800 | -789.4 | -662.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.93 | 76.82 | -16.94 | 143.68 | 0.4615 | -898.0 | -778.6 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -22.18 | 76.60 | -17.16 | 145.01 | 0.4786 | -884.0 | -720.8 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -21.22 | 76.65 | -17.11 | 143.81 | 0.4665 | -446.0 | -287.6 | |
| 16.15 | -57.00 | 8.94 | -57.00 | -19.79 | 76.72 | -17.04 | 141.90 | 0.4489 | -1116.9 | 999999 | |
| 8.46 | -57.00 | 4.67 | -57.00 | -19.38 | 76.77 | -17.00 | 141.36 | 0.4436 | -1235.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -22.40 | 76.37 | -17.39 | 144.96 | 0.4833 | -730.0 | -623.2 | |
| 9.74 | -57.00 | 5.41 | -57.00 | -20.17 | 76.58 | -17.19 | 142.23 | 0.4547 | -858.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.60 | 76.18 | -17.59 | 144.92 | 0.4874 | -602.0 | -373.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -23.67 | 76.03 | -17.74 | 146.04 | 0.5015 | -479.0 | -374.8 | |
| 1.97 | 25.04 | 1.10 | 13.99 | -20.55 | 76.40 | -17.36 | 142.50 | 0.4609 | -794.2 | -433.2 | |
| 0.26 | -57.00 | 0.14 | -57.00 | -19.88 | 76.41 | -17.35 | 141.56 | 0.4530 | -918.0 | 999999 | |
| 7.95 | 39.22 | 4.45 | 22.00 | -21.03 | 76.24 | -17.52 | 142.92 | 0.4680 | -908.7 | -332.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.70 | 76.13 | -17.64 | 143.66 | 0.4771 | -547.0 | -399.6 | |
| 0.85 | -80.00 | 0.48 | -80.00 | -21.12 | 76.00 | -17.76 | 142.69 | 0.4715 | -710.1 | 999999 | |
| 2.56 | -78.00 | 1.43 | -78.00 | -20.55 | 76.04 | -17.73 | 141.94 | 0.4644 | -775.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
