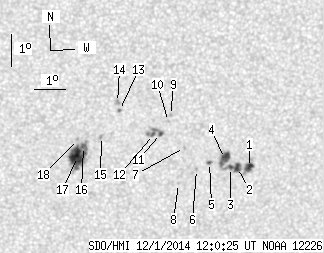

SDO HMI 2014-12-01 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.67 | 90.92 | 23.73 | 49.40 | -19.19 | 107.55 | 13.78 | 213.10 | 0.4122 | -115.3 | 104.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.53 | 9.83 | 2.50 | 5.43 | -19.67 | 110.76 | 16.99 | 218.19 | 0.4470 | 932.7 | 649.8 | |
| 4.10 | 21.28 | 2.26 | 11.72 | -19.67 | 110.36 | 16.60 | 217.56 | 0.4432 | 993.2 | 805.5 | |
| 1.20 | -2.00 | 0.66 | -2.00 | -19.67 | 110.14 | 16.37 | 217.19 | 0.4410 | 1090.0 | 999999 | |
| 7.18 | -2.00 | 3.95 | -2.00 | -19.38 | 109.91 | 16.15 | 217.23 | 0.4354 | 1079.8 | 999999 | |
| 0.85 | 2.05 | 0.47 | 1.13 | -19.51 | 109.43 | 15.67 | 216.25 | 0.4324 | 785.6 | 614.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -19.72 | 109.03 | 15.27 | 215.24 | 0.4314 | 925.0 | 818.4 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -19.03 | 108.58 | 14.81 | 215.45 | 0.4185 | 938.0 | 818.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -20.16 | 108.49 | 14.72 | 213.68 | 0.4321 | 664.0 | 557.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -18.02 | 108.04 | 14.27 | 215.98 | 0.4008 | -857.0 | -649.5 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -18.21 | 107.99 | 14.23 | 215.60 | 0.4027 | -761.0 | -479.6 | |
| 1.20 | 9.40 | 0.65 | 5.08 | -18.58 | 107.76 | 14.00 | 214.62 | 0.4054 | 859.5 | 784.7 | |
| 1.03 | -11.00 | 0.55 | -11.00 | -18.62 | 107.54 | 13.78 | 214.15 | 0.4038 | 1024.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -17.86 | 106.40 | 12.63 | 213.02 | 0.3837 | -805.0 | -720.3 | |
| 0.00 | 2.73 | 0.00 | 1.46 | -17.61 | 106.32 | 12.55 | 213.23 | 0.3796 | -1023.0 | -792.7 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -18.67 | 105.88 | 12.12 | 210.79 | 0.3901 | -827.0 | -521.8 | |
| 2.56 | 36.40 | 1.38 | 19.59 | -18.98 | 105.33 | 11.56 | 209.22 | 0.3900 | -1024.6 | -620.0 | |
| 21.02 | -16.00 | 11.31 | -16.00 | -19.30 | 105.16 | 11.39 | 208.46 | 0.3930 | -1052.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.76 | 105.12 | 11.36 | 209.08 | 0.3853 | -669.0 | -544.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
