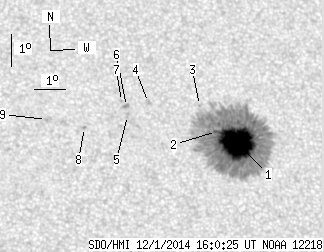

SDO HMI 2014-12-01 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.90 | 415.37 | 38.51 | 225.52 | 16.66 | 110.15 | 18.59 | 311.86 | 0.4117 | -1217.4 | -356.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.64 | 402.98 | 38.37 | 218.87 | 16.62 | 110.27 | 18.71 | 311.59 | 0.4127 | -1562.6 | -392.4 | |
| 0.26 | -1.00 | 0.14 | -1.00 | 16.96 | 109.62 | 18.06 | 313.20 | 0.4085 | -1047.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 17.77 | 109.15 | 17.59 | 315.41 | 0.4117 | -624.0 | -464.2 | |
| 0.00 | 3.07 | 0.00 | 1.66 | 17.87 | 107.51 | 15.94 | 318.30 | 0.3947 | 784.0 | 578.3 | |
| 0.00 | 2.31 | 0.00 | 1.24 | 17.47 | 106.80 | 15.23 | 318.85 | 0.3825 | 729.0 | 601.1 | |
| 0.00 | 2.82 | 0.00 | 1.51 | 17.75 | 106.79 | 15.22 | 319.36 | 0.3857 | 1001.0 | 810.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.90 | 106.64 | 15.08 | 319.91 | 0.3860 | 755.0 | 622.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 17.11 | 105.39 | 13.83 | 320.86 | 0.3634 | 946.0 | 773.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.36 | 104.20 | 12.64 | 323.75 | 0.3547 | 940.0 | 809.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
