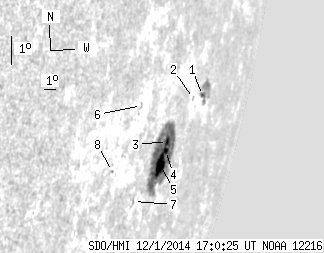

SDO HMI 2014-12-01 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.28 | 122.57 | 34.26 | 231.79 | -13.93 | 165.13 | 74.12 | 255.31 | 0.9660 | 365.6 | 133.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 14.69 | 2.92 | 34.26 | -12.33 | 167.91 | 76.89 | 257.17 | 0.9769 | 408.7 | -26.7 | |
| 0.00 | 1.37 | 0.00 | 2.85 | -12.40 | 166.80 | 75.78 | 257.02 | 0.9727 | 256.0 | 214.1 | |
| 2.22 | 102.92 | 4.11 | 189.06 | -13.68 | 164.83 | 73.82 | 255.55 | 0.9648 | 65.2 | 172.0 | |
| 1.88 | -3.00 | 3.50 | -3.00 | -13.95 | 164.85 | 73.83 | 255.27 | 0.9650 | 131.5 | 999999 | |
| 12.90 | -3.00 | 23.73 | -3.00 | -14.38 | 164.66 | 73.65 | 254.82 | 0.9643 | 521.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 2.09 | -12.53 | 161.39 | 70.37 | 256.44 | 0.9473 | -358.0 | -302.6 | |
| 0.00 | 1.45 | 0.00 | 2.42 | -15.49 | 162.80 | 71.78 | 253.49 | 0.9561 | 147.0 | 177.1 | |
| 0.00 | 0.77 | 0.00 | 1.11 | -14.52 | 160.11 | 69.10 | 254.21 | 0.9413 | -351.0 | -341.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
