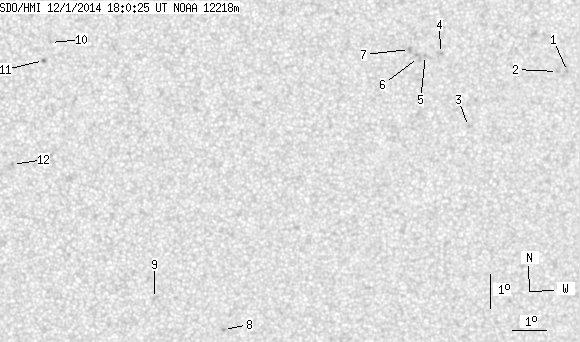

SDO HMI 2014-12-01 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.55 | 0.00 | 9.87 | -5.40 | 97.45 | 6.99 | 220.71 | 0.1883 | 373.6 | 413.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.53 | -3.93 | 105.01 | 14.55 | 251.77 | 0.2651 | 894.0 | 717.3 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -3.93 | 104.70 | 14.24 | 251.42 | 0.2602 | 931.0 | 753.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -5.55 | 102.03 | 11.56 | 240.95 | 0.2293 | 840.0 | 679.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -3.38 | 101.15 | 10.69 | 248.44 | 0.2000 | 826.0 | 797.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -3.44 | 100.70 | 10.24 | 247.31 | 0.1932 | 928.0 | 704.5 | |
| 0.00 | 3.67 | 0.00 | 1.85 | -3.50 | 100.49 | 10.03 | 246.60 | 0.1903 | 616.0 | 787.7 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -3.26 | 100.22 | 9.75 | 247.21 | 0.1843 | 1012.0 | 834.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -11.61 | 94.74 | 4.28 | 198.75 | 0.2285 | 988.0 | 820.9 | |
| 0.00 | 2.73 | 0.00 | 1.38 | -10.67 | 92.65 | 2.19 | 190.66 | 0.2037 | 161.0 | 259.8 | |
| 0.00 | 0.77 | 0.00 | 0.38 | -3.03 | 89.55 | -0.91 | 166.67 | 0.0694 | -636.0 | -417.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | -3.56 | 89.34 | -1.12 | 165.67 | 0.0793 | -1043.0 | -905.2 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -6.65 | 88.41 | -2.05 | 164.70 | 0.1355 | -1034.0 | -770.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
