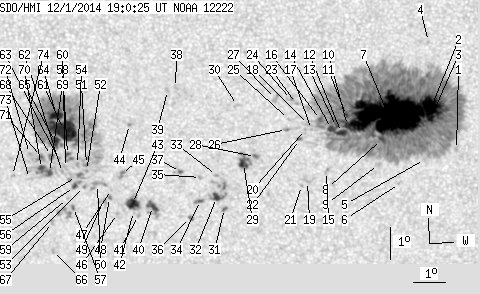

SDO HMI 2014-12-01 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 314.35 | 1511.47 | 167.52 | 805.60 | -19.72 | 84.27 | -5.63 | 166.15 | 0.3705 | 568.8 | 138.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.41 | 89.32 | -0.58 | 178.49 | 0.3640 | -140.0 | -63.3 | |
| 26.90 | 1028.75 | 14.17 | 543.28 | -19.05 | 88.55 | -1.36 | 176.23 | 0.3423 | 1531.1 | 430.8 | |
| 3.50 | -2.00 | 1.85 | -2.00 | -19.43 | 88.51 | -1.39 | 176.21 | 0.3485 | 1176.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.02 | 88.47 | -1.43 | 175.54 | 0.3088 | -660.0 | -480.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.73 | 88.31 | -1.60 | 175.94 | 0.3699 | -183.0 | -161.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -21.49 | 87.51 | -2.40 | 174.14 | 0.3834 | -757.0 | -483.8 | |
| 173.54 | -2.00 | 91.66 | -2.00 | -19.34 | 87.20 | -2.71 | 172.63 | 0.3491 | 1680.3 | 999999 | |
| 2.56 | -2.00 | 1.36 | -2.00 | -20.09 | 86.96 | -2.94 | 172.31 | 0.3619 | 59.5 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.55 | -20.89 | 86.85 | -3.06 | 172.33 | 0.3749 | -230.0 | -198.2 | |
| 3.25 | -2.00 | 1.72 | -2.00 | -19.65 | 85.90 | -4.00 | 169.35 | 0.3575 | 974.5 | 999999 | |
| 1.71 | -2.00 | 0.90 | -2.00 | -19.34 | 85.88 | -4.03 | 169.12 | 0.3525 | 1014.8 | 999999 | |
| 5.12 | -2.00 | 2.72 | -2.00 | -19.87 | 85.71 | -4.20 | 168.97 | 0.3616 | 936.7 | 999999 | |
| 0.85 | -2.00 | 0.45 | -2.00 | -19.68 | 85.56 | -4.35 | 168.47 | 0.3591 | 934.2 | 999999 | |
| 3.76 | -2.00 | 1.99 | -2.00 | -19.75 | 85.40 | -4.51 | 168.10 | 0.3606 | 873.0 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.24 | -21.11 | 85.20 | -4.71 | 168.41 | 0.3830 | 788.0 | 605.6 | |
| 1.79 | -2.00 | 0.95 | -2.00 | -19.46 | 85.06 | -4.85 | 167.06 | 0.3573 | 304.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.78 | 84.77 | -5.14 | 166.52 | 0.3634 | 47.0 | -40.3 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -19.62 | 84.68 | -5.23 | 166.19 | 0.3612 | 72.0 | 14.2 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -21.43 | 84.58 | -5.33 | 167.14 | 0.3901 | 620.0 | 511.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.78 | 84.58 | -5.33 | 166.05 | 0.3641 | -585.0 | -465.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.56 | 84.38 | -5.52 | 166.77 | 0.3928 | 554.0 | 429.6 | |
| 0.60 | 1.96 | 0.32 | 1.05 | -20.09 | 84.38 | -5.53 | 165.77 | 0.3699 | -666.3 | -533.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.96 | 84.32 | -5.59 | 164.78 | 0.3522 | 699.0 | 530.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -18.83 | 84.17 | -5.74 | 164.29 | 0.3509 | 979.0 | 845.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.46 | 84.05 | -5.85 | 164.49 | 0.3613 | -815.0 | -542.0 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -19.78 | 83.98 | -5.93 | 164.55 | 0.3666 | -830.0 | -717.1 | |
| 0.00 | 4.10 | 0.00 | 2.17 | -18.80 | 83.67 | -6.24 | 162.97 | 0.3528 | -702.0 | -639.6 | |
| 0.68 | 2.48 | 0.37 | 1.33 | -20.63 | 82.96 | -6.95 | 162.80 | 0.3845 | 1116.9 | 919.2 | |
| 5.72 | 14.01 | 3.08 | 7.52 | -20.86 | 82.57 | -7.34 | 162.08 | 0.3899 | 1028.3 | 901.6 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -19.02 | 82.46 | -7.44 | 160.16 | 0.3624 | 697.0 | 502.2 | |
| 0.77 | 2.39 | 0.42 | 1.30 | -22.30 | 81.88 | -8.03 | 161.77 | 0.4151 | 824.2 | 608.5 | |
| 3.76 | 19.81 | 2.04 | 10.74 | -21.94 | 81.64 | -8.27 | 160.98 | 0.4110 | 893.9 | 775.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -21.24 | 81.68 | -8.23 | 160.45 | 0.4002 | 926.0 | 698.6 | |
| 0.85 | 3.67 | 0.46 | 2.00 | -22.04 | 81.12 | -8.79 | 159.97 | 0.4152 | 730.1 | 388.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -21.30 | 81.16 | -8.74 | 159.39 | 0.4040 | 689.0 | 597.7 | |
| 0.85 | 2.48 | 0.47 | 1.35 | -22.59 | 80.76 | -9.15 | 159.72 | 0.4253 | -660.8 | -457.7 | |
| 0.51 | 2.65 | 0.28 | 1.43 | -21.11 | 80.53 | -9.37 | 157.86 | 0.4049 | 911.2 | 621.6 | |
| 0.00 | 2.39 | 0.00 | 1.27 | -18.46 | 80.54 | -9.37 | 154.93 | 0.3660 | -864.0 | -694.5 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -18.55 | 80.28 | -9.63 | 154.45 | 0.3692 | -946.0 | -731.7 | |
| 5.04 | 12.47 | 2.76 | 6.83 | -22.24 | 79.55 | -10.36 | 156.97 | 0.4272 | -1107.8 | -647.2 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -22.53 | 79.07 | -10.83 | 156.33 | 0.4343 | -624.0 | -553.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -22.40 | 78.92 | -10.99 | 155.91 | 0.4335 | -472.0 | -428.5 | |
| 8.97 | 15.03 | 4.91 | 8.24 | -22.14 | 78.91 | -11.00 | 155.62 | 0.4299 | -1061.2 | -777.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.63 | 79.00 | -10.90 | 152.96 | 0.3937 | -882.0 | -761.6 | |
| 0.00 | 4.10 | 0.00 | 2.23 | -21.21 | 78.63 | -11.28 | 154.06 | 0.4187 | -997.0 | -847.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -22.46 | 78.39 | -11.51 | 154.97 | 0.4379 | -684.0 | -572.9 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -21.69 | 78.26 | -11.64 | 153.89 | 0.4280 | -812.0 | -655.0 | |
| 0.34 | 1.20 | 0.19 | 0.66 | -21.95 | 78.18 | -11.73 | 154.01 | 0.4322 | -1016.8 | -891.0 | |
| 0.00 | 4.53 | 0.00 | 2.49 | -22.11 | 77.94 | -11.97 | 153.73 | 0.4361 | -643.0 | -634.5 | |
| 0.00 | 7.60 | 0.00 | 4.16 | -21.53 | 77.82 | -12.08 | 152.87 | 0.4289 | -841.0 | -809.2 | |
| 0.34 | 20.84 | 0.19 | 11.35 | -20.90 | 77.52 | -12.39 | 151.54 | 0.4224 | -985.5 | -544.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -21.09 | 77.50 | -12.40 | 151.74 | 0.4251 | -876.0 | -797.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.60 | 77.39 | -12.51 | 152.14 | 0.4329 | -855.0 | -785.3 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -20.90 | 77.23 | -12.68 | 150.99 | 0.4246 | -1029.0 | -877.5 | |
| 0.00 | 9.14 | 0.00 | 5.01 | -21.28 | 77.16 | -12.75 | 151.33 | 0.4303 | -859.0 | -789.7 | |
| 1.62 | 4.53 | 0.89 | 2.49 | -21.60 | 77.07 | -12.84 | 151.54 | 0.4354 | -817.8 | -824.6 | |
| 0.60 | 11.44 | 0.33 | 6.34 | -22.27 | 76.97 | -12.94 | 152.14 | 0.4452 | -911.9 | -696.2 | |
| 0.85 | 6.41 | 0.47 | 3.50 | -20.58 | 76.93 | -12.98 | 150.04 | 0.4227 | -1053.0 | -895.8 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -21.98 | 76.80 | -13.10 | 151.51 | 0.4426 | -749.0 | -655.3 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -20.99 | 76.83 | -13.08 | 150.36 | 0.4290 | -1004.0 | -796.9 | |
| 37.32 | 240.41 | 20.28 | 130.41 | -19.79 | 76.87 | -13.04 | 148.89 | 0.4126 | -1221.3 | -577.5 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -21.15 | 76.72 | -13.19 | 150.35 | 0.4320 | -662.0 | -573.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.71 | 76.63 | -13.28 | 149.63 | 0.4268 | -935.0 | -816.1 | |
| 8.20 | -61.00 | 4.44 | -61.00 | -19.35 | 76.68 | -13.22 | 147.93 | 0.4083 | -1316.9 | 999999 | |
| 6.66 | -61.00 | 3.63 | -61.00 | -20.17 | 76.58 | -13.33 | 148.84 | 0.4200 | -922.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -23.67 | 76.17 | -13.74 | 152.29 | 0.4698 | -718.0 | -570.2 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -22.76 | 76.23 | -13.67 | 151.39 | 0.4572 | -558.0 | -474.1 | |
| 1.20 | 3.50 | 0.65 | 1.92 | -20.61 | 76.41 | -13.50 | 149.11 | 0.4273 | -924.9 | -757.3 | |
| 2.65 | 21.01 | 1.46 | 11.55 | -21.15 | 76.29 | -13.61 | 149.58 | 0.4354 | -892.0 | -546.4 | |
| 3.16 | -69.00 | 1.74 | -69.00 | -21.03 | 76.05 | -13.86 | 148.98 | 0.4357 | -923.4 | 999999 | |
| 0.68 | 7.26 | 0.37 | 3.98 | -20.65 | 76.08 | -13.83 | 148.55 | 0.4304 | -921.6 | -718.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -20.55 | 75.70 | -14.21 | 147.74 | 0.4324 | -149.0 | -190.2 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -21.35 | 75.62 | -14.29 | 148.63 | 0.4434 | -109.0 | -155.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.25 | 75.07 | -14.83 | 147.56 | 0.4467 | -586.0 | -500.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
