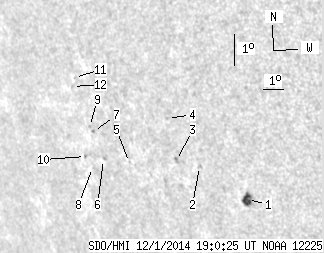

SDO HMI 2014-12-01 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.32 | 19.64 | 4.83 | 15.80 | -15.46 | 40.01 | -49.90 | 110.58 | 0.7888 | 116.3 | 68.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.32 | 9.31 | 4.83 | 7.11 | -16.43 | 42.82 | -47.09 | 112.58 | 0.7631 | 785.2 | 607.2 | |
| 0.00 | 1.71 | 0.00 | 1.35 | -15.43 | 40.92 | -48.98 | 110.72 | 0.7799 | 589.0 | 469.0 | |
| 0.00 | 2.22 | 0.00 | 1.78 | -15.26 | 39.89 | -50.02 | 110.20 | 0.7900 | 616.0 | 423.9 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -13.97 | 39.87 | -50.04 | 108.60 | 0.7871 | 463.0 | 428.1 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -15.34 | 37.55 | -52.36 | 109.68 | 0.8132 | 220.0 | 225.7 | |
| 0.00 | 0.60 | 0.00 | 0.52 | -15.27 | 36.24 | -53.66 | 109.26 | 0.8254 | -674.0 | -640.0 | |
| 0.00 | 1.02 | 0.00 | 0.89 | -14.41 | 36.04 | -53.87 | 108.19 | 0.8256 | -604.0 | -583.2 | |
| 0.00 | 0.43 | 0.00 | 0.38 | -15.52 | 35.57 | -54.34 | 109.40 | 0.8321 | -476.0 | -478.6 | |
| 0.00 | 0.68 | 0.00 | 0.60 | -14.26 | 35.88 | -54.02 | 107.97 | 0.8268 | -618.0 | -535.8 | |
| 0.00 | 1.02 | 0.00 | 0.91 | -15.19 | 35.33 | -54.58 | 108.95 | 0.8337 | -572.0 | -475.7 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -12.77 | 35.60 | -54.31 | 106.13 | 0.8267 | -531.0 | -479.7 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -13.04 | 35.41 | -54.50 | 106.42 | 0.8290 | -364.0 | -337.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
