SDO HMI 2014-12-01 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 339.13 | 1578.11 | 180.65 | 840.57 | -19.74 | 84.24 | -5.12 | 167.43 | 0.3687 | 535.3 | 138.6 | |
|
previous
or next observation for the same group /

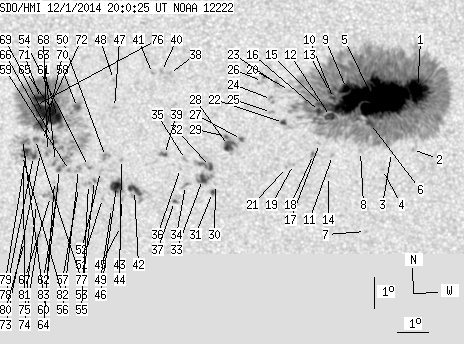

back to the solar disc SDO HMI 2014-12-01 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.14 | 1065.65 | 17.46 | 562.57 | -19.09 | 88.56 | -0.80 | 177.79 | 0.3423 | 1468.9 | 417.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.96 | 88.39 | -0.97 | 177.57 | 0.3730 | -106.0 | -127.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.05 | 87.72 | -1.63 | 175.92 | 0.3751 | 602.0 | 360.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.60 | 87.43 | -1.92 | 175.32 | 0.3843 | -894.0 | -736.7 | |
| 168.41 | -1.00 | 88.93 | -1.00 | -19.34 | 87.18 | -2.18 | 174.07 | 0.3481 | 1688.9 | 999999 | |
| 4.53 | -1.00 | 2.40 | -1.00 | -20.13 | 87.07 | -2.28 | 174.03 | 0.3611 | 69.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -23.59 | 86.85 | -2.50 | 174.47 | 0.4170 | 644.0 | 565.8 | |
| 0.00 | 2.14 | 0.00 | 1.14 | -21.02 | 86.74 | -2.61 | 173.47 | 0.3761 | -300.0 | -255.1 | |
| 9.31 | -1.00 | 4.91 | -1.00 | -19.03 | 86.34 | -3.02 | 171.67 | 0.3446 | 1395.6 | 999999 | |
| 2.73 | -1.00 | 1.44 | -1.00 | -19.34 | 85.92 | -3.43 | 170.70 | 0.3508 | 971.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.15 | 85.85 | -3.50 | 171.34 | 0.3800 | 804.0 | 625.4 | |
| 5.89 | -1.00 | 3.13 | -1.00 | -19.91 | 85.82 | -3.54 | 170.69 | 0.3602 | 894.0 | 999999 | |
| 2.31 | -1.00 | 1.22 | -1.00 | -19.15 | 85.83 | -3.52 | 170.36 | 0.3480 | 952.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -21.82 | 85.71 | -3.65 | 171.27 | 0.3911 | 684.0 | 546.9 | |
| 0.94 | -1.00 | 0.50 | -1.00 | -19.56 | 85.57 | -3.78 | 169.89 | 0.3553 | 866.3 | 999999 | |
| 3.76 | -1.00 | 1.99 | -1.00 | -19.75 | 85.47 | -3.88 | 169.73 | 0.3586 | 850.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.77 | 85.45 | -3.91 | 170.18 | 0.3750 | 433.0 | 385.8 | |
| 0.00 | 2.22 | 0.00 | 1.19 | -21.12 | 85.25 | -4.11 | 169.86 | 0.3811 | 816.0 | 671.1 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -21.44 | 84.60 | -4.75 | 168.49 | 0.3881 | 676.0 | 603.2 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -19.09 | 84.55 | -4.80 | 166.92 | 0.3511 | 333.0 | 154.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.53 | 84.38 | -4.98 | 168.01 | 0.3904 | 588.0 | 475.9 | |
| 1.88 | 5.55 | 1.00 | 2.96 | -20.10 | 84.33 | -5.02 | 167.03 | 0.3680 | -791.5 | -225.6 | |
| 0.00 | 3.16 | 0.00 | 1.67 | -18.87 | 84.15 | -5.20 | 165.71 | 0.3492 | 888.0 | 785.4 | |
| 0.00 | 3.07 | 0.00 | 1.63 | -19.37 | 83.98 | -5.38 | 165.63 | 0.3578 | -475.0 | -697.9 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -19.78 | 83.96 | -5.39 | 165.89 | 0.3644 | -918.0 | -710.9 | |
| 0.00 | 4.27 | 0.00 | 2.26 | -18.81 | 83.71 | -5.64 | 164.51 | 0.3500 | -757.0 | -556.2 | |
| 0.85 | 2.22 | 0.46 | 1.19 | -20.64 | 82.98 | -6.38 | 164.14 | 0.3819 | 1071.0 | 879.7 | |
| 6.83 | 14.86 | 3.67 | 7.97 | -20.83 | 82.56 | -6.80 | 163.30 | 0.3867 | 1074.1 | 762.3 | |
| 0.68 | -28.00 | 0.37 | -28.00 | -20.54 | 82.51 | -6.85 | 162.96 | 0.3826 | 967.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.08 | 82.08 | -7.28 | 163.21 | 0.4080 | 702.0 | 511.5 | |
| 1.37 | 3.07 | 0.74 | 1.67 | -22.33 | 81.97 | -7.39 | 163.17 | 0.4124 | 707.6 | 379.1 | |
| 2.05 | 28.35 | 1.11 | 15.33 | -21.50 | 81.95 | -7.41 | 162.47 | 0.3999 | 1078.8 | 760.6 | |
| 4.10 | -32.00 | 2.22 | -32.00 | -21.92 | 81.67 | -7.69 | 162.20 | 0.4076 | 914.6 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.90 | -22.11 | 81.11 | -8.24 | 161.17 | 0.4133 | 658.0 | 422.7 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -21.28 | 81.16 | -8.19 | 160.55 | 0.4005 | 754.0 | 552.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -21.57 | 80.98 | -8.37 | 160.42 | 0.4058 | 629.0 | 521.1 | |
| 0.77 | 2.14 | 0.42 | 1.17 | -22.63 | 80.72 | -8.63 | 160.80 | 0.4230 | -694.7 | -515.8 | |
| 0.00 | 2.90 | 0.00 | 1.54 | -18.56 | 80.80 | -8.55 | 156.97 | 0.3620 | -876.0 | -717.1 | |
| 1.37 | 3.84 | 0.74 | 2.08 | -21.12 | 80.50 | -8.86 | 158.96 | 0.4019 | 862.8 | 628.8 | |
| 0.00 | 2.48 | 0.00 | 1.32 | -18.50 | 80.55 | -8.80 | 156.30 | 0.3627 | -959.0 | -823.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.56 | 80.26 | -9.09 | 155.70 | 0.3655 | -943.0 | -810.4 | |
| 6.06 | 15.88 | 3.31 | 8.69 | -22.27 | 79.45 | -9.90 | 157.90 | 0.4249 | -1047.5 | -609.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -22.56 | 79.01 | -10.35 | 157.31 | 0.4318 | -669.0 | -582.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -21.28 | 79.10 | -10.25 | 156.20 | 0.4127 | -834.0 | -725.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -23.44 | 78.90 | -10.45 | 157.94 | 0.4449 | -728.0 | -510.9 | |
| 8.97 | 13.84 | 4.91 | 7.57 | -22.15 | 78.88 | -10.48 | 156.64 | 0.4266 | -1065.8 | -785.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -19.63 | 78.99 | -10.36 | 154.12 | 0.3898 | -912.0 | -755.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -18.75 | 79.02 | -10.34 | 153.09 | 0.3770 | -689.0 | -518.8 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -22.85 | 78.66 | -10.70 | 156.92 | 0.4381 | -649.0 | -504.8 | |
| 0.00 | 4.87 | 0.00 | 2.65 | -21.19 | 78.59 | -10.76 | 155.07 | 0.4147 | -1026.0 | -869.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -22.53 | 78.39 | -10.96 | 156.08 | 0.4352 | -653.0 | -572.0 | |
| 0.00 | 3.16 | 0.00 | 1.73 | -21.67 | 78.40 | -10.96 | 155.19 | 0.4229 | -798.0 | -551.1 | |
| 0.43 | 1.28 | 0.23 | 0.70 | -21.95 | 78.18 | -11.18 | 155.07 | 0.4284 | -963.0 | -898.6 | |
| 0.00 | 3.07 | 0.00 | 1.68 | -21.51 | 78.02 | -11.33 | 154.28 | 0.4232 | -815.0 | -806.0 | |
| 0.00 | 4.18 | 0.00 | 2.30 | -22.08 | 77.97 | -11.38 | 154.82 | 0.4316 | -857.0 | -666.1 | |
| 0.00 | 4.10 | 0.00 | 2.24 | -21.60 | 77.69 | -11.67 | 153.74 | 0.4268 | -812.0 | -778.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -22.18 | 77.64 | -11.72 | 154.28 | 0.4352 | -684.0 | -503.2 | |
| 2.39 | 236.22 | 1.29 | 127.87 | -19.63 | 77.81 | -11.54 | 151.64 | 0.3985 | -1076.6 | -540.7 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -21.64 | 77.39 | -11.96 | 153.22 | 0.4294 | -906.0 | -656.2 | |
| 1.02 | 51.33 | 0.56 | 27.97 | -21.60 | 77.07 | -12.28 | 152.57 | 0.4313 | -835.1 | -679.6 | |
| 8.80 | -58.00 | 4.77 | -58.00 | -19.95 | 77.14 | -12.21 | 150.70 | 0.4080 | -1176.4 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -22.28 | 76.94 | -12.41 | 153.10 | 0.4414 | -987.0 | -806.7 | |
| 0.00 | 3.67 | 0.00 | 2.01 | -21.35 | 76.96 | -12.39 | 152.07 | 0.4285 | -846.0 | -738.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -21.99 | 76.87 | -12.48 | 152.64 | 0.4380 | -592.0 | -505.4 | |
| 13.15 | -58.00 | 7.12 | -58.00 | -19.70 | 77.00 | -12.35 | 150.10 | 0.4057 | -1410.3 | 999999 | |
| 0.85 | -60.00 | 0.47 | -60.00 | -20.58 | 76.93 | -12.42 | 151.08 | 0.4183 | -1135.7 | 999999 | |
| 0.00 | 8.20 | 0.00 | 4.53 | -22.47 | 76.70 | -12.66 | 152.86 | 0.4458 | -660.0 | -665.3 | |
| 0.00 | 5.12 | 0.00 | 2.80 | -21.03 | 76.73 | -12.62 | 151.25 | 0.4259 | -825.0 | -756.9 | |
| 15.97 | -58.00 | 8.66 | -58.00 | -19.82 | 76.70 | -12.65 | 149.68 | 0.4098 | -1100.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.68 | 76.63 | -12.72 | 150.63 | 0.4220 | -886.0 | -817.4 | |
| 12.21 | -58.00 | 6.61 | -58.00 | -19.35 | 76.65 | -12.71 | 148.93 | 0.4039 | -1250.1 | 999999 | |
| 8.63 | -58.00 | 4.69 | -58.00 | -20.17 | 76.58 | -12.78 | 149.89 | 0.4155 | -906.0 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -21.09 | 76.50 | -12.86 | 150.89 | 0.4286 | -758.0 | -640.4 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -23.73 | 76.17 | -13.18 | 153.31 | 0.4667 | -847.0 | -713.2 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -22.73 | 76.21 | -13.14 | 152.28 | 0.4528 | -702.0 | -535.9 | |
| 2.90 | -58.00 | 1.57 | -58.00 | -19.57 | 76.47 | -12.89 | 148.88 | 0.4084 | -1021.0 | 999999 | |
| 1.02 | 2.65 | 0.56 | 1.45 | -20.65 | 76.37 | -12.98 | 150.11 | 0.4236 | -998.8 | -841.9 | |
| 1.71 | 19.39 | 0.94 | 10.64 | -21.19 | 76.26 | -13.09 | 150.57 | 0.4317 | -849.0 | -558.0 | |
| 3.50 | -78.00 | 1.92 | -78.00 | -21.03 | 76.05 | -13.31 | 149.98 | 0.4313 | -907.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.93 | 75.69 | -13.67 | 152.70 | 0.4727 | -798.0 | -586.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.35 | 75.92 | -13.43 | 150.15 | 0.4365 | -559.0 | -331.8 | |
| 0.60 | -78.00 | 0.33 | -78.00 | -21.16 | 75.91 | -13.45 | 149.88 | 0.4341 | -722.9 | 999999 | |
| 0.00 | 11.02 | 0.00 | 6.03 | -20.65 | 75.95 | -13.40 | 149.33 | 0.4269 | -709.0 | -581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
