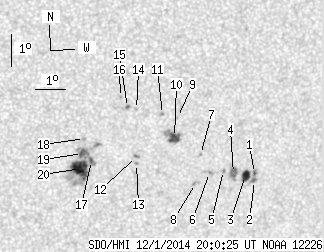

SDO HMI 2014-12-01 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.67 | 113.65 | 20.84 | 62.98 | -19.21 | 107.10 | 17.74 | 219.91 | 0.4493 | -55.0 | 55.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-01 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 2.39 | 0.49 | 1.36 | -19.62 | 111.03 | 21.68 | 224.97 | 0.4944 | 800.5 | 643.4 | |
| 0.00 | 2.14 | 0.00 | 1.22 | -19.85 | 111.07 | 21.71 | 224.67 | 0.4970 | 691.0 | 605.9 | |
| 5.98 | 8.20 | 3.40 | 4.66 | -19.69 | 110.74 | 21.38 | 224.50 | 0.4918 | 997.4 | 680.8 | |
| 0.00 | 8.28 | 0.00 | 4.69 | -19.62 | 110.33 | 20.97 | 224.06 | 0.4867 | 1062.0 | 875.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -19.52 | 109.98 | 20.62 | 223.75 | 0.4820 | 937.0 | 791.4 | |
| 0.00 | 3.16 | 0.00 | 1.78 | -19.58 | 109.52 | 20.16 | 223.04 | 0.4778 | 918.0 | 807.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.01 | 109.14 | 19.79 | 223.40 | 0.4678 | 809.0 | 679.0 | |
| 0.00 | 2.73 | 0.00 | 1.54 | -19.93 | 109.09 | 19.74 | 221.93 | 0.4771 | 829.0 | 636.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -17.85 | 108.25 | 18.89 | 223.98 | 0.4457 | -535.0 | -370.8 | |
| 6.75 | 13.66 | 3.74 | 7.57 | -18.47 | 108.22 | 18.87 | 222.93 | 0.4522 | 951.7 | 827.4 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -17.75 | 107.75 | 18.39 | 223.40 | 0.4392 | 897.0 | 708.4 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -19.06 | 107.04 | 17.68 | 220.22 | 0.4464 | 993.0 | 769.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -19.28 | 107.06 | 17.71 | 219.92 | 0.4492 | 774.0 | 733.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.59 | 106.88 | 17.53 | 222.33 | 0.4282 | -769.0 | -475.1 | |
| 0.43 | 1.45 | 0.23 | 0.79 | -17.53 | 106.58 | 17.23 | 221.96 | 0.4243 | -938.0 | -830.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -17.21 | 106.33 | 16.97 | 222.06 | 0.4180 | -884.0 | -758.8 | |
| 1.28 | 59.78 | 0.70 | 32.81 | -19.18 | 105.58 | 16.22 | 217.69 | 0.4334 | -768.5 | -520.3 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -18.49 | 105.28 | 15.93 | 218.25 | 0.4222 | -805.0 | -712.4 | |
| 3.42 | -17.00 | 1.87 | -17.00 | -18.96 | 105.26 | 15.91 | 217.50 | 0.4277 | -1106.4 | 999999 | |
| 18.96 | -17.00 | 10.41 | -17.00 | -19.43 | 105.24 | 15.89 | 216.76 | 0.4332 | -1082.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
