SDO HMI 2014-12-01 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.55 | 402.20 | 37.48 | 222.98 | 16.65 | 110.04 | 21.79 | 307.62 | 0.4509 | -1021.2 | -343.9 | |
|
previous
or next observation for the same group /

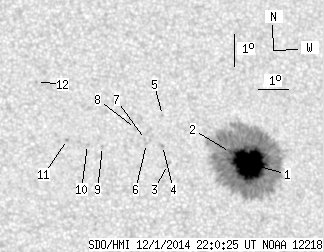

back to the solar disc SDO HMI 2014-12-01 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.59 | 388.78 | 36.39 | 215.69 | 16.61 | 110.18 | 21.93 | 307.36 | 0.4523 | -1511.2 | -382.3 | |
| 1.96 | -1.00 | 1.09 | -1.00 | 16.95 | 109.63 | 21.38 | 308.66 | 0.4484 | -1075.1 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.35 | 16.59 | 107.51 | 19.26 | 310.79 | 0.4194 | 711.0 | 599.4 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 17.18 | 107.41 | 19.16 | 312.03 | 0.4240 | 636.0 | 593.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.10 | 107.51 | 19.27 | 313.55 | 0.4345 | 653.0 | 496.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 17.24 | 106.89 | 18.64 | 312.89 | 0.4185 | 785.0 | 567.4 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 17.37 | 106.87 | 18.63 | 313.15 | 0.4196 | 827.0 | 672.6 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 17.71 | 106.58 | 18.33 | 314.20 | 0.4198 | 790.0 | 548.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 17.16 | 105.45 | 17.20 | 314.95 | 0.4011 | 824.0 | 635.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 17.22 | 104.97 | 16.73 | 315.85 | 0.3964 | 853.0 | 583.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 17.38 | 104.34 | 16.09 | 317.20 | 0.3911 | 902.0 | 737.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 19.18 | 103.51 | 15.26 | 321.78 | 0.4036 | 696.0 | 576.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
