SDO HMI 2014-12-01 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.47 | 411.36 | 33.68 | 228.93 | 16.66 | 110.09 | 22.39 | 306.96 | 0.4585 | -1063.2 | -357.5 | |
|
previous
or next observation for the same group /

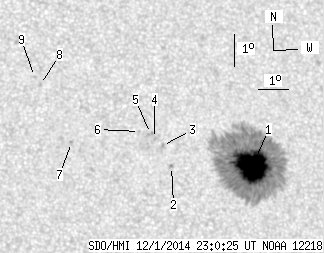

back to the solar disc SDO HMI 2014-12-01 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.47 | 399.57 | 33.68 | 222.51 | 16.63 | 110.20 | 22.50 | 306.75 | 0.4596 | -1490.7 | -390.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.61 | 107.52 | 19.82 | 310.07 | 0.4264 | 820.0 | 674.6 | |
| 0.00 | 2.14 | 0.00 | 1.17 | 17.26 | 107.29 | 19.60 | 311.58 | 0.4300 | 750.0 | 576.4 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 17.48 | 107.05 | 19.36 | 312.31 | 0.4293 | 571.0 | 566.4 | |
| 0.00 | 2.39 | 0.00 | 1.31 | 17.63 | 106.94 | 19.24 | 312.75 | 0.4296 | 652.0 | 653.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 17.70 | 106.59 | 18.89 | 313.37 | 0.4261 | 768.0 | 594.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 17.37 | 104.34 | 16.64 | 316.27 | 0.3971 | 926.0 | 766.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 19.17 | 103.51 | 15.81 | 320.81 | 0.4091 | 728.0 | 559.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 19.42 | 103.34 | 15.64 | 321.51 | 0.4103 | 680.0 | 468.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
