SDO HMI 2014-12-01 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 382.83 | 1644.02 | 203.49 | 873.79 | -19.80 | 84.28 | -3.42 | 171.69 | 0.3643 | 568.1 | 113.1 | |
|
previous
or next observation for the same group /

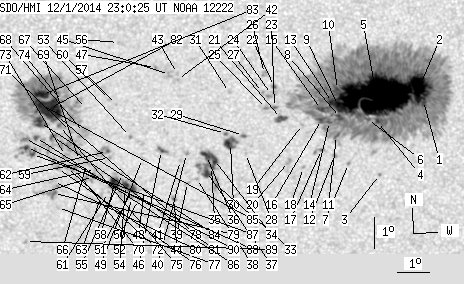

back to the solar disc SDO HMI 2014-12-01 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.01 | 1101.16 | 2.12 | 580.97 | -19.52 | 88.68 | 0.99 | 182.67 | 0.3492 | 1026.7 | 399.8 | |
| 34.76 | -1.00 | 18.31 | -1.00 | -19.08 | 88.55 | 0.86 | 182.38 | 0.3419 | 1405.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.87 | 87.29 | -0.40 | 179.03 | 0.3872 | -821.0 | -709.8 | |
| 1.71 | -1.00 | 0.91 | -1.00 | -20.18 | 87.24 | -0.46 | 178.80 | 0.3598 | 108.2 | 999999 | |
| 190.82 | -1.00 | 100.70 | -1.00 | -19.36 | 87.21 | -0.49 | 178.67 | 0.3463 | 1637.2 | 999999 | |
| 1.45 | -1.00 | 0.77 | -1.00 | -20.12 | 86.92 | -0.77 | 177.97 | 0.3589 | 469.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -21.52 | 86.31 | -1.39 | 176.61 | 0.3821 | -740.0 | -583.1 | |
| 3.42 | -1.00 | 1.81 | -1.00 | -20.06 | 86.07 | -1.62 | 175.73 | 0.3586 | 825.5 | 999999 | |
| 5.89 | -1.00 | 3.12 | -1.00 | -19.68 | 86.01 | -1.68 | 175.48 | 0.3525 | 1095.1 | 999999 | |
| 1.96 | -1.00 | 1.04 | -1.00 | -19.17 | 85.99 | -1.71 | 175.29 | 0.3442 | 1087.6 | 999999 | |
| 1.54 | -1.00 | 0.82 | -1.00 | -20.63 | 85.94 | -1.76 | 175.51 | 0.3680 | 524.9 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.05 | -21.26 | 85.87 | -1.83 | 175.47 | 0.3784 | 798.0 | 653.1 | |
| 4.36 | -1.00 | 2.30 | -1.00 | -19.58 | 85.83 | -1.87 | 174.96 | 0.3512 | 1025.9 | 999999 | |
| 2.05 | -1.00 | 1.09 | -1.00 | -20.18 | 85.72 | -1.97 | 174.85 | 0.3611 | 523.3 | 999999 | |
| 3.42 | -1.00 | 1.81 | -1.00 | -19.80 | 85.48 | -2.22 | 174.09 | 0.3553 | 768.3 | 999999 | |
| 4.44 | -1.00 | 2.36 | -1.00 | -20.12 | 85.47 | -2.22 | 174.18 | 0.3605 | 589.6 | 999999 | |
| 0.51 | 4.27 | 0.27 | 2.28 | -21.07 | 85.46 | -2.24 | 174.41 | 0.3759 | 801.8 | 532.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -21.65 | 84.88 | -2.82 | 173.17 | 0.3862 | 705.0 | 462.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.28 | 84.87 | -2.82 | 172.68 | 0.3642 | 390.0 | 395.8 | |
| 0.00 | 2.99 | 0.00 | 1.60 | -21.45 | 84.40 | -3.29 | 171.97 | 0.3841 | 647.0 | 633.8 | |
| 3.84 | 7.77 | 2.04 | 4.13 | -20.09 | 84.21 | -3.48 | 170.91 | 0.3626 | -920.9 | -598.7 | |
| 0.77 | 1.54 | 0.41 | 0.81 | -19.08 | 84.02 | -3.68 | 169.89 | 0.3469 | 770.7 | 575.0 | |
| 0.51 | 1.79 | 0.27 | 0.95 | -19.74 | 84.00 | -3.69 | 170.19 | 0.3576 | -909.5 | -641.8 | |
| 0.00 | 4.95 | 0.00 | 2.62 | -19.33 | 83.92 | -3.78 | 169.76 | 0.3512 | -199.0 | -326.4 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -19.77 | 83.75 | -3.95 | 169.55 | 0.3588 | -1093.0 | -771.5 | |
| 0.00 | 3.93 | 0.00 | 2.07 | -18.67 | 83.71 | -3.98 | 168.84 | 0.3412 | -631.0 | -512.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.27 | 83.64 | -4.06 | 168.98 | 0.3511 | -869.0 | -627.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.20 | 83.04 | -4.65 | 168.58 | 0.3838 | 681.0 | 486.0 | |
| 0.68 | 2.31 | 0.36 | 1.23 | -20.63 | 83.00 | -4.70 | 168.15 | 0.3748 | 985.9 | 793.6 | |
| 8.20 | 12.64 | 4.39 | 6.76 | -20.88 | 82.58 | -5.12 | 167.28 | 0.3803 | 1034.1 | 754.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -19.27 | 82.60 | -5.10 | 166.27 | 0.3547 | 813.0 | 635.8 | |
| 0.51 | 1.45 | 0.27 | 0.78 | -20.56 | 82.43 | -5.27 | 166.72 | 0.3758 | 996.5 | 869.1 | |
| 0.51 | 5.55 | 0.28 | 3.00 | -22.22 | 82.08 | -5.62 | 166.95 | 0.4031 | 709.5 | 293.8 | |
| 4.70 | 34.42 | 2.53 | 18.53 | -21.39 | 82.05 | -5.65 | 166.36 | 0.3903 | 1128.9 | 716.0 | |
| 2.31 | -34.00 | 1.24 | -34.00 | -21.61 | 81.94 | -5.75 | 166.27 | 0.3942 | 991.3 | 999999 | |
| 5.38 | -34.00 | 2.89 | -34.00 | -21.26 | 81.80 | -5.90 | 165.70 | 0.3893 | 1144.4 | 999999 | |
| 6.41 | -34.00 | 3.45 | -34.00 | -21.77 | 81.78 | -5.92 | 165.99 | 0.3973 | 907.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.00 | 81.45 | -6.25 | 165.40 | 0.4021 | 379.0 | 349.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -22.13 | 81.15 | -6.54 | 164.83 | 0.4053 | 428.0 | 379.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -21.20 | 81.16 | -6.53 | 164.19 | 0.3909 | 871.0 | 709.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.42 | 80.96 | -6.73 | 163.90 | 0.3953 | 519.0 | 436.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.86 | 80.98 | -6.71 | 161.79 | 0.3556 | -737.0 | -598.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.67 | 80.99 | -6.71 | 161.63 | 0.3527 | -878.0 | -758.5 | |
| 0.68 | 2.22 | 0.37 | 1.21 | -22.67 | 80.71 | -6.99 | 164.25 | 0.4156 | -826.4 | -646.5 | |
| 0.00 | 5.21 | 0.00 | 2.76 | -18.70 | 80.74 | -6.96 | 161.02 | 0.3545 | -720.0 | -661.7 | |
| 1.71 | 5.64 | 0.92 | 3.03 | -21.10 | 80.37 | -7.33 | 162.31 | 0.3932 | 945.6 | 656.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.48 | 80.31 | -7.39 | 159.72 | 0.3535 | -1064.0 | -885.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.35 | 79.76 | -7.94 | 162.00 | 0.4151 | -417.0 | -412.8 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -21.36 | 79.75 | -7.95 | 161.15 | 0.4002 | -504.0 | -367.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.68 | 79.54 | -8.15 | 161.81 | 0.4210 | -565.0 | -502.4 | |
| 4.36 | 33.65 | 2.37 | 18.32 | -22.35 | 79.37 | -8.33 | 161.18 | 0.4170 | -900.1 | -620.3 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -22.61 | 79.32 | -8.38 | 161.30 | 0.4211 | -609.0 | -477.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -20.66 | 79.40 | -8.29 | 159.75 | 0.3915 | -713.0 | -590.8 | |
| 3.93 | -51.00 | 2.14 | -51.00 | -22.23 | 79.15 | -8.55 | 160.62 | 0.4163 | -1059.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.84 | 79.08 | -8.62 | 160.13 | 0.4109 | -734.0 | -536.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.70 | 79.18 | -8.51 | 156.03 | 0.3487 | -881.0 | -549.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -19.65 | 79.02 | -8.68 | 157.85 | 0.3787 | -815.0 | -665.4 | |
| 8.54 | -51.00 | 4.65 | -51.00 | -22.16 | 78.80 | -8.90 | 159.83 | 0.4172 | -1061.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -21.33 | 78.69 | -9.00 | 158.84 | 0.4055 | -828.0 | -716.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.49 | 78.80 | -8.89 | 157.19 | 0.3776 | -876.0 | -691.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -22.45 | 78.59 | -9.11 | 159.65 | 0.4227 | -683.0 | -486.6 | |
| 0.77 | 10.16 | 0.42 | 5.50 | -21.14 | 78.64 | -9.06 | 158.54 | 0.4030 | -1069.8 | -835.1 | |
| 0.00 | 2.48 | 0.00 | 1.35 | -22.55 | 78.35 | -9.34 | 159.27 | 0.4254 | -670.0 | -459.1 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -21.71 | 78.22 | -9.48 | 158.21 | 0.4139 | -907.0 | -761.3 | |
| 1.11 | 6.83 | 0.60 | 3.72 | -21.94 | 78.14 | -9.56 | 158.26 | 0.4177 | -981.3 | -665.5 | |
| 0.00 | 3.42 | 0.00 | 1.86 | -21.52 | 77.94 | -9.76 | 157.45 | 0.4128 | -836.0 | -742.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -19.77 | 78.05 | -9.64 | 155.83 | 0.3867 | -430.0 | -358.7 | |
| 0.00 | 9.65 | 0.00 | 5.21 | -20.53 | 77.94 | -9.75 | 156.43 | 0.3984 | -266.0 | -329.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.43 | 77.72 | -9.98 | 156.90 | 0.4128 | -810.0 | -657.9 | |
| 0.00 | 3.07 | 0.00 | 1.67 | -21.68 | 77.54 | -10.16 | 156.80 | 0.4176 | -895.0 | -795.9 | |
| 0.00 | 2.90 | 0.00 | 1.57 | -20.50 | 77.50 | -10.20 | 155.45 | 0.4009 | -748.0 | -634.6 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -21.65 | 77.28 | -10.41 | 156.25 | 0.4188 | -798.0 | -613.9 | |
| 0.00 | 3.59 | 0.00 | 1.95 | -21.27 | 77.28 | -10.42 | 155.83 | 0.4133 | -983.0 | -870.7 | |
| 0.60 | 238.56 | 0.32 | 128.37 | -19.55 | 77.30 | -10.39 | 153.94 | 0.3886 | -1206.4 | -547.3 | |
| 0.68 | -74.00 | 0.37 | -74.00 | -20.31 | 77.16 | -10.54 | 154.52 | 0.4005 | -972.5 | 999999 | |
| 0.43 | 44.42 | 0.23 | 24.10 | -21.68 | 76.99 | -10.71 | 155.69 | 0.4212 | -872.2 | -731.4 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -22.94 | 76.89 | -10.81 | 156.77 | 0.4397 | -531.0 | -419.5 | |
| 8.54 | -74.00 | 4.60 | -74.00 | -20.00 | 77.08 | -10.61 | 154.00 | 0.3965 | -1138.7 | 999999 | |
| 1.37 | 13.67 | 0.75 | 7.51 | -22.49 | 76.80 | -10.90 | 156.15 | 0.4338 | -726.7 | -609.1 | |
| 0.00 | 3.33 | 0.00 | 1.82 | -22.10 | 76.83 | -10.87 | 155.81 | 0.4282 | -640.0 | -493.8 | |
| 1.88 | -76.00 | 1.02 | -76.00 | -20.66 | 76.91 | -10.79 | 154.40 | 0.4072 | -1074.2 | 999999 | |
| 24.26 | -74.00 | 13.07 | -74.00 | -19.78 | 76.87 | -10.82 | 153.29 | 0.3949 | -1248.1 | 999999 | |
| 8.71 | -74.00 | 4.68 | -74.00 | -19.34 | 76.68 | -11.02 | 152.34 | 0.3901 | -1343.4 | 999999 | |
| 8.63 | -74.00 | 4.67 | -74.00 | -20.22 | 76.52 | -11.17 | 153.10 | 0.4037 | -883.3 | 999999 | |
| 7.86 | -74.00 | 4.23 | -74.00 | -19.62 | 76.53 | -11.16 | 152.39 | 0.3952 | -1097.6 | 999999 | |
| 1.28 | 4.53 | 0.70 | 2.46 | -20.70 | 76.36 | -11.34 | 153.33 | 0.4115 | -977.5 | -828.7 | |
| 1.54 | 15.46 | 0.84 | 8.43 | -21.24 | 76.22 | -11.48 | 153.68 | 0.4201 | -832.2 | -651.2 | |
| 1.79 | -87.00 | 0.98 | -87.00 | -21.01 | 76.04 | -11.66 | 153.08 | 0.4183 | -973.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -24.04 | 75.74 | -11.96 | 155.74 | 0.4624 | -817.0 | -667.6 | |
| 0.00 | 6.32 | 0.00 | 3.44 | -20.73 | 76.00 | -11.70 | 152.66 | 0.4146 | -870.0 | -666.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
