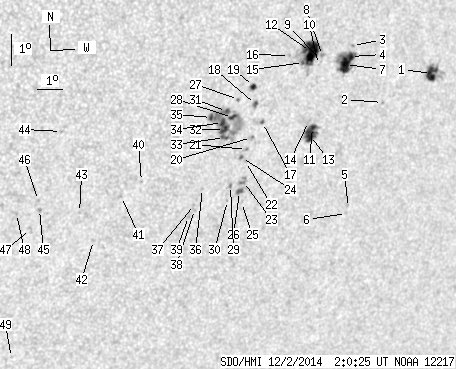

SDO HMI 2014-12-02 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.02 | 224.89 | 57.39 | 148.60 | -16.53 | 124.07 | 38.02 | 243.32 | 0.6627 | 181.9 | 27.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.57 | 20.42 | 6.85 | 14.65 | -15.60 | 129.83 | 43.79 | 247.33 | 0.7246 | 797.2 | 289.7 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -16.48 | 128.00 | 41.96 | 245.42 | 0.7073 | 511.0 | 499.2 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -14.70 | 126.34 | 40.30 | 247.14 | 0.6813 | -718.0 | -603.3 | |
| 4.02 | 30.24 | 2.71 | 20.40 | -15.04 | 126.34 | 40.29 | 246.66 | 0.6825 | -866.5 | -484.8 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -19.75 | 127.54 | 41.49 | 240.87 | 0.7161 | 471.0 | 530.0 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -19.94 | 127.51 | 41.47 | 240.61 | 0.7168 | 432.0 | 302.8 | |
| 11.70 | -4.00 | 7.90 | -4.00 | -15.29 | 126.19 | 40.15 | 246.26 | 0.6818 | -878.3 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.36 | -15.00 | 125.21 | 39.17 | 246.21 | 0.6690 | 462.0 | 186.9 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -15.15 | 125.21 | 39.16 | 245.99 | 0.6696 | 328.0 | 261.2 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -15.27 | 125.11 | 39.07 | 245.78 | 0.6690 | 217.0 | 236.7 | |
| 2.90 | 17.86 | 1.96 | 12.04 | -17.22 | 125.34 | 39.29 | 243.16 | 0.6802 | 703.5 | 414.2 | |
| 24.52 | 42.80 | 16.17 | 28.22 | -14.87 | 124.71 | 38.66 | 246.16 | 0.6625 | 810.7 | 392.3 | |
| 9.65 | -11.00 | 6.51 | -11.00 | -17.47 | 125.32 | 39.27 | 242.81 | 0.6812 | 730.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.09 | -17.04 | 125.13 | 39.08 | 243.32 | 0.6770 | 333.0 | 363.1 | |
| 0.85 | -12.00 | 0.56 | -12.00 | -15.21 | 124.51 | 38.46 | 245.58 | 0.6615 | 770.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.78 | -14.99 | 123.91 | 37.87 | 245.61 | 0.6534 | 804.0 | 691.3 | |
| 0.68 | 1.71 | 0.45 | 1.12 | -17.05 | 123.32 | 37.27 | 242.34 | 0.6560 | 550.2 | 402.7 | |
| 1.20 | 2.82 | 0.78 | 1.83 | -16.49 | 122.92 | 36.87 | 242.92 | 0.6485 | -828.7 | -615.8 | |
| 2.31 | 3.84 | 1.49 | 2.48 | -15.93 | 122.72 | 36.67 | 243.62 | 0.6434 | 771.9 | 563.5 | |
| 0.00 | 1.71 | 0.00 | 1.12 | -17.51 | 123.00 | 36.95 | 241.51 | 0.6546 | 804.0 | 656.0 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -17.88 | 122.89 | 36.85 | 240.92 | 0.6554 | 851.0 | 775.5 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -18.26 | 122.95 | 36.90 | 240.43 | 0.6579 | 734.0 | 627.0 | |
| 0.00 | 4.36 | 0.00 | 2.87 | -18.89 | 123.03 | 36.98 | 239.60 | 0.6622 | 558.0 | 602.1 | |
| 0.51 | 1.71 | 0.34 | 1.12 | -18.13 | 122.76 | 36.71 | 240.50 | 0.6551 | 821.0 | 755.5 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -19.55 | 123.12 | 37.08 | 238.75 | 0.6669 | 380.0 | 346.2 | |
| 1.96 | 3.76 | 1.30 | 2.48 | -19.20 | 122.95 | 36.91 | 239.13 | 0.6631 | 728.6 | 566.1 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -16.32 | 122.23 | 36.18 | 242.77 | 0.6395 | -535.0 | -462.9 | |
| 2.56 | 59.98 | 1.65 | 38.56 | -16.88 | 122.12 | 36.08 | 241.90 | 0.6411 | -613.0 | -232.2 | |
| 0.00 | 1.62 | 0.00 | 1.06 | -19.01 | 122.55 | 36.50 | 239.15 | 0.6575 | 795.0 | 745.1 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -19.48 | 122.55 | 36.51 | 238.50 | 0.6601 | 711.0 | 618.9 | |
| 1.71 | -28.00 | 1.10 | -28.00 | -16.69 | 121.85 | 35.80 | 242.02 | 0.6369 | -909.3 | 999999 | |
| 4.87 | -28.00 | 3.13 | -28.00 | -17.25 | 121.90 | 35.85 | 241.24 | 0.6404 | -750.6 | 999999 | |
| 1.71 | -28.00 | 1.10 | -28.00 | -17.50 | 121.95 | 35.91 | 240.92 | 0.6424 | -704.2 | 999999 | |
| 3.42 | -28.00 | 2.19 | -28.00 | -17.03 | 121.77 | 35.73 | 241.48 | 0.6377 | -970.9 | 999999 | |
| 1.88 | -28.00 | 1.20 | -28.00 | -16.87 | 121.32 | 35.27 | 241.44 | 0.6315 | 623.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -19.09 | 121.49 | 35.44 | 238.37 | 0.6459 | 685.0 | 487.7 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -19.59 | 121.30 | 35.26 | 237.56 | 0.6467 | 649.0 | 591.0 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -19.75 | 121.34 | 35.30 | 237.36 | 0.6481 | 734.0 | 642.5 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -19.97 | 121.17 | 35.12 | 236.94 | 0.6475 | 706.0 | 591.7 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -18.85 | 119.12 | 33.07 | 237.13 | 0.6172 | -418.0 | -322.9 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -19.31 | 118.47 | 32.43 | 235.99 | 0.6128 | -657.0 | -459.9 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -20.70 | 117.75 | 31.70 | 233.47 | 0.6141 | -516.0 | -310.2 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -19.81 | 117.03 | 30.99 | 234.17 | 0.5997 | -450.0 | -478.6 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -17.26 | 115.88 | 29.83 | 237.06 | 0.5683 | -795.0 | -638.9 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -19.70 | 115.55 | 29.51 | 233.10 | 0.5820 | -788.0 | -644.5 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -19.41 | 115.46 | 29.41 | 233.44 | 0.5789 | -617.0 | -465.5 | |
| 0.00 | 2.82 | 0.00 | 1.72 | -20.33 | 115.36 | 29.31 | 232.02 | 0.5846 | -588.0 | -549.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -19.82 | 114.75 | 28.70 | 232.23 | 0.5738 | -735.0 | -640.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -24.45 | 115.61 | 29.57 | 226.62 | 0.6204 | -591.0 | -416.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
