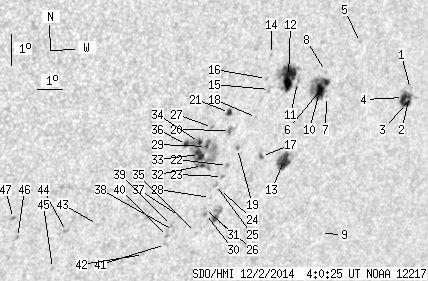

SDO HMI 2014-12-02 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.77 | 225.08 | 50.87 | 151.18 | -16.46 | 124.21 | 39.26 | 244.11 | 0.6766 | 286.3 | 25.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.12 | -15.26 | 130.03 | 45.08 | 248.28 | 0.7377 | 280.0 | 357.8 | |
| 1.62 | 16.58 | 1.19 | 12.11 | -15.48 | 130.05 | 45.10 | 248.00 | 0.7386 | 671.3 | 442.7 | |
| 3.85 | -2.00 | 2.81 | -2.00 | -15.69 | 129.98 | 45.03 | 247.69 | 0.7385 | 688.3 | 999999 | |
| 5.13 | -2.00 | 3.74 | -2.00 | -15.50 | 129.80 | 44.85 | 247.87 | 0.7359 | 851.0 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -13.79 | 127.54 | 42.59 | 249.34 | 0.7048 | 618.0 | 492.9 | |
| 2.65 | 32.90 | 1.82 | 22.55 | -15.01 | 126.42 | 41.47 | 247.23 | 0.6961 | -771.1 | -539.4 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -15.44 | 126.53 | 41.57 | 246.68 | 0.6989 | -272.0 | -226.5 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -14.67 | 126.30 | 41.35 | 247.65 | 0.6934 | -601.0 | -523.4 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -19.72 | 127.50 | 42.55 | 241.44 | 0.7271 | 516.0 | 441.6 | |
| 9.06 | -6.00 | 6.22 | -6.00 | -15.25 | 126.19 | 41.24 | 246.80 | 0.6943 | -908.2 | 999999 | |
| 0.00 | 4.36 | 0.00 | 2.94 | -14.99 | 125.24 | 40.29 | 246.74 | 0.6822 | 148.0 | 110.3 | |
| 22.47 | 39.22 | 15.08 | 26.29 | -14.81 | 124.84 | 39.89 | 246.83 | 0.6767 | 818.0 | 448.4 | |
| 12.13 | 19.74 | 8.31 | 13.52 | -17.44 | 125.28 | 40.33 | 243.39 | 0.6929 | 718.8 | 394.2 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -14.12 | 124.02 | 39.07 | 247.44 | 0.6642 | 625.0 | 612.2 | |
| 0.00 | 2.14 | 0.00 | 1.42 | -15.20 | 124.17 | 39.22 | 245.97 | 0.6704 | 661.0 | 632.2 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -14.86 | 123.98 | 39.02 | 246.36 | 0.6667 | 553.0 | 530.8 | |
| 0.77 | 1.97 | 0.52 | 1.33 | -17.27 | 124.34 | 39.39 | 243.16 | 0.6815 | 720.9 | 636.6 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -16.06 | 123.85 | 38.90 | 244.60 | 0.6703 | 403.0 | 222.4 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -17.01 | 123.32 | 38.37 | 243.00 | 0.6685 | 650.0 | 578.8 | |
| 0.00 | 3.85 | 0.00 | 2.53 | -16.45 | 122.91 | 37.96 | 243.58 | 0.6611 | -854.0 | -673.5 | |
| 2.05 | 3.33 | 1.34 | 2.18 | -15.89 | 122.75 | 37.80 | 244.29 | 0.6566 | 828.1 | 664.5 | |
| 0.00 | 1.62 | 0.00 | 1.08 | -17.54 | 123.05 | 38.10 | 242.12 | 0.6680 | 868.0 | 665.9 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -17.88 | 122.94 | 37.99 | 241.59 | 0.6684 | 794.0 | 672.4 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -18.29 | 122.93 | 37.98 | 241.02 | 0.6703 | 726.0 | 600.1 | |
| 0.00 | 2.39 | 0.00 | 1.59 | -18.13 | 122.73 | 37.78 | 241.13 | 0.6672 | 709.0 | 739.7 | |
| 2.31 | 8.80 | 1.55 | 5.89 | -19.20 | 122.97 | 38.02 | 239.80 | 0.6754 | 699.0 | 531.4 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -16.35 | 122.19 | 37.24 | 243.34 | 0.6521 | -541.0 | -460.9 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -18.53 | 122.64 | 37.68 | 240.51 | 0.6682 | 693.0 | 617.3 | |
| 1.03 | 57.76 | 0.67 | 37.70 | -16.94 | 122.09 | 37.14 | 242.44 | 0.6538 | -720.6 | -259.8 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -19.03 | 122.57 | 37.62 | 239.79 | 0.6701 | 810.0 | 756.6 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -18.88 | 122.49 | 37.54 | 239.96 | 0.6683 | 679.0 | 618.0 | |
| 1.28 | -29.00 | 0.84 | -29.00 | -17.53 | 122.07 | 37.12 | 241.60 | 0.6566 | -660.1 | 999999 | |
| 6.66 | -29.00 | 4.34 | -29.00 | -17.18 | 121.87 | 36.92 | 241.97 | 0.6525 | -830.1 | 999999 | |
| 1.79 | -29.00 | 1.17 | -29.00 | -16.81 | 121.79 | 36.84 | 242.46 | 0.6496 | -800.3 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -19.63 | 122.33 | 37.38 | 238.84 | 0.6706 | 427.0 | 404.5 | |
| 1.97 | -29.00 | 1.27 | -29.00 | -16.87 | 121.30 | 36.35 | 242.10 | 0.6441 | 642.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.84 | -19.12 | 121.57 | 36.62 | 239.08 | 0.6593 | 709.0 | 560.9 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -19.56 | 121.45 | 36.50 | 238.40 | 0.6604 | 600.0 | 513.3 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -19.40 | 121.33 | 36.38 | 238.55 | 0.6581 | 788.0 | 664.1 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -19.75 | 121.26 | 36.31 | 238.03 | 0.6593 | 904.0 | 752.8 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -20.00 | 121.25 | 36.30 | 237.68 | 0.6607 | 766.0 | 648.1 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -20.31 | 120.48 | 35.53 | 236.76 | 0.6539 | 647.0 | 544.2 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -19.34 | 118.48 | 33.53 | 236.76 | 0.6254 | -554.0 | -442.2 | |
| 0.00 | 2.05 | 0.00 | 1.28 | -19.55 | 117.37 | 32.41 | 235.66 | 0.6141 | -771.0 | -647.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -20.72 | 117.11 | 32.16 | 233.81 | 0.6192 | -562.0 | -419.1 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -19.72 | 115.60 | 30.64 | 234.03 | 0.5951 | -810.0 | -667.4 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -19.12 | 115.33 | 30.37 | 234.69 | 0.5877 | -861.0 | -624.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
