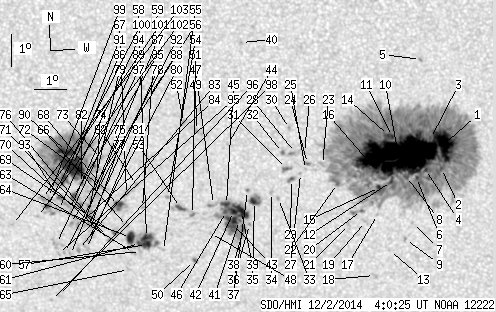

SDO HMI 2014-12-02 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 385.70 | 1613.34 | 204.76 | 856.00 | -19.83 | 84.50 | -0.45 | 179.27 | 0.3600 | 582.2 | 148.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.61 | 1098.24 | 18.26 | 580.06 | -19.07 | 88.54 | 3.59 | 189.89 | 0.3458 | 1375.8 | 414.7 | |
| 1.45 | -1.00 | 0.77 | -1.00 | -19.86 | 88.46 | 3.51 | 189.28 | 0.3583 | 722.8 | 999999 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -18.91 | 88.10 | 3.15 | 188.77 | 0.3421 | 1375.7 | 999999 | |
| 1.54 | -1.00 | 0.82 | -1.00 | -19.89 | 87.96 | 3.01 | 187.96 | 0.3576 | 924.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -16.45 | 87.75 | 2.80 | 188.99 | 0.3009 | -881.0 | -632.8 | |
| 1.37 | -1.00 | 0.73 | -1.00 | -20.14 | 87.68 | 2.73 | 187.14 | 0.3611 | 432.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.57 | 87.57 | 2.62 | 186.39 | 0.3840 | -737.0 | -555.8 | |
| 2.56 | -1.00 | 1.36 | -1.00 | -20.11 | 87.36 | 2.41 | 186.33 | 0.3600 | 426.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.12 | 87.36 | 2.41 | 185.72 | 0.3924 | -1002.0 | -806.1 | |
| 198.83 | -1.00 | 105.01 | -1.00 | -19.45 | 87.10 | 2.15 | 185.85 | 0.3487 | 1681.2 | 999999 | |
| 1.20 | -1.00 | 0.63 | -1.00 | -18.85 | 86.91 | 1.96 | 185.50 | 0.3386 | 1510.4 | 999999 | |
| 2.22 | -1.00 | 1.18 | -1.00 | -20.27 | 86.89 | 1.94 | 185.06 | 0.3618 | 644.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -22.47 | 86.85 | 1.90 | 184.45 | 0.3973 | 645.0 | 488.3 | |
| 2.82 | -1.00 | 1.48 | -1.00 | -18.82 | 86.78 | 1.83 | 185.16 | 0.3379 | 1385.0 | 999999 | |
| 2.48 | -1.00 | 1.32 | -1.00 | -20.46 | 86.51 | 1.56 | 184.04 | 0.3644 | 714.0 | 999999 | |
| 2.05 | -1.00 | 1.09 | -1.00 | -19.95 | 86.45 | 1.50 | 183.97 | 0.3560 | 901.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -21.32 | 86.46 | 1.51 | 183.73 | 0.3782 | -578.0 | -452.7 | |
| 0.00 | 2.73 | 0.00 | 1.48 | -23.28 | 86.38 | 1.43 | 183.22 | 0.4097 | 630.0 | 586.1 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -21.54 | 86.08 | 1.13 | 182.77 | 0.3815 | 667.0 | 482.7 | |
| 0.51 | -1.00 | 0.27 | -1.00 | -21.19 | 85.95 | 1.00 | 182.49 | 0.3757 | 913.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.63 | 85.54 | 0.59 | 181.44 | 0.3827 | 680.0 | 542.5 | |
| 0.77 | -1.00 | 0.41 | -1.00 | -20.33 | 85.19 | 0.24 | 180.62 | 0.3614 | 700.0 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.22 | -19.73 | 84.72 | -0.23 | 179.37 | 0.3515 | 236.0 | 216.6 | |
| 0.34 | 1.54 | 0.18 | 0.81 | -19.69 | 84.25 | -0.70 | 178.11 | 0.3512 | -833.8 | -630.1 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.88 | 84.18 | -0.77 | 177.95 | 0.3543 | -667.0 | -408.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.35 | 84.16 | -0.80 | 177.82 | 0.3455 | 585.0 | 508.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -20.01 | 84.03 | -0.93 | 177.55 | 0.3565 | -804.0 | -517.2 | |
| 0.00 | 5.13 | 0.00 | 2.70 | -19.35 | 83.87 | -1.08 | 177.05 | 0.3457 | -439.0 | -276.2 | |
| 1.20 | 3.50 | 0.63 | 1.86 | -20.20 | 83.74 | -1.21 | 176.83 | 0.3598 | -953.0 | -741.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -18.59 | 83.69 | -1.26 | 176.40 | 0.3335 | -763.0 | -659.3 | |
| 0.00 | 4.27 | 0.00 | 2.26 | -19.85 | 83.59 | -1.36 | 176.36 | 0.3543 | -1052.0 | -909.1 | |
| 0.51 | 1.71 | 0.27 | 0.90 | -19.35 | 83.47 | -1.48 | 175.93 | 0.3461 | -965.7 | -793.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -20.80 | 83.32 | -1.63 | 175.87 | 0.3700 | 866.0 | 775.8 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.61 | 83.11 | -1.85 | 175.27 | 0.3672 | 970.0 | 711.0 | |
| 4.96 | 10.08 | 2.64 | 5.38 | -20.90 | 82.56 | -2.39 | 173.98 | 0.3727 | 1086.5 | 874.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.63 | 82.39 | -2.56 | 173.78 | 0.3848 | 772.0 | 607.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.55 | 82.35 | -2.60 | 173.32 | 0.3674 | 1079.0 | 831.8 | |
| 2.39 | 72.63 | 1.28 | 38.92 | -21.76 | 82.20 | -2.75 | 173.35 | 0.3872 | 838.2 | 414.7 | |
| 10.85 | -38.00 | 5.80 | -38.00 | -21.22 | 82.15 | -2.81 | 173.05 | 0.3786 | 1241.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -15.92 | 82.24 | -2.71 | 170.99 | 0.2918 | 840.0 | 642.9 | |
| 0.77 | -38.00 | 0.41 | -38.00 | -21.50 | 82.08 | -2.88 | 172.98 | 0.3833 | 1105.1 | 999999 | |
| 5.38 | -38.00 | 2.88 | -38.00 | -21.22 | 81.89 | -3.06 | 172.42 | 0.3791 | 1185.2 | 999999 | |
| 15.29 | -38.00 | 8.20 | -38.00 | -21.60 | 81.85 | -3.10 | 172.47 | 0.3853 | 881.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.09 | 81.75 | -3.20 | 171.16 | 0.3452 | 659.0 | 449.2 | |
| 4.70 | -38.00 | 2.51 | -38.00 | -20.99 | 81.67 | -3.28 | 171.80 | 0.3760 | 1036.1 | 999999 | |
| 2.39 | -38.00 | 1.28 | -38.00 | -21.22 | 81.67 | -3.28 | 171.88 | 0.3796 | 829.1 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.87 | -20.99 | 81.26 | -3.69 | 170.79 | 0.3770 | 393.0 | 293.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -21.92 | 81.14 | -3.81 | 170.92 | 0.3921 | -194.0 | -125.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -18.65 | 80.79 | -4.16 | 168.30 | 0.3409 | -909.0 | -769.6 | |
| 0.77 | 2.14 | 0.42 | 1.16 | -22.79 | 80.60 | -4.35 | 170.07 | 0.4073 | -904.4 | -699.4 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -21.31 | 80.59 | -4.37 | 169.31 | 0.3840 | 783.0 | 682.8 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -18.40 | 80.39 | -4.56 | 167.05 | 0.3383 | -1048.0 | -825.9 | |
| 2.48 | 7.01 | 1.33 | 3.75 | -21.09 | 80.21 | -4.74 | 168.29 | 0.3816 | 1021.3 | 546.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.74 | 79.81 | -5.14 | 167.12 | 0.3775 | 564.0 | 586.9 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -22.46 | 79.62 | -5.33 | 167.71 | 0.4052 | -635.0 | -514.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.65 | 79.29 | -5.66 | 163.42 | 0.3310 | -816.0 | -620.2 | |
| 6.24 | 37.60 | 3.37 | 20.33 | -22.27 | 79.08 | -5.87 | 166.39 | 0.4042 | -958.2 | -693.7 | |
| 6.07 | -57.00 | 3.28 | -57.00 | -22.05 | 79.09 | -5.86 | 166.27 | 0.4006 | -1105.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -21.09 | 79.00 | -5.95 | 165.43 | 0.3861 | -698.0 | -553.3 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -22.50 | 78.88 | -6.07 | 166.09 | 0.4084 | -535.0 | -445.1 | |
| 1.79 | -57.00 | 0.97 | -57.00 | -22.24 | 78.86 | -6.09 | 165.88 | 0.4045 | -1040.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.36 | 78.84 | -6.11 | 164.52 | 0.3754 | -805.0 | -687.7 | |
| 0.00 | 2.65 | 0.00 | 1.44 | -22.53 | 78.65 | -6.30 | 165.61 | 0.4098 | -681.0 | -568.0 | |
| 6.75 | -57.00 | 3.65 | -57.00 | -22.05 | 78.58 | -6.37 | 165.13 | 0.4027 | -1069.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -23.08 | 78.46 | -6.49 | 165.57 | 0.4190 | -512.0 | -397.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.69 | 78.50 | -6.45 | 164.70 | 0.3976 | -868.0 | -667.7 | |
| 0.00 | 3.08 | 0.00 | 1.65 | -20.67 | 78.51 | -6.44 | 163.97 | 0.3818 | -809.0 | -854.8 | |
| 5.04 | 11.19 | 2.71 | 6.01 | -21.02 | 78.24 | -6.71 | 163.62 | 0.3884 | -1151.3 | -787.7 | |
| 0.60 | 3.33 | 0.32 | 1.80 | -21.92 | 78.07 | -6.88 | 163.91 | 0.4029 | -1004.6 | -813.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.14 | 77.90 | -7.05 | 163.70 | 0.4071 | -751.0 | -714.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -22.02 | 77.84 | -7.11 | 163.48 | 0.4054 | -646.0 | -535.0 | |
| 0.00 | 4.10 | 0.00 | 2.20 | -20.45 | 77.76 | -7.19 | 162.03 | 0.3819 | -705.0 | -482.4 | |
| 0.00 | 2.99 | 0.00 | 1.59 | -19.54 | 77.77 | -7.18 | 161.23 | 0.3678 | -1050.0 | -874.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -20.17 | 77.58 | -7.37 | 161.36 | 0.3785 | -388.0 | -374.9 | |
| 0.00 | 9.06 | 0.00 | 4.86 | -20.68 | 77.43 | -7.52 | 161.46 | 0.3870 | -451.0 | -633.0 | |
| 0.51 | 1.62 | 0.28 | 0.88 | -21.38 | 77.30 | -7.66 | 161.77 | 0.3983 | -937.5 | -797.1 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -21.82 | 77.27 | -7.68 | 162.09 | 0.4052 | -591.0 | -531.5 | |
| 0.00 | 4.96 | 0.00 | 2.68 | -21.66 | 77.25 | -7.70 | 161.91 | 0.4029 | -790.0 | -703.4 | |
| 0.00 | 3.42 | 0.00 | 1.84 | -21.22 | 77.27 | -7.68 | 161.58 | 0.3960 | -859.0 | -783.4 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -22.14 | 77.19 | -7.76 | 162.17 | 0.4104 | -737.0 | -640.5 | |
| 0.00 | 4.61 | 0.00 | 2.51 | -22.40 | 77.14 | -7.81 | 162.28 | 0.4145 | -547.0 | -491.2 | |
| 0.68 | 205.50 | 0.37 | 109.66 | -20.33 | 77.10 | -7.85 | 160.39 | 0.3834 | -992.2 | -584.4 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -22.43 | 76.88 | -8.07 | 161.76 | 0.4163 | -830.0 | -730.7 | |
| 0.00 | 3.33 | 0.00 | 1.80 | -21.63 | 76.93 | -8.02 | 161.19 | 0.4040 | -999.0 | -786.4 | |
| 2.82 | 13.67 | 1.52 | 7.36 | -20.74 | 76.82 | -8.13 | 160.14 | 0.3912 | -1105.0 | -904.7 | |
| 33.84 | -82.00 | 18.08 | -82.00 | -19.76 | 76.84 | -8.11 | 159.24 | 0.3763 | -1214.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -22.60 | 76.61 | -8.34 | 161.33 | 0.4201 | -652.0 | -516.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.60 | 76.67 | -8.28 | 160.61 | 0.4049 | -713.0 | -649.4 | |
| 0.00 | 5.72 | 0.00 | 3.09 | -21.15 | 76.67 | -8.28 | 160.19 | 0.3982 | -684.0 | -751.3 | |
| 9.48 | -82.00 | 5.05 | -82.00 | -19.32 | 76.67 | -8.28 | 158.40 | 0.3706 | -1367.1 | 999999 | |
| 4.02 | -82.00 | 2.15 | -82.00 | -20.17 | 76.56 | -8.39 | 159.02 | 0.3841 | -929.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.53 | 76.42 | -8.53 | 160.88 | 0.4201 | -640.0 | -586.4 | |
| 1.28 | 3.67 | 0.69 | 1.98 | -20.77 | 76.37 | -8.58 | 159.18 | 0.3942 | -1031.5 | -885.4 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -21.15 | 76.31 | -8.64 | 159.42 | 0.4002 | -558.0 | -771.3 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -22.56 | 76.23 | -8.72 | 160.51 | 0.4216 | -505.0 | -447.9 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -23.92 | 76.13 | -8.82 | 161.45 | 0.4422 | -671.0 | -555.6 | |
| 0.00 | 6.15 | 0.00 | 3.35 | -22.24 | 76.18 | -8.77 | 160.14 | 0.4171 | -680.0 | -571.7 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -24.05 | 75.90 | -9.06 | 161.09 | 0.4453 | -664.0 | -545.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -20.77 | 76.02 | -8.93 | 158.41 | 0.3962 | -871.0 | -748.9 | |
| 1.88 | 7.18 | 1.02 | 3.88 | -21.06 | 75.97 | -8.98 | 158.58 | 0.4008 | -931.1 | -673.8 | |
| 0.00 | 3.33 | 0.00 | 1.80 | -20.80 | 75.82 | -9.13 | 158.02 | 0.3979 | -849.0 | -714.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -21.38 | 75.63 | -9.32 | 158.17 | 0.4075 | -738.0 | -537.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.63 | 74.80 | -10.15 | 156.72 | 0.4163 | -796.0 | -654.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
