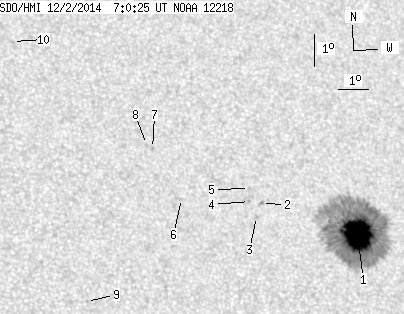

SDO HMI 2014-12-02 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.67 | 370.51 | 34.98 | 213.37 | 16.66 | 109.93 | 26.62 | 302.74 | 0.5125 | -1050.9 | -353.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.67 | 359.06 | 34.98 | 206.98 | 16.61 | 110.10 | 26.79 | 302.47 | 0.5140 | -1510.0 | -388.7 | |
| 0.00 | 1.88 | 0.00 | 1.06 | 17.58 | 106.96 | 23.65 | 307.26 | 0.4824 | 713.0 | 630.3 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 17.18 | 106.74 | 23.42 | 306.80 | 0.4763 | 746.0 | 666.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 17.65 | 106.56 | 23.25 | 307.81 | 0.4781 | 966.0 | 845.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 18.05 | 106.62 | 23.31 | 308.44 | 0.4823 | 789.0 | 538.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 17.75 | 104.30 | 20.98 | 310.71 | 0.4518 | 671.0 | 570.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 19.31 | 103.53 | 20.22 | 314.39 | 0.4583 | 732.0 | 527.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.43 | 103.35 | 20.03 | 314.85 | 0.4575 | 726.0 | 563.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 14.61 | 100.87 | 17.56 | 309.46 | 0.3798 | 576.0 | 488.5 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 22.70 | 99.29 | 15.98 | 325.86 | 0.4544 | 681.0 | 446.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
