SDO HMI 2014-12-02 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.52 | 168.51 | 20.16 | 83.85 | 4.38 | 84.89 | 1.58 | 283.09 | 0.0883 | -310.3 | -279.8 | |
|
previous
or next observation for the same group /

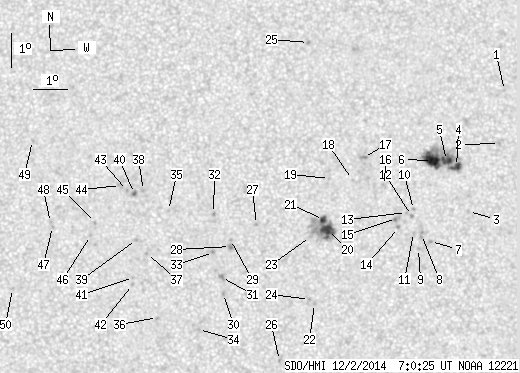

back to the solar disc SDO HMI 2014-12-02 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.51 | 7.67 | 89.67 | 6.35 | 317.78 | 0.1639 | -879.0 | -731.2 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 6.10 | 89.49 | 6.18 | 311.14 | 0.1428 | -916.0 | -683.5 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.08 | 88.55 | 5.23 | 302.71 | 0.1087 | -830.0 | -619.1 | |
| 4.53 | 61.52 | 2.26 | 30.68 | 5.42 | 88.20 | 4.89 | 313.90 | 0.1183 | -1073.6 | -589.6 | |
| 5.90 | -4.00 | 2.94 | -4.00 | 5.60 | 87.91 | 4.59 | 316.76 | 0.1169 | -1269.9 | 999999 | |
| 15.64 | -4.00 | 7.79 | -4.00 | 5.60 | 87.49 | 4.18 | 319.47 | 0.1120 | -1256.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 3.20 | 87.41 | 4.10 | 301.06 | 0.0837 | -963.0 | -796.5 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 3.41 | 87.15 | 3.83 | 304.93 | 0.0818 | -1063.0 | -875.6 | |
| 0.00 | 0.85 | 0.00 | 0.42 | 2.99 | 87.06 | 3.74 | 301.14 | 0.0765 | -868.0 | -675.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 4.15 | 86.92 | 3.60 | 313.53 | 0.0868 | -998.0 | -782.4 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.47 | 86.91 | 3.60 | 307.26 | 0.0791 | -901.0 | -636.7 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 3.97 | 86.85 | 3.54 | 312.48 | 0.0839 | -1153.0 | -985.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 4.06 | 86.71 | 3.39 | 314.48 | 0.0831 | -877.0 | -703.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 3.61 | 86.47 | 3.15 | 312.46 | 0.0748 | -1019.0 | -795.6 | |
| 0.00 | 3.08 | 0.00 | 1.53 | 3.88 | 86.41 | 3.10 | 315.53 | 0.0773 | -1131.0 | -923.9 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 4.86 | 86.06 | 2.74 | 326.44 | 0.0867 | -827.0 | -643.7 | |
| 0.00 | 2.99 | 0.00 | 1.49 | 5.69 | 85.44 | 2.12 | 336.87 | 0.0943 | -1183.0 | -939.4 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.04 | 85.11 | 1.80 | 337.42 | 0.0816 | -759.0 | -565.2 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 5.07 | 84.43 | 1.11 | 345.64 | 0.0784 | -788.0 | -575.1 | |
| 10.60 | 40.85 | 5.26 | 20.26 | 3.53 | 84.36 | 1.05 | 339.44 | 0.0523 | -1204.6 | -619.7 | |
| 3.25 | -20.00 | 1.61 | -20.00 | 3.85 | 84.25 | 0.93 | 343.40 | 0.0570 | -1149.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 1.37 | 83.98 | 0.66 | 313.90 | 0.0161 | -1020.0 | -786.5 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.35 | 83.86 | 0.55 | 348.23 | 0.0468 | -195.0 | -209.6 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 1.49 | 83.83 | 0.51 | 325.77 | 0.0160 | -853.0 | -694.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.11 | 83.81 | 0.50 | 356.62 | 0.1466 | -982.0 | -786.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | -0.31 | 82.94 | -0.38 | 160.27 | 0.0195 | -1013.0 | -800.7 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 3.71 | 82.26 | -1.05 | 19.46 | 0.0553 | 888.0 | 721.4 | |
| 0.00 | 2.73 | 0.00 | 1.36 | 3.06 | 81.49 | -1.82 | 38.07 | 0.0517 | 1124.0 | 935.8 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 3.27 | 81.49 | -1.82 | 35.72 | 0.0546 | 767.0 | 647.7 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 1.67 | 81.29 | -2.03 | 65.26 | 0.0392 | 997.0 | 822.6 | |
| 0.00 | 3.08 | 0.00 | 1.53 | 2.14 | 81.23 | -2.09 | 56.00 | 0.0441 | 1075.0 | 906.8 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 4.04 | 80.99 | -2.33 | 35.13 | 0.0707 | 918.0 | 897.0 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 2.88 | 80.99 | -2.33 | 47.25 | 0.0554 | 1111.0 | 874.6 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 0.61 | 80.55 | -2.77 | 92.66 | 0.0486 | 863.0 | 701.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 4.12 | 79.65 | -3.66 | 47.12 | 0.0873 | 959.0 | 752.1 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 0.96 | 79.33 | -3.98 | 86.72 | 0.0699 | 1072.0 | 744.1 | |
| 0.00 | 0.85 | 0.00 | 0.42 | 2.85 | 79.00 | -4.31 | 63.77 | 0.0841 | 1064.0 | 845.2 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 4.72 | 78.91 | -4.41 | 47.79 | 0.1039 | 974.0 | 820.6 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.27 | 78.71 | -4.61 | 61.14 | 0.0920 | 859.0 | 762.9 | |
| 0.60 | 1.88 | 0.30 | 0.94 | 4.63 | 78.64 | -4.67 | 50.09 | 0.1064 | 1239.6 | 995.9 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 2.14 | 78.62 | -4.70 | 73.25 | 0.0858 | 854.0 | 697.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 1.94 | 78.59 | -4.72 | 75.68 | 0.0854 | 885.0 | 585.9 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.72 | 78.43 | -4.88 | 50.68 | 0.1102 | 997.0 | 788.9 | |
| 0.00 | 3.33 | 0.00 | 1.66 | 4.87 | 78.22 | -5.09 | 50.82 | 0.1146 | 948.0 | 738.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.77 | 77.48 | -5.83 | 62.39 | 0.1149 | 945.0 | 833.4 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 3.39 | 77.34 | -5.98 | 65.99 | 0.1143 | 951.0 | 764.6 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 3.65 | 76.20 | -7.11 | 67.58 | 0.1343 | 883.0 | 761.0 | |
| 0.00 | 0.77 | 0.00 | 0.38 | 3.77 | 76.14 | -7.17 | 66.94 | 0.1360 | 760.0 | 653.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 6.20 | 75.58 | -7.73 | 54.53 | 0.1651 | 761.0 | 633.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 1.82 | 75.02 | -8.30 | 82.49 | 0.1461 | 863.0 | 663.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
