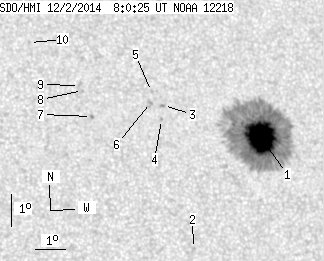

SDO HMI 2014-12-02 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.07 | 373.06 | 34.81 | 215.84 | 16.63 | 109.96 | 27.19 | 302.18 | 0.5193 | -1044.8 | -352.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-02 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.07 | 359.90 | 34.81 | 208.45 | 16.60 | 110.12 | 27.35 | 301.97 | 0.5210 | -1498.4 | -391.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 13.23 | 107.35 | 24.58 | 298.24 | 0.4616 | 404.0 | 373.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 17.60 | 106.90 | 24.13 | 306.79 | 0.4885 | 730.0 | 617.0 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 17.17 | 106.77 | 24.00 | 306.17 | 0.4834 | 811.0 | 659.8 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 18.04 | 106.55 | 23.78 | 307.91 | 0.4880 | 553.0 | 486.7 | |
| 0.00 | 2.05 | 0.00 | 1.16 | 17.70 | 106.47 | 23.70 | 307.41 | 0.4841 | 895.0 | 784.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 17.28 | 104.43 | 21.66 | 309.03 | 0.4556 | 933.0 | 806.6 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 18.08 | 104.23 | 21.46 | 310.69 | 0.4607 | 691.0 | 497.6 | |
| 0.00 | 2.91 | 0.00 | 1.62 | 18.24 | 104.15 | 21.38 | 311.06 | 0.4612 | 668.0 | 419.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 19.59 | 102.66 | 19.89 | 315.30 | 0.4576 | 702.0 | 544.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
